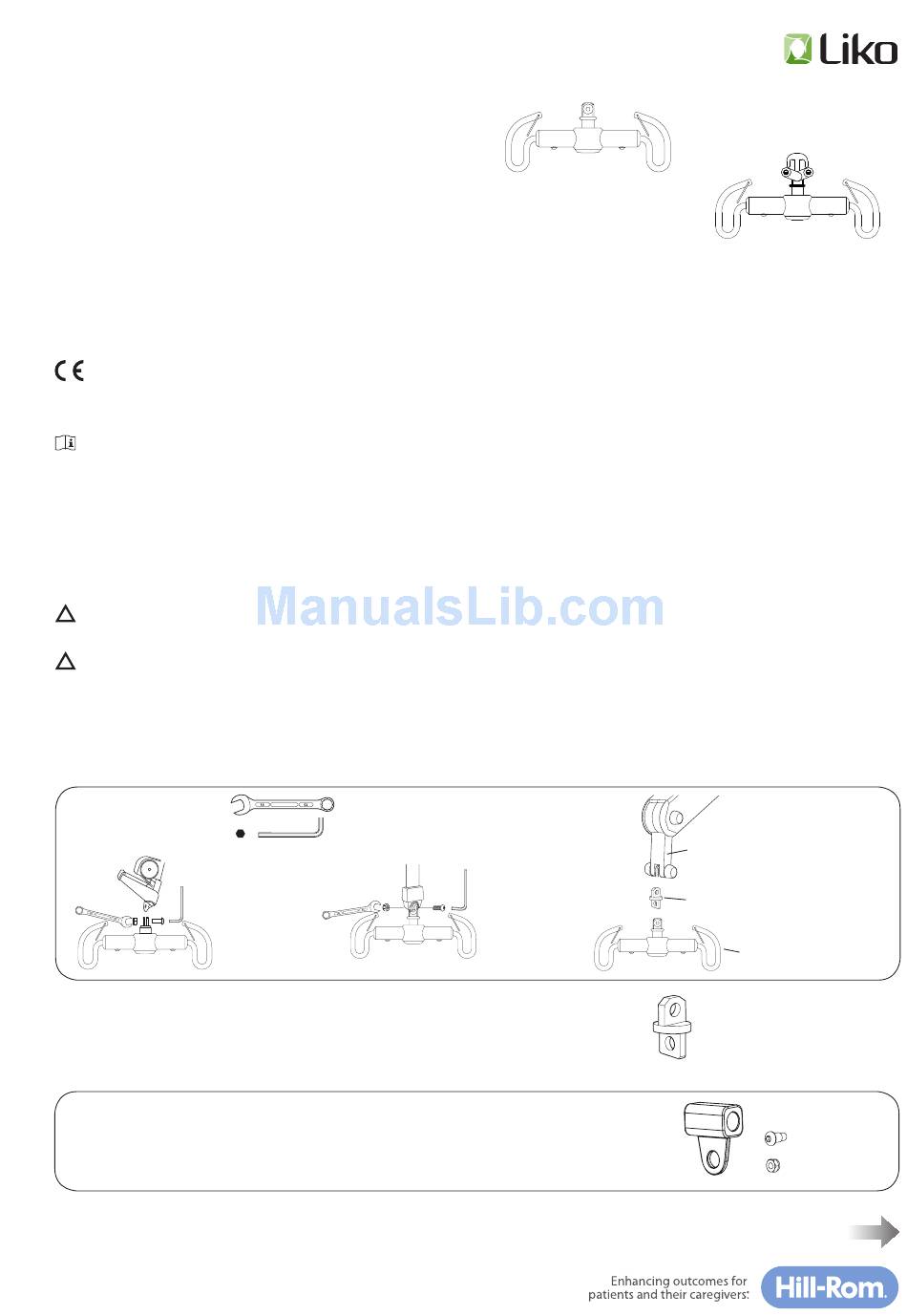

SlingBar Mini 220
Instruction Guide
Applies to following model:
SlingBar Mini 220
SlingBar Mini 220 R2R
The SlingBar Mini 220 comes in two versions and with the intended use in lifting small patients, for example in a Liko™ TeddySling Low Mod 10.
SlingBar Mini 220 (Prod.No 3156005) can be used combined with a Liko ™ mobile lift or a Liko ™ overhead lift, with fixed assembly.
The SlingBar Mini 220 R2R (Prod.No 3156006) version is designed only for Room-to-Room transfers in combination with Likorall™ overhead lifts,
specified at page 2.
SlingBar Mini 220 complies with the requirements of EN ISO 10535.
Maximum load: 205 kg / 450 Ibs.
IMPORTANT!
Read the instruction guide for both the patient lift and lifting accessories before use. Lifting and transferring a person always involves a
certain level of risk. It is important to completely understand the contents of the instruction guide. The equipment should be used by
trained personnel only. Please contact your Hill-Rom distributor in the event of any uncertainties or questions.
Different maximum loads may apply to different products on the assembled lift system: lift, sling bar, sling and any other accessories used.
For the assembled lift system, the maximum load is always the lowest maximum load rating for any of the components. Study the markings
on the lift and lifting accessories or contact your Hill-Rom representative in the event of questions.
Before lifting, always make sure that the sling's strap loops are correctly fastened to the sling bar hooks when the sling strap is
extended, but before the patient is lifted from the underlying surface.
For safety, load must be applied to all sling bar hooks during the lift!
Fixed assembly to: Likorall™ 242 S overhead lift, Golvo™ mobile lift and (Viking™ mobile lift, Uno™ mobile lift)*
*
An Adapter 12 shall always be installed between the FlexLink and the Slingbar mini 220 to fixed assembly of Viking™ mobile lift and
Uno™ mobile lift, see below
Tools required:
1 x
1 x
Adapter 12 mm,
See applicable assembly instruction!
Fixed assembly to: LikoGuard™ overhead lift
Require, Fixed kit 4,
NOTE! Shall be assembled by personnel authorized by Hill-Rom!
7EN160200 Rev. 1
ENGLISH 2015-08-11
Prod. no. 3156005
Prod. no. 3156006
Product Description
Safety Instructions
Assembly
13 mm (1/2 inch.)
8 mm (5/16 inch.)
Prod. No. 2016504
Prod. no. 3308860
(Prod. no. 3156005)
FlexLink
Adapter 12 mm
Continues on next page
(Prod. no. 3156006)
SlingBar Mini 220
