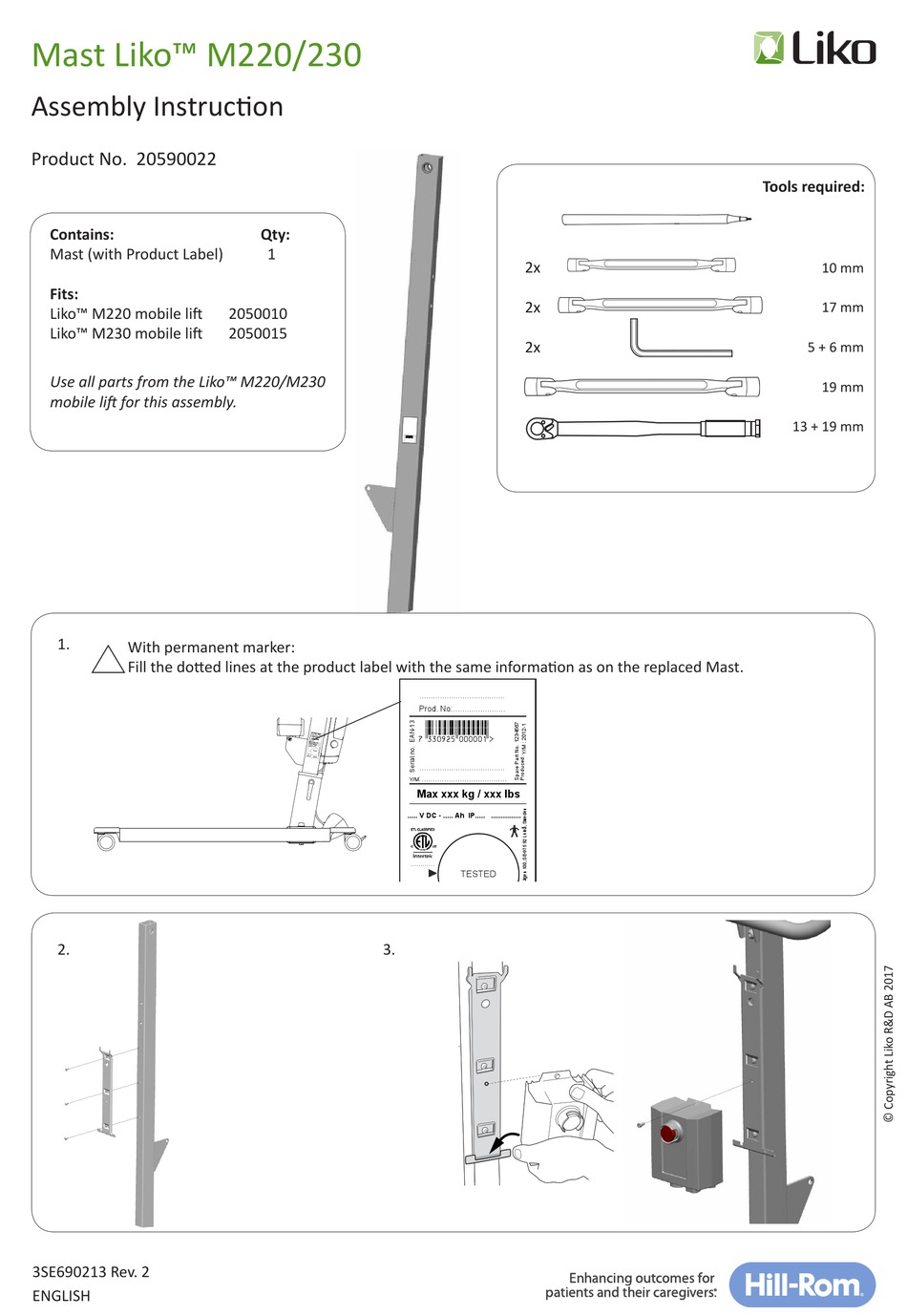

Mast Liko™ M220/230
Assembly Instruction
Product No. 20590022
Contains:
Mast (with Product Label)
Fits:
Liko™ M220 mobile lift
Liko™ M230 mobile lift
Use all parts from the Liko™ M220/M230
mobile lift for this assembly.
1.
With permanent marker:
Fill the dotted lines at the product label with the same information as on the replaced Mast.
2.
3SE690213 Rev. 2
ENGLISH
Qty:
1
2050010
2050015
3.
2x
2x
2x
?=; ; ; ; æ ; æ ; – ; æ ; æ ? æ = ƒ; æ : æ ; € +÷ + ‹; € :æ ; æ ; æ ; € :æ ; € :æ ; € :æ ; € :æ ; € :æ ; „ *„. æ ; æ ? =
?=; ; ; ; Ó ; Ó ; – ; æ ; æ ? æ = ƒ; æ : æ ; € +÷ + ‹; € :æ ; Ó ; Ó ; € :æ ; € :æ ; € :æ ; € :æ ; € :æ ; „ *„. Ó ; Ó ? =
7; ; ; ; ; ; ; 3 30925; ; ; ; ; 0 00001; ; ; <
Tools required:
10 mm
17 mm
5 + 6 mm
19 mm
13 + 19 mm
Advertisement
Related Manuals for Liko M220
Summary of Contents for Liko M220
- Page 1 Liko™ M220 mobile lift 2050010 Liko™ M230 mobile lift 2050015 5 + 6 mm Use all parts from the Liko™ M220/M230 19 mm mobile lift for this assembly. 13 + 19 mm With permanent marker: Fill the dotted lines at the product label with the same information as on the replaced Mast.
- Page 2 The screw must go all the way through the nut. 5. Assemble the handle. 6. Tightening torque: 9Nm ± 3Nm (80 ± 26 in lbf) Make sure the Actuator is attached according to the picture Assembly Instruction Mast M220/230 • 3SE690213 Rev. 2 2(3) www.hill-rom.com www.liko.com...
- Page 3 - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko™ spare parts. Assembly Instruction Mast M220/230 • 3SE690213 Rev. 2 3(3) www.hill-rom.com...
