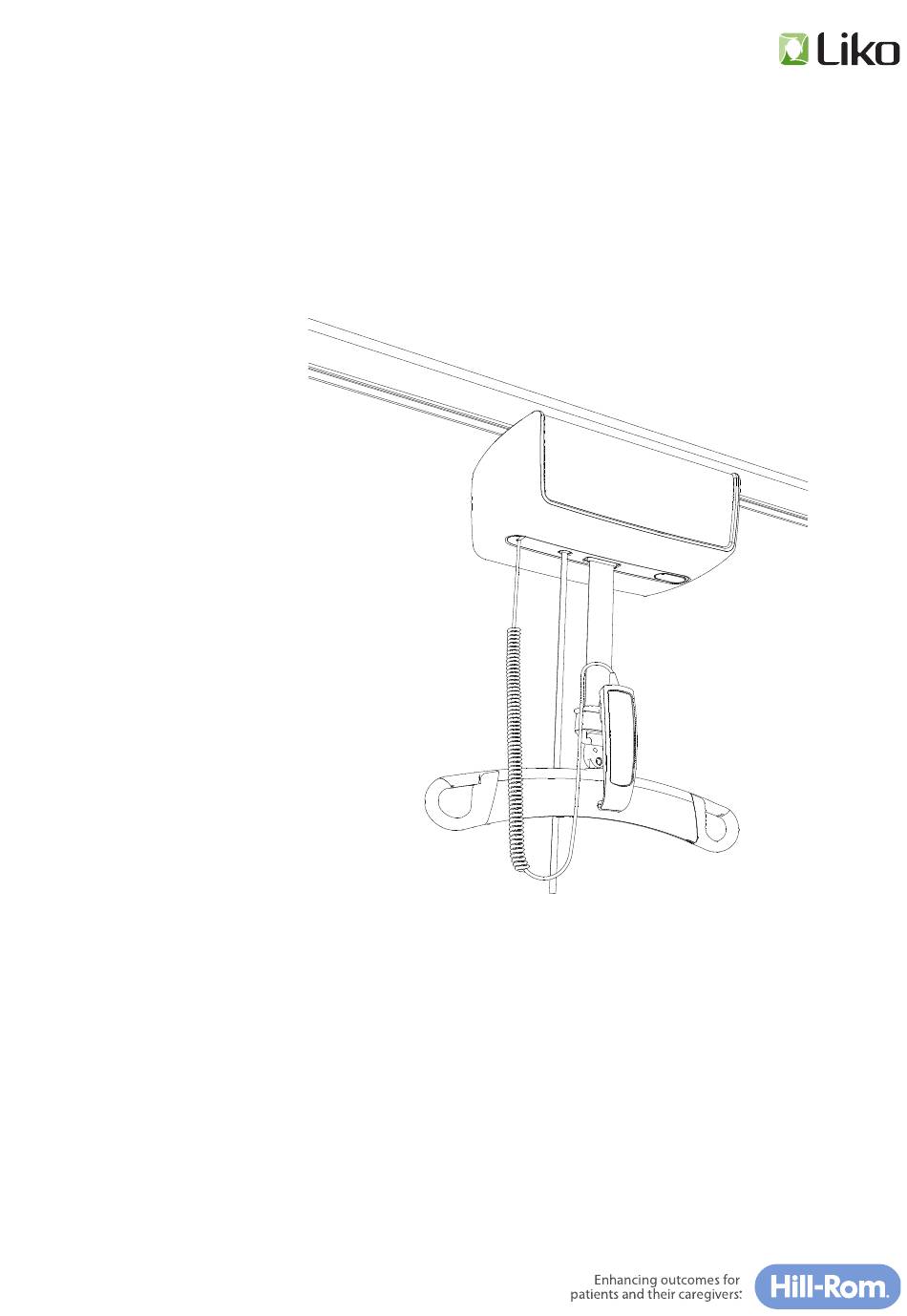

- Page 1 LikoGuard™ Overhead Lift User Manual LikoGuard™ L Prod. No. 3301030 LikoGuard™ XL Prod. No. 3301040 7EN121101 Rev.7 ENGLISH...
- Page 2 LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com...
-
Page 3: Table Of Contents
9. Cleaning and disinfection ....................28 9.1 Equipment ..........................28 9.2 Cleaning instructions ......................28 9.3 Disinfection instructions .....................28 9.4 Use of cleaning and disinfecting agents on the LikoGuard™ Overhead lift ......29 LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 4: Introduction
1 Introduction Thank you for choosing a Liko™ product. With a genuine regard for safety and ease of use, patient handling solutions from Liko have for decades been greatly appreciated by healthcare facilities worldwide. The LikoGuard™ overhead lift series is a new generation platform built with experience combined with innovation to meet the future of overhead lift systems. -
Page 5: Symbol Description
) and protection level against moisture (N Manufacturer Date of manufacture. All batteries in this product must be recycled separately. The material is recyclable. � Emergency stop STOP Emergency lowering LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 6: Product Description
4. Multi-link; attachment point at lift strap. 5. Emergency stop - Mechanical Emergency lowering device. 6. Cable for hand control. 7. Hand control. 8. Sling bar. 9. Attachment point at sling bar. 10. Latches. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 7: Definitions
The lifting point is the lift's position in the overhead system for transfers between different objectives. See examples of lift points below: 1. bed 2. wheelchair 3. water closet (toilet). WARNING! Remember to always plan the lifting operation to and from the lifting points! LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 8: Safety Information
2 Safety information 2.1 Intended Use The LikoGuard™ Overhead lift is part of a Liko™overhead lift system and is intended for use in following environments: Health care, Intensive care, Emergency ward, Rehabilitation, Habilitation and Home healthcare enviroment. An overhead lift system can be used for: - Lifting between a bed and a wheelchair and for toileting. -
Page 9: Maximum Load
2.2 Maximum load A Liko™ lift system is a combination of products. Each product has its own maximum load marking. The lowest specified maximum load of the products that comprises the system sets the maximum load for the complete lift system. -
Page 10: Instructions For Use
– the lifting accessories are not damaged. – the lifting accessories hang vertically and can move freely. 3.2 Move the lift correctly RIGHT! WRONG! 3.3 Leave the lift in the correct position after use WRONG! RIGHT! LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... - Page 11 3.4 Choosing the correct sling Liko has a broad assortment of slings in a variety of models. Our basic models cover the most common lifting needs while our special designed models are for our users with special needs. All slings have their own unique characteristics and are available in variety of sizes.
-
Page 12: Plan The Transfer
– If possible, raise the back of the bed before commencing the lift. – Lower the bed during the lifting and transferring of the patient in order to minimize the distance between the patient and the floor during the lifting operation. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... - Page 13 – Position the patient above the chair lift point, (Locked wheels on the wheelchair). – Apply support to the patient’s knees to ensure the patient is supported by the chair back once lifting is completed. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com...
-
Page 14: Apply The Sling To The Patient
2. Raise the sling bar so that the sling's straps are taut but without lifting the patient from the surface. Check that the strap loops are properly attached to the sling bar hooks, see Fig. 13. Fig. 13. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 15: Functions And Controls
Light 1 indicates yellow when the charger is connected to mains connection Light 2 indicates yellow when charging is ongoing Light 2 indicates green when the battery is fully charged. Read more at 4.4 "Charging the lift battery", on page 19. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 16: Hand Control With Display
Light 1 indicates yellow when the charger is connected to mains connection. Light 2 indicates yellow when charging is ongoing Light 2 indicates green when the battery is fully charged. Read more at 4.4 "Charging the lift battery", on page 19. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 17: Menus And Information
Advanced Service menu is protected by a password. • Spanish Intended use is only by service technician trained by Hill-Rom. • Swedish For information, please refer to the Service Manual. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... - Page 18 No lifting is allowed, underside of the lift to lower the patient to a secure reset. surface. � (marked) STOP Contact your Hill-Rom representative for service. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com...
-
Page 19: Charging The Lift Battery
4.5 Alternative charging system. The Liko In-Rail Charging system is an easy to use charging solution that continuously charges the lift when it is not in use. When lift is in use, the charging stops and will automatically resume in about 5 min after finished use. -
Page 20: Operation Panel On Lift
Pull out the green button on the Quick-Hook Multi ,see Fig. 4a. Attach the quick hook to the Multi-Link on the lift strap and release the button. Quick-Hook Multi is now attached and locked to the the lift straps Multi-Link, see Fig. 4b. Multi - Link Quick-Hook Multi Fig. 4a fig. 4b LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 21: Latches On Sling Bar
4.11 Latches on sling bar 5. Recommended lifting accessories For guidance and support in choosing the correct sling, visit www.liko.com. or contact your Hill-Rom representative. WARNING! To use other lifting accessories than those recommended by Liko™ can entail risk. (Patient will be exposed to risks that may lead to fatal injury i.e patient falls.) Below you find lifting accessories suitable for the LikoGuard™... -
Page 22: Trouble Shooting
1. Charge the LikoGuard™ Overhead lift. 2. If the lift still does not work satisfactorily, please contact Hill-Rom. In the event of excessive noise from the lift! Please contact Hill-Rom. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 23: Inspection And Maintenance
The product has an Expected Life Time of 10 years when correctly handled, serviced and inspected in accordance with Liko product instructions. Read more about this product´s Expected Life Time in section "2.1 Intended Use" at page 8. The product should be used in accordance with the recommendations for Expected Life Time. -
Page 24: Product Data
*** Lifting interval: the distance between max. lifting height and min. lifting height measured in CSP. The product fulfils the requirements of: ISO10535:2006, IEC60601-1, IEC60601-1-2, IEC60601-1-6 , IEC60601-1-11, ANSI/AAMI ES60601-1, CAN/CSA C22.2 No 60601-1 LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 25: Electromagnetic Emissions
(50/60 Hz) magnetic in a typical commercial, hospital or home field healthcare environment. IEC 61000-4-8 NOTE U is the a.c. mains voltage prior to application of the test level. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... - Page 26 If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the LR. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 10 V/m. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com...
- Page 27 Where P is the maximum power in W, d is the minimum separation distance in m, and E is the immunity test level in V/m. The factor of 6 is a compromise for a range of antenna factors, to simplify the test. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com...
-
Page 28: Cleaning And Disinfection
29 and repeat 9.2 Cleaning instructions. Follow the manufacturer’s instructions for correct use of disinfectants. After disinfection wipe off the lift with a cloth moistened with clean water to remove traces of disinfectant. LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... -
Page 29: Use Of Cleaning And Disinfecting Agents On The Likoguard™ Overhead Lift
LikoGuard™ Overhead lift • 7EN121101 Rev. 7 www.hill-rom.com I www.liko.com... - Page 30 I www.liko.com Liko AB Nedre vägen 100 SE-975 92 Luleå, Sweden...
