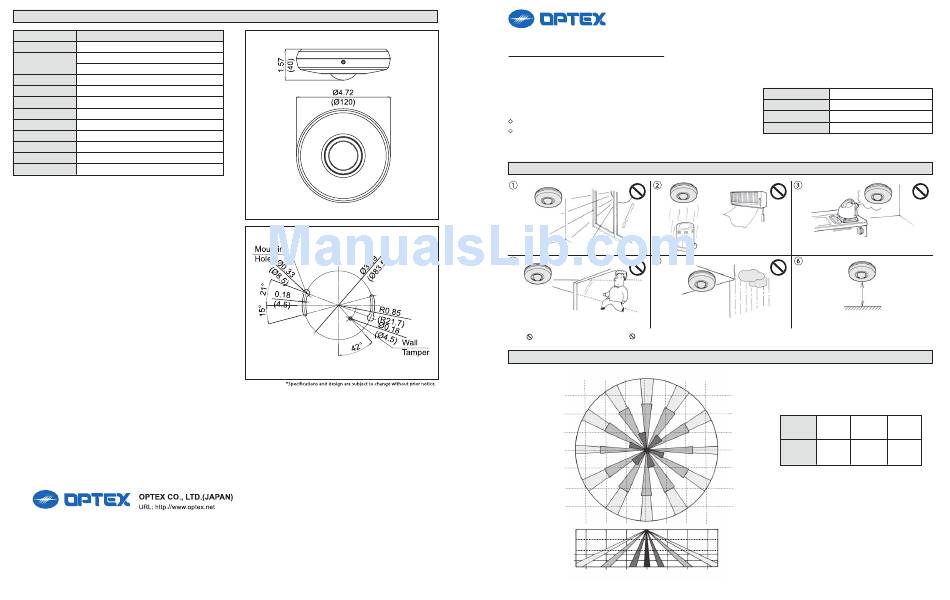

Optex WFX-360HW Installation Instructions

IX. SPECIFICATIONS
M o d l e WFX-360HW / WFX-360DS / WFX-3602G / WFX-360IX
Detection method Passive Infrared
ø25ft - ø40ft / (ø8m - ø12m)
Coverage
Height 8ft - 12ft / (2.4m - 3.6m)
Detection zones 62 zones
Sensitivity 3°F (1.6°C) at 2ft / sec (0.6m/sec)
1 - 5ft/sec. (0.3 - 1.5m/sec.)
Detectable speed
LED indicator Switch-able ON/OFF
Tamper switch
Form C (micro switch)
Pulse Count Approx. 20 sec | 2 or 4
Battery 1 x CR123A Lithium battery
Operating temperature – 4°F - +122°F (–20°C - +50°C)
Environment humidity 85% max.
NOTE
This unit is designed to detect an intruder and activate an alarm control panel.
Being only a part of a complete system, we cannot accept responsibility for
any damages or other consequences resulting from an intrusion.
FCC ID
WFX-360HW/WFX-3602G: U5X-RE259
WFX-360DS: U5X-RE359
WFX-360IX: U5X-RE159
IC ID
WFX-360HW/WFX-3602G: 8310A-RE259
WFX-360DS: 8310A-RE359
WFX-360IX: 8310A-RE159
Install in accordance with the Standard for Installation and Classification of Burglar and Holdup Alarm Systems, UL 681.
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference that may be
received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment.
IC NOTICE
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux cnr d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) L'appareil ne doit pas produire de brouillage, et (2) L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
"Honeywell" , "2GIG" , "Interlogix" , "DSC" are trademarks owned by Honeywell International, Inc, Nortek Security & Control LLC, United Technologies Corporation, and Tyco Safety Products Canada LTD, respectively.OP-
TEX Inc. products will function with one of either Honeywell, 2GIG, Interlogix, or DSC systems. However, no OPTEX Inc. product is produced by, endorsed by, nor is officially associated with Honeywell, 2GIG, Interlogix,
DSC.OPTEX Inc. recommends verifying proper enrollment and operation, per control panel installation instructions, at installation.
OPTEX INC. (U.S.) OPTEX SECURITY SAS (France)
URL: http://www.optexamerica.com URL: http://www.optex-security.com
OPTEX DO BRASIL LTDA. (Brazil) OPTEX SECURITY Sp.z o.o. (Poland)
URL: http://www.optex.net/br/es/sec URL: http://www.optex.com.pl
OPTEX (EUROPE) LTD. / EMEA HQ (U.K.) OPTEX PINNACLE INDIA, PVT., LTD. (India)
URL: http://www.optex-europe.com URL: http://www.optex.net/in/en/sec
OPTEX TECHNOLOGIES B.V. (The Netherlands)
URL: http://www.optex.eu
Dimensions
Mounting Position
OPTEX KOREA CO.,LTD. (Korea)
URL: http://www.optexkorea.com
OPTEX (DONGGUAN) CO.,LTD.
SHANGHAI OFFICE (China)
URL: http://www.optexchina.com
OPTEX (Thailand) CO., LTD. (Thailand)
URL: http://www.optex.net/th/th
Copyright (C) 2016 OPTEX CO.,LTD.
- 4 -

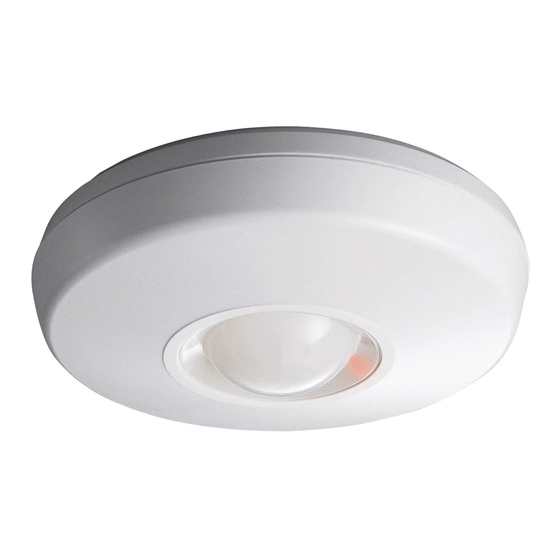

PASSIVE INFRARED DETECTOR
WFX-360HW/WFX-360DS
WFX-3602G/WFX-360IX
FEATURES
Ceiling Mount Type 360°PIR Detector.
Selectable pulse count 2 or 4.
I. INSTALLATION HINTS
inches (mm)
Avoid direct sunlight.
Eviter le rayonnement solaire direct.
Avoid curtain, screen, etc. from blocking detection area.
Eviter les obstacles masquant la zone de détection
(rideau, vitres)
The nix sign indicates prohibition.
II. DETECTION AREA
inches (mm)
TOP VIEW
SIDE VIEW
0
H
ft (m)
8 (2.4)
10 (3)
12 (3.6)
20 (6)
*Product is not produced by, endorsed by, nor is officially associated with
Honeywell, DSC, 2GIG, Interlogix, or QOLSYS.
Avoid facing directly to air
conditioners or heating vents.
Eivter la proximité d'air
conditionné, de chauffage, etc...
Do not install outdoors.
Ne pas installer à l'extérieur.
Le signe non indique une interdiction.
20 (6)
12.5 (4)
6.5 (2)
0
6.5 (2)
12.5(4)
20 (6)
1 2 5 . ( ) 4 6.5 (2 ) 0 6.5 (2) 1 2 5 . ( ) 4 2 0 ( ) 6
D ft (m)
- 1 -
11/15/2017
59-2713-0
INSTALLATION INSTRUCTIONS
WFX-360HW Honeywell 5800 Series Compatible
WFX-360DS DSC 433MHz Compatible
WFX-3602G 2GIG Compatible
WFX-360IX Interlogix 319.5MHz & QOLSYS Compatible
Avoid vapor or high humidity that can cause condensation.
Eviter la vapeur et l'humidité pouvant condenser.
8 - 12 f t
(2.4 - 3.6 m)
Install within 8 - 12 ft. (2.4 - 3.6 m) height from floor.
Hauteur de fixation de 2.4m - 3.6m.
MAX. Detection AREA
Installation
8 10 12
Height
(2.4) (3) (3.6)
ft (m)
Detection
25 32 40
Area
(Diameter)
(8) (10) (12)
ft (m)
