CCT546-553, 555-558 VisionPlus Vari focal CCTV Camera INSTRUCTIONS
The all-new VisionPlus vari focal range of CCTV cameras -
Features
•
Excellent Picture Quality
•
Built in Varifocal Lens
•
Dual Voltage or mains powered models
•
1/3" Sony SuperHAD CCD Sensor
•
Hi-res 470TVL or Standard 380TVL Colour models
•
Two vari-focal lens options 3.8-8mm & 9-22mm
•
DSP chip-set
•
BLC
•
AGC
•
AES
•
High S/N Ratio
•
Auto White Balance
•
IR filter
The new range of Varifocal CCTV cameras offer outstanding performance at ordinary prices. With a choice
of 380 to 470TVL colour, monochrome, 3.5-8mm or 9-22mm lenses and 12V DC, 24V AC, 240V AC options
there' s a camera to suit any application.
Installation and camera set up is easy with this installer friendly camera. All models in the range share the
same set up procedure so once you have learnt to fit one Varifocal model; you' ve learnt the entire range.
Models Covered by these instructions;
HI-RES 470TVLColour
CCT546 12V DC / 24V AC
CCT547 12V DC / 24V AC
CCT548 240V AC
CCT549 240V AC
Standard 380TVL Colour
CCT555 12V DC / 24V AC
CCT556 240V AC
CCT557 12V DC / 24V AC
CCT558 240V AC
Monochrome 420 TVL
CCT550 12V DC / 24V AC
CCT551 240V AC
CCT552 12V DC / 24V AC
CCT553 240V AC
Varifocal Lens
This is a design of lens that has a range of manual focal length adjustments. It is strictly not a zoom lens
because it has quite a short focal length.
adjustment of the scene in view is required which may fall between two standard lenses. They are also useful
where for a small extra cost one camera may be specified for all the cameras in a system. This saves a lot of
installation time and the cost of return visits to change lenses if the views are not quite right. For companies
involved in many small to medium sized installations such as retail shops and offices this can save on
stockholding. It makes the standardisation of systems and costing much easier.

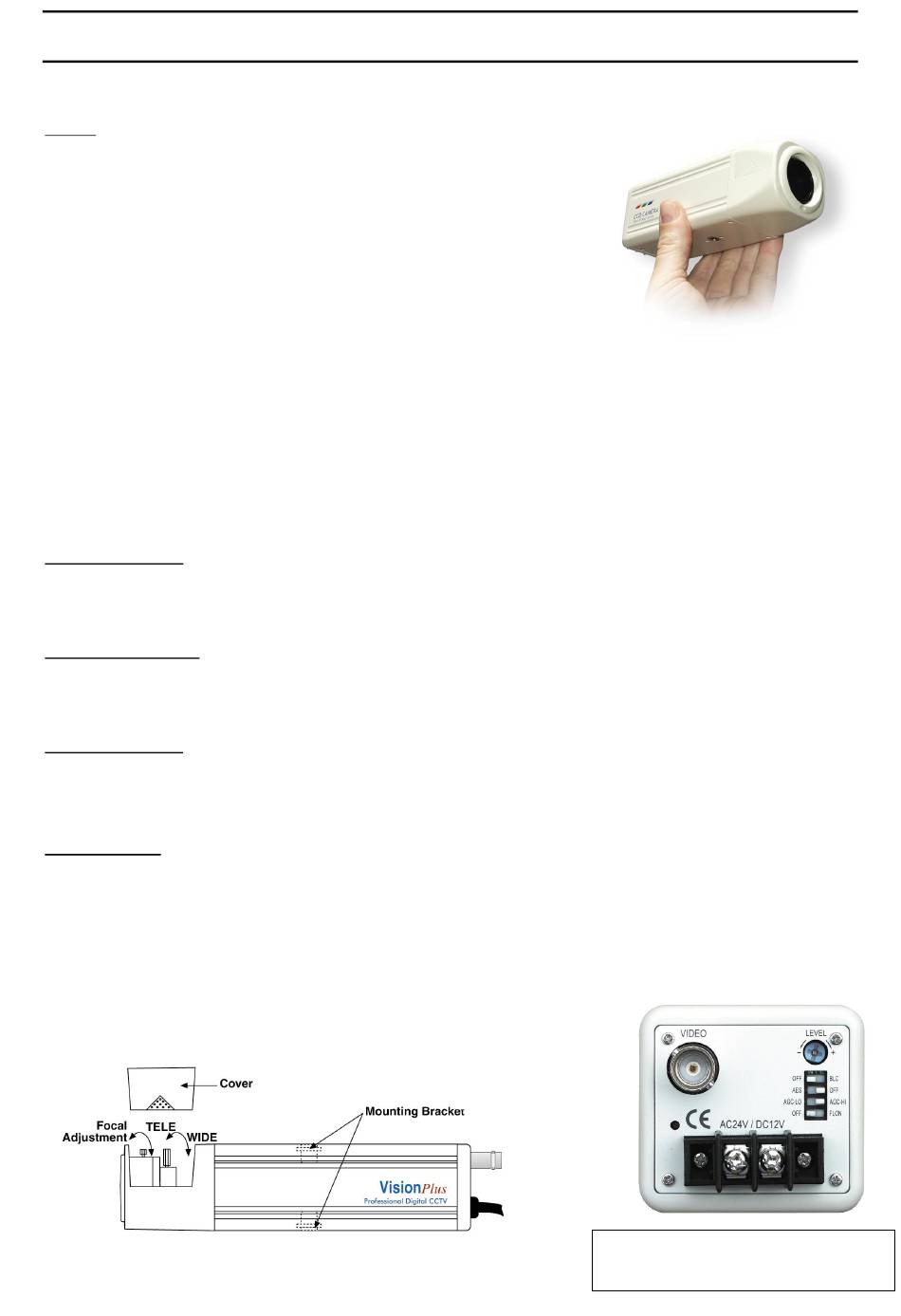

Diagram of the Varifocal camera range.
3.5-8mm Lens Hi-res colour
9-22mm Lens Hi-res colour
3.5-8mm Lens Hi-res colour
9-22mm Lens Hi-res colour
3.5-8mm Lens colour
3.5-8mm Lens colour
9-22mm Lens colour
9-22mm Lens colour
3.5-8mm Lens B&W
3.5-8mm Lens B&W
9-22mm Lens B&W
9-22mm Lens B&W
They are usually used in situations where a more precise
Diagram on right shows the
CCT555, CCT557, CCT546
& CCT547.
CCT550, CCT551, CCT552
& CCT553 only have two
dipswitches.
Doc XCCT550
NOTE:
NOTE: Mains supplied models CCT556,
CCT558, CCT551, CCT553, CCT548 and
CCT549 do not have a terminal strip.
