Display: LCD, 2 lines, 16 characters
Keyboard: 5 keys
Interface: RS 232 bi-directional
Lithium battery 3 V, type CR123A
Power supply:
Dimensions: 70x80x30 mm
100 g (including operating battery)
Weight:
Type of electrical Class II device
protection:
Safety level for Apparatus type BF
shock hazard:
Protection level against IPX0
water penetration:
Safety levels in Apparatus not suitable
presence of inflammable
anaesthetic gas, oxygen
or nitrogen:
Conditions of use: Apparatus for continuous use
Conditions of storage: Temperature: MIN -20 ° C, MAX + 60 °C
Humidity :MIN 10% RH; MAX 95%RH
Operating Conditions: Temperature: MIN 10 ° C, MAX + 40 ° C;
Humidity: MIN 10% RH; MAX 95%RH
Applied norms: Electrical Safety Standard IEC 60601-1
EMC Compatibility IEC 60601-1-2
Expected working life: A life expectancy of 10 years is declared
WARNING
This device is a Class IIa medical device according to the European Directive 93/42/CEE.
1.8

Spirometric normal values

spirodoc is a precise measurement instrument which measures the main spirometric parmeters during a test of "forced
expiration". At the end of each test the machine gives also a suggested automatic interpretation for the respiratory
function of that subject.
In order to make a correct evaluation of a spirometry test the measured values must be compared with the " normal (or
predicted) values" . These values are taken from a healthy population and are calculated from tables or formulas in
function of the age, height and sex of the subject in question.
spirodoc automatically calculates the relevant " normal values " and compares them as a percentage with the "measured
values".
An example of such a calculation is shown below:
parameter FVC: % = FVC measured / FVC normal x 100
2. OPERATION OF THE SPIRODOC

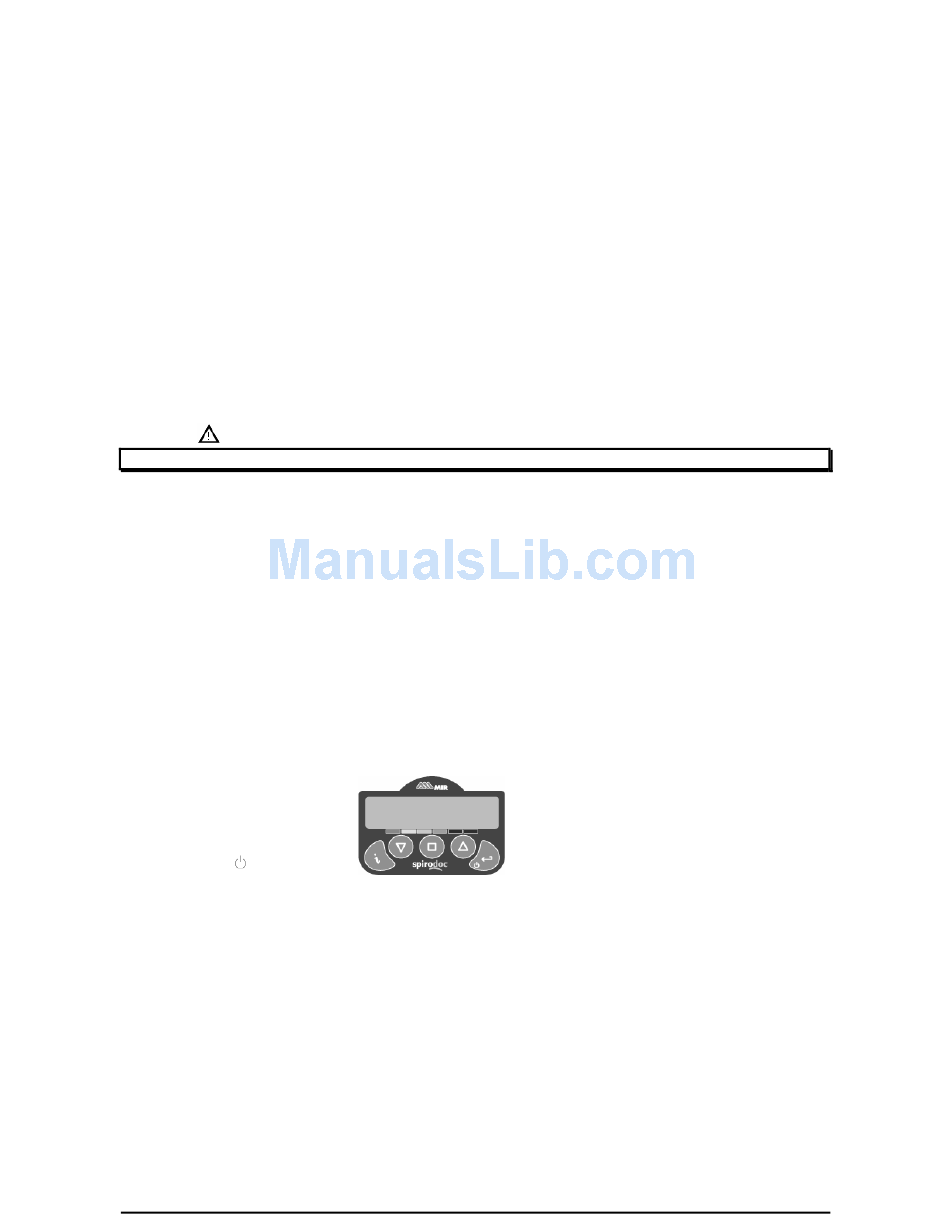

2.1 Keyboard
All spirodocs have a keyboard
consisting of 5 keys:
"↵ ↵ ↵ ↵ "
The key ( ) has several
functions:
SWITCH ON to switch on the spirodoc press and release
SWITCH OFF to switch off the spirodoc press the key for at least 2 seconds
ENTER to confirm and to proceed to the next phase
The " ∇ ∇ ∇ ∇ " is generally used:
• to answer the questions shown on the display
• to reduce/modify a value highlighted with an arrow
The " " key is generally used:
• to answer the questions shown on the display
• used to change the anthropometric data of the patient or to correct recently-input data
The " ∆ ∆ ∆ ∆ " key is generally used:
• to answer the questions shown on the display
• to increase/modify the value highlighted with an arrow
