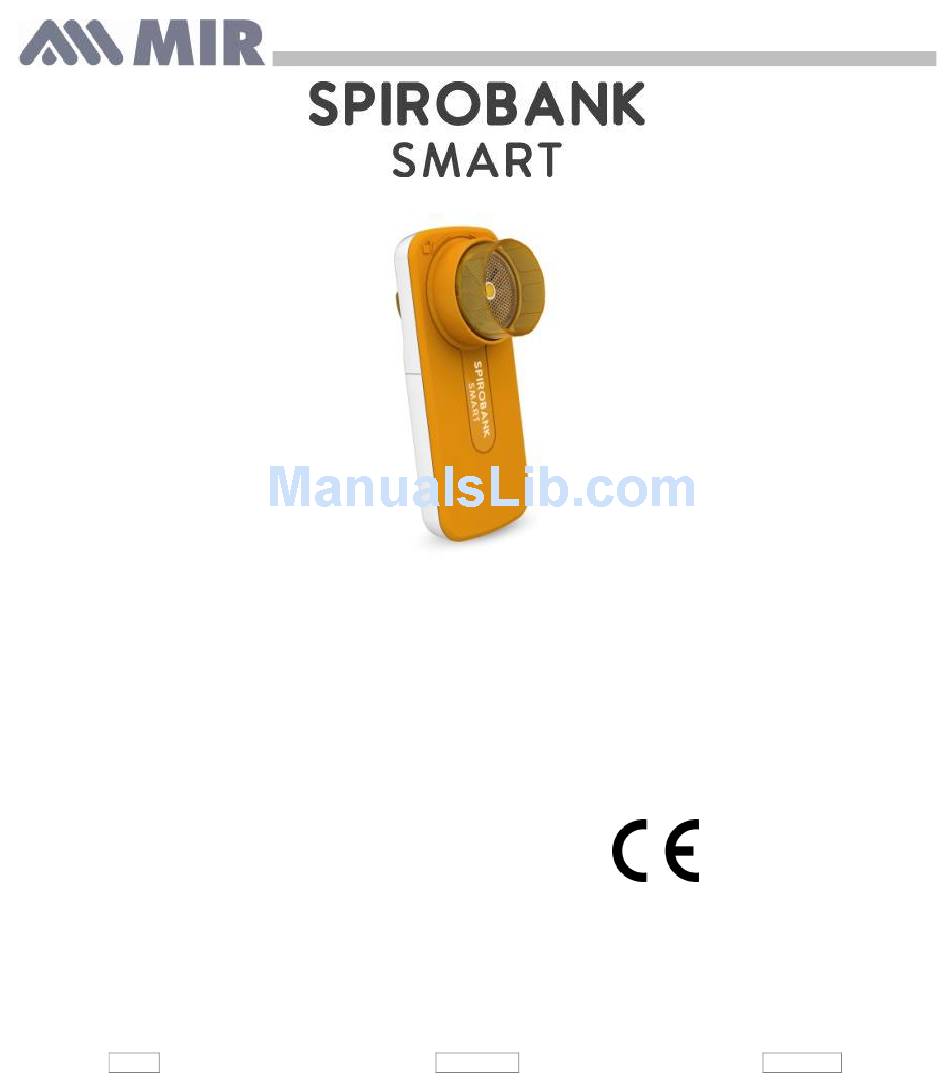

Spirobank Smart
ENGLISH
Before you use your spirobank Smart, please read this user manual,
the labels and all the information provided with the product.
User Manual Rev 2.4
Issue Date
16 January 2018
0476
CAUTION: FEDERAL LAW RESTRICTS THIS DEVICE TO SALE BY OR ON THE ORDER OF A PHYSICIAN
Ver.2.4
User Manual
Page 1 of 27
Advertisement
Table of Contents
Related Manuals for MIR Spirobank Smart
Summary of Contents for MIR Spirobank Smart
- Page 1 Spirobank Smart ENGLISH Before you use your spirobank Smart, please read this user manual, the labels and all the information provided with the product. User Manual Rev 2.4 Issue Date 16 January 2018 0476 CAUTION: FEDERAL LAW RESTRICTS THIS DEVICE TO SALE BY OR ON THE ORDER OF A PHYSICIAN Ver.2.4...
-
Page 2: Table Of Contents
Usage environment ....................4 1.1.2 Restrictions on Use ....................4 Description of product ....................5 Information on the parameters measured by SPIROBANK SMART ....... 5 Determining your baseline values ................. 6 OPERATING THE SPIROBANK SMART ..................7 Inserting the batteries ....................7 Installing the MIR SPIROBANK SMART application ............ - Page 3 ENGLISH Thank you for choosing a MIR MEDICAL INTERNATIONAL RESEARCH product. Before you use your SPIROBANK SMART, please read this user manual, the labels and all the information provided with the product. Before connecting SPIROBANK SMART to a smartphone, install the application developed to show data measured by the device.
-
Page 4: Introduction
Spirobank Smart ENGLISH 1. INTRODUCTION Intended use SPIROBANKSMART spirometer is intended to be used by a physician or by a patient under the instruction of a physician or paramedic. The device is intended to test lung function and can make spirometry testing in people of all ages, excluding infants and neonates. -
Page 5: Description Of Product
Spirobank Smart ENGLISH Description of product SPIROBANK SMART is a pocket-sized system for measuring the following respiratory parameters: • PEF (Peak Expiratory Flow) • FEV1 (Forced Expiratory Volume in 1 sec) • FVC (Forced Vital Capacity) • FEF2575 (Average flow between 25% and 75% of the FVC) •... -
Page 6: Determining Your Baseline Values
SPIROBANK SMART thus helps you find out what sort of obstruction you have, if any, at a particular time. By using the device on a regular basis, you can track any changes that may occur in the parameters. -
Page 7: Operating The Spirobank Smart
2. OPERATING THE SPIROBANK SMART Inserting the batteries Follow the instructions in the Maintenance section for correct battery insertion. Installing the MIR SPIROBANK SMART application Before measuring the PEF, FEV1or FVC you need to install application on your smartphone. Ver.2.4... -
Page 8: Connection Between Spirobank Smart And Smartphone
Spirobank Smart ENGLISH Connection between SPIROBANK SMART and smartphone Connection between the SPIROBANK SMART and the smartphone is automatic. To check whether there is a connection, read the messages from the application. Performing the test In order to perform the test properly, please follow the instructions below. -
Page 9: Evaluating The Test
SMART will save the highest value. 2.4.1 Evaluating the test Three tests are performed per measurement session, after which the MIR SPIROBANK SMART application automatically selects the highest value and compares it with the baseline value (normal or personal best) set during configuration Ver.2.4... -
Page 10: Results Diary
Spirobank Smart ENGLISH 2.4.2 Results diary The test results are automatically stored on the smartphone and can be displayed later. Medical studies have shown that if your doctor examines the test results on a regular basis, lung disease can be managed much better. -
Page 11: Data Security Warnings
Spirobank Smart ENGLISH All modifications, adjustments, repairs, reconfigurations must be performed by the manufacturer or by authorized personnel. In case of problems, do not try to repair the device yourself. Data security warnings Your smartphone stores your personal data. Potential threats such as the following: •... -
Page 12: Warnings For Use In Electromagnetic Environments
For the device to function properly, however, the following precautions must be taken: • Make sure that the SPIROBANK SMART and the smartphone on which the application is installed are no more than 2 metres apart. -
Page 13: Care And Cleaning
• Consult the dealer or an experienced radio/television technician for help. 3. CARE AND CLEANING SPIROBANK SMART is a device that requires little maintenance. The following operations are to be performed regularly: • cleaning and disinfection of the turbine •... -
Page 14: Cleaning And Disinfection Of The Mouthpiece
After each use, check the cleanliness of the turbine. To clean the turbine, pull it out of the SPIROBANK SMART socket by turning it counterclockwise and simply pulling it out. To make it easier to pull out, push the base of the turbine gently with a finger. -
Page 15: Cleaning Of The Device
Remove the battery cover on the back of Remove the two batteries and replace the SPIROBANK SMART them with two new ones, following the polarity as indicated by the symbols in... -
Page 16: Error Messages & Troubleshooting
15% Troubleshooting If you receive an unusually low reading, it could mean that your SPIROBANK SMART meter is broken, or it could mean that the reading is accurate and your asthma is getting worse. Check to make sure that the meter is not broken. You must follow directions exactly as instructed to obtain accurate results. -
Page 17: Accuracy And Reliability
Spirobank Smart ENGLISH PROBLEM POSSIBLE CAUSE SOLUTION The Bluetooth connection is Look for SPIROBANK SMART on the list SPIROBANK SMART not working properly of recognized devices. For correct use, can’t connect with the the smart phone needs Bluetooth smartphone version 4.0 or higher... -
Page 18: Labels & Symbols
Spirobank Smart ENGLISH At the point of peak expiratory flow (PEF), a tangent is drawn with a slope equal to PEF and its intersection on the abscissa defines the TIME ZERO. The back extrapolated volume is the volume of gas that has already been exhaled at the point of TIME ZERO as defined by back extrapolation. -
Page 19: Technical Specifications
Spirobank Smart ENGLISH This symbol is required by European directive 2002/96/EEC on waste electrical and electronic equipment (WEEE). At the end of its useful life this device must not be disposed of as normal domestic waste. Instead it must be delivered to a WEEE authorised collection centre. -
Page 20: Bluetooth Wireless Technology Information
Spirobank Smart ENGLISH Communication interface Bluetooth SMART (4.0 or higher) Power supply 2 x 1.5V AAA alkaline batteries Size main body 109x49x21 mm Weight 60.7 g (including batteries) Type of electrical protection Class II Electrical protection level IP protection level... -
Page 21: Radio Frequency (Rf) Communication
Spirobank Smart ENGLISH Data Integrity: Adaptive frequency hopping, Lazy Acknowledgement, 24-bit CRC, 32-bit Message Integrity Check Data Format: Sends data packets once per 60 ms. Includes 3 control bytes that allows the host to detect if packets are missing and the device to retransmit. -
Page 22: Radio Frequency (Rf) Interference From Other Wireless Devices
Common consumer electronic devices that transmit in the same frequency bands used by the Spirobank Smart may prevent the uploader or mobile device from receiving data. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 23: Information For Correct Use In An Electromagnetic Environment
Guidance and manufacturer’s declaration – electromagnetic emissions The Spirobank Smart is intended for use in the electromagnetic environment specified below. The customer or the user of the Spirobank Smart should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... - Page 24 The Spirobank Smart is intended for use in the electromagnetic environment specified below. The customer or the user of the Spirobank Smart should assure that it is used in such an environment. Portable and mobile RF communications equipment should be used no closer to any part of the Spirobank Smart,...
- Page 25 If the measured field strength in the location in which the Spirobank Smart is used exceeds the applicable RF compliance level above, the Spirobank Smart should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Spirobank Smart.
- Page 26 RF communications equipment and the Spirobank Smart The Spirobank Smart is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Spirobank Smart can help prevent...
-
Page 27: Warranty Terms
Each product, or accessory, sent in for repair must be accompanied by a clear and detailed explanation of the fault. Forwarding to the manufacturer requires the written permission of the manufacturer himself. MIR Medical International Research reserves the right to replace the product or make any changes deemed necessary. Ver.2.4...
