Summary of Contents for Starline i95 LUX

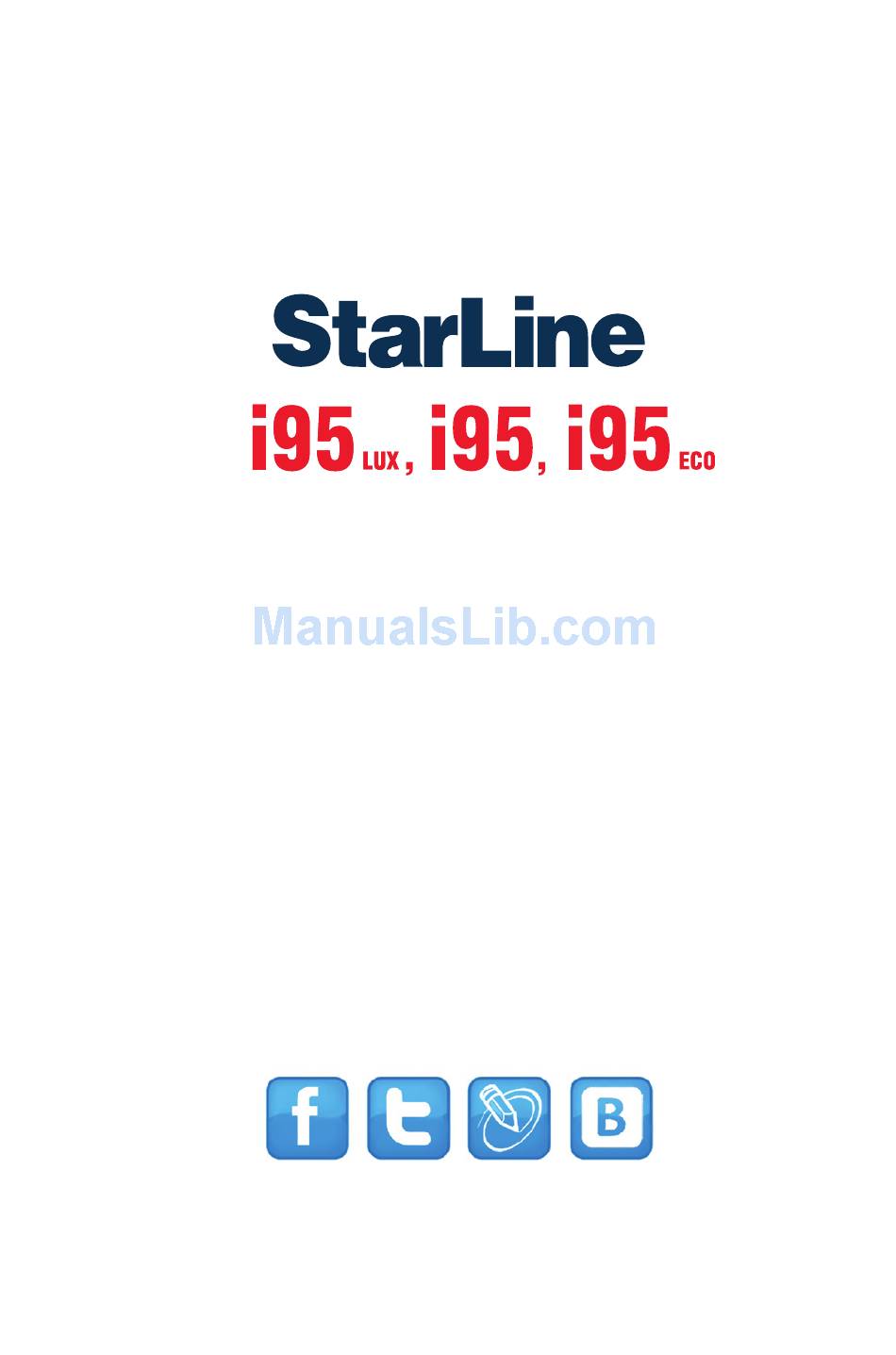

- Page 1 We would like to thank you for choosing the immobilizer and wish you many pleasant and safe drives! Revision No. 3 August 2016...
-
Page 2: Table Of Contents
ECO ......................19 Change of unlocking code ..............20 Entry in the programming mode using the unlocking code for i95 LUX ..20 Entry in the programming mode using the unlocking code for i95 and i95 ECO ........................22 Change of unlocking code using the tag ............ -
Page 3: Table Of Possible Indications
LUX, i95, i95 ECO user manual Table of possible indications 2) If you hear a sound signal, warning about blocking, during car driving, – immediately take actions for safe stop. Engine blocking may cause increase of the force necessary for steering wheel turning and the force of brake pedal pressing. -
Page 4: Delivery Set
LUX, i95, i95 ECO user manual Delivery set Plastic card № Component i95 LUX i95 ECO Installation manual User manual Plastic card Tag with battery, 2 pcs. Blocking module Indication module – – – Buzzer The immobilizer delivery set includes a plastic card containing the... -
Page 5: Operation Principle
LUX, i95, i95 ECO user manual Operation principle To drive a car, equipped with the immobilizer, you should carry along the tag. After tag’s appearance in the blocking module coverage range, they exchange codes automatically via radio communication. The car is protected by way of engine blocking in case of an attempt The immobilizer is a system of access to engine operation with the at car driving in the absence of communication. -
Page 6: Starting The Drive
LUX, i95, i95 ECO user manual Starting the drive f the intermittent blocking algorithm was set in the settings (see Installation Manual), an engine failure is simulated – the engine blocking circuit is periodically opened and restored according to the following algorithm: Before driving, make sure the tag is present. -
Page 7: Warning Of Tag Battery Discharge
LUX, i95, i95 ECO user manual Warning of tag battery discharge Communication check and operation mode selection To prevent engine blocking in case of tag battery discharge, the immobilizer monitors its charge level. The low charge level of the tag battery is indicated by... -
Page 8: Security Mode Selection
LUX, i95, i95 ECO user manual Security mode selection The security modes are switched over in turns: normal – Anti hijack – normal – etc. Normal Anti hijack The tag is identified once Tag presence is constantly after ignition switch-on. -
Page 9: Emergency Unlocking
LUX, i95, i95 ECO user manual Emergency unlocking 1) Press and hold the tag button. Right after pressing, the tag will indicate the current operation mode and state of communication with the blocking module. Then 2-second indication of the next security mode will be provided. -
Page 10: Unlocking By Means Of The Indication Module For I95 Lux
LUX, i95, i95 ECO user manual Unlocking by means of the indication module Unlocking by means of ignition key for i95 for i95 LUX and i95 ECO For this, do the following: For this, do the following: 1) Switch on the ignition. Press and hold the 1) Switch on the ignition. -
Page 11: Change Of Unlocking Code
LUX, i95, i95 ECO user manual Change of unlocking code 4) Insert the battery in the tag. In several seconds the tag LED will start issuing three-second green flashes, waiting for parameter entry. The current unlocking code must be known in order to change the code to a new one. -
Page 12: Entry In The Programming Mode Using The Unlocking Code For I95 And I95 Eco
LUX, i95, i95 ECO user manual Entry in the programming mode using the Switchover to the emergency unlocking mode. Example of unlocking code entry – 1798. unlocking code for i95 and i95 ECO Set the immobilizer to the emergency unlocking mode. Leave the ignition on. After that do the following: 1) In 20 seconds a long (10 s) signal will follow. -
Page 13: Change Of Unlocking Code Using The Tag
LUX, i95, i95 ECO user manual Change of unlocking code using the tag Switchover to the unlocking code change mode. ATTENTION! Do not use trivial combinations as a new code, for instance, 1-1-1-1, 3-3-3-3, digits of the car registration number etc. -
Page 14: Device Registration
Example of unlocking code entry – 1798. For registration of new components the immobilizer should be set to the device registration mode. Switchover for immobilizer i95 LUX is performed using the indication module. For immobilizer i95, i95 ECO – using the ignition key. -
Page 15: Entry In The Device Registration Mode For I95
LUX, i95, i95 ECO user manual Entry in the device registration mode for i95 Example of unlocking code entry – 1798. and i95 ECO Set the system to the parameter programming mode using the unlocking code. Leave the ignition on. After that do the following: 1) In 20 seconds a long (10 s) signal will follow. -
Page 16: Tag Registration
LUX, i95, i95 ECO user manual Tag registration Indication module registration (i95 and i95 ECO) Set the immobilizer to the device registration mode. After that do the To enhance convenience of immobilizer use, the indication module following: can be registered (purchased separately). For this, set the immobilizer to the device registration mode. - Page 17 LUX, i95, i95 ECO The manufacturer reserves the right to change the design and elements without prior notification Manufacturer: Limited Liability Company “Scientific and Production Association “StarLine” (LLC “SPA “StarLine”) 194044, Russia, Saint Petersburg, 9 Komissara Smirnova Str.
