3.2. Smart User Interface
The Smart User Interface is used to configure, calibrate and diagnose the MCT466-QC NIR tester.
The SUI is made up of 2 major components: a 5.7" high resolution touch screen and a single "smart"
circuit board. The SUI is located at the front of the tester on the base of the tester.
Below are some screen shots showing the different pages of the Smart User Interface with one or more
constituents:
Process Sensors Corporation

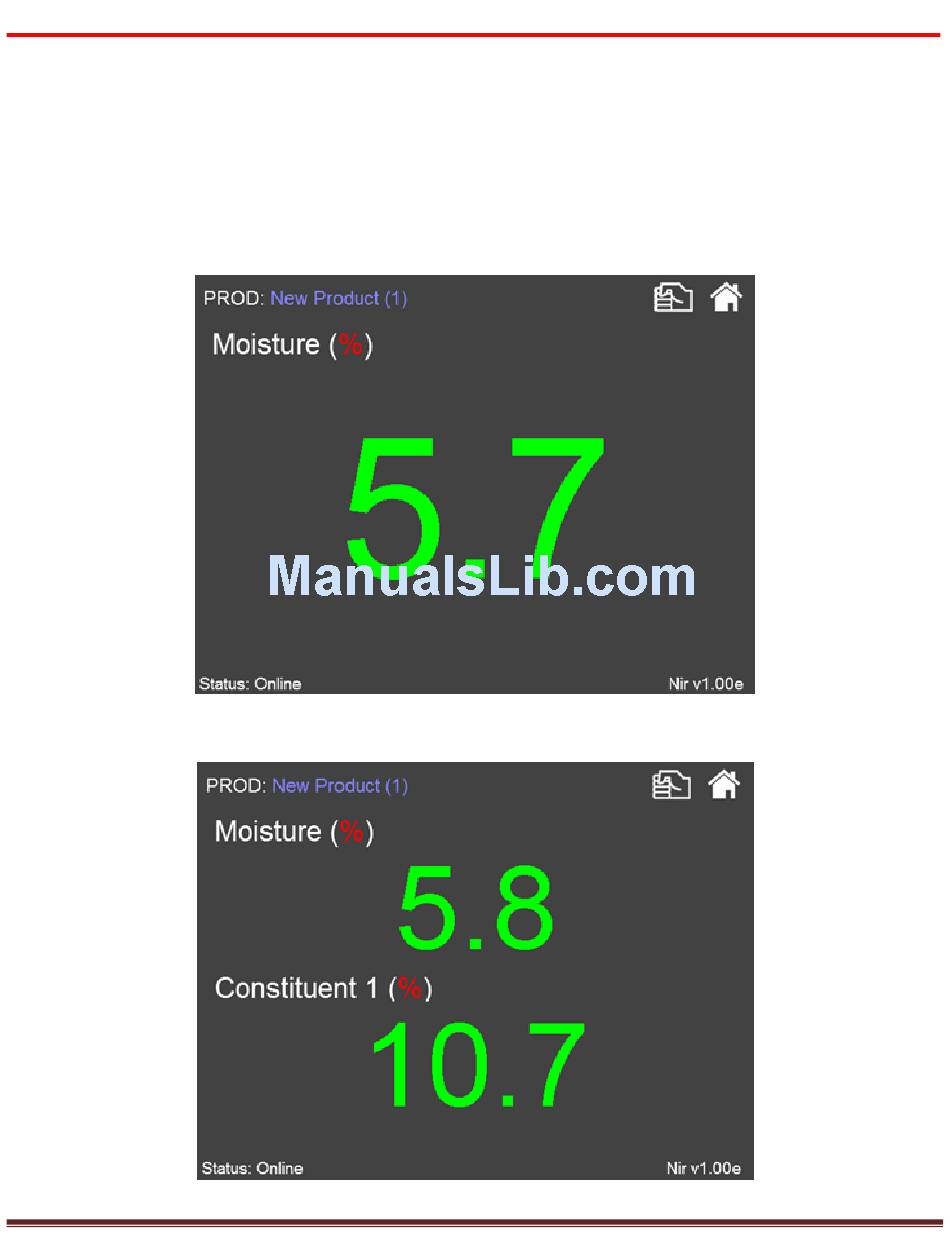

Figure 2: Home Screen – Single Constituent
Figure 3: Home Screen – Two Constituents
MCT466-QC User Guide Manual
Page 9
