Sensor STATUS: This presents the operational status of the NIR tester. The tester's microprocessor
continually monitors up to 12 tester parameters. If all are correct the status will indicate OK. If any one
of the parameters is out of range then a warning message will be presented. A detailed SENSOR
STATUS diagnostics list is displayed on page 2 of the diagnostics.
Wheel Speed: This is the rotational speed of the filter wheel.
Internal Temperature: This is the internal temperature of the MCT466-QC NIR tester.
Filter Gain: This is the optical circuitry gain value.
Cooler Temperature: This is the actual detector's temperature.

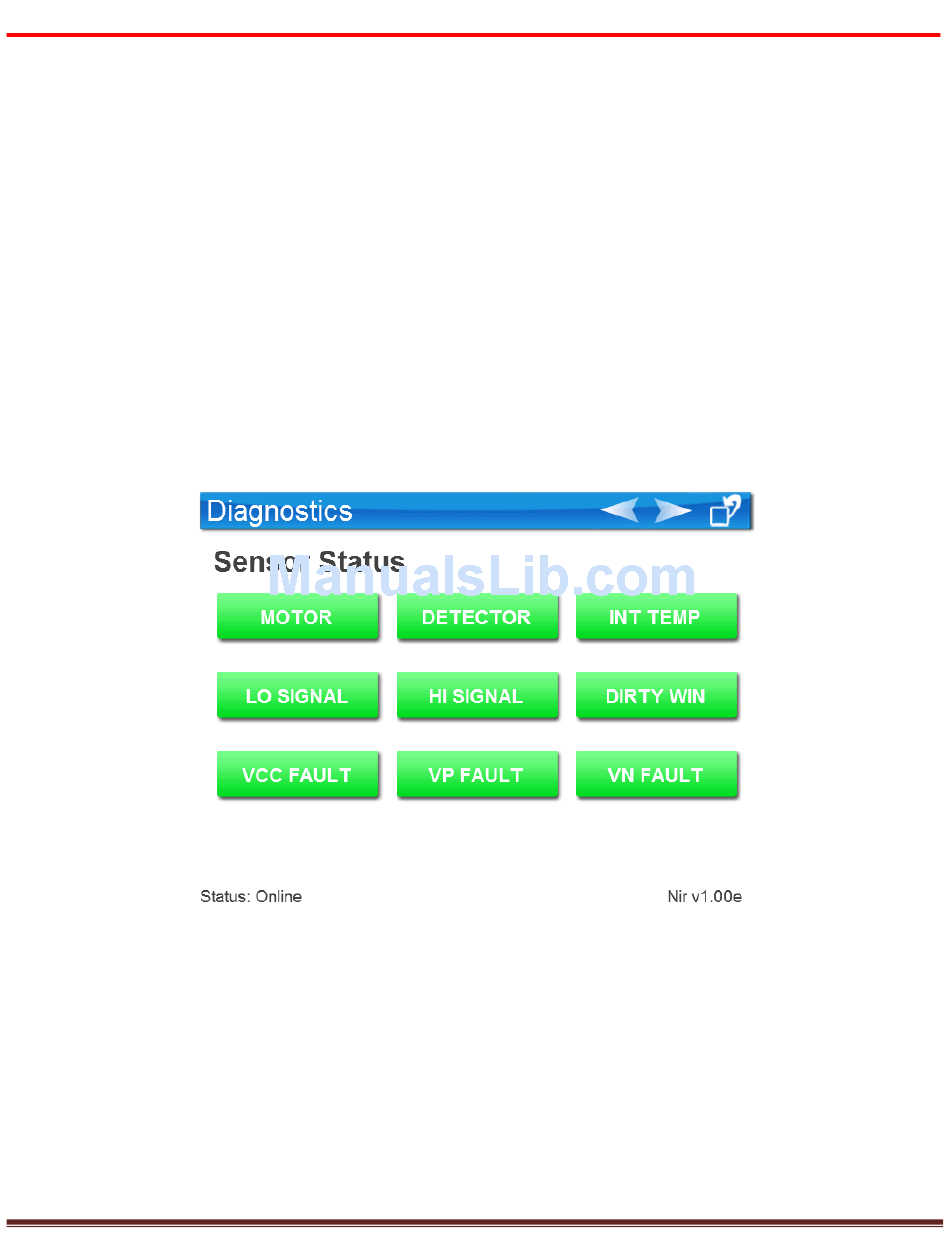

Page 2 of the diagnostics menu displays the status of a list of the MCT466-QC NIR tester components as
shown in Figure 20 below. The component tab is displayed in green when its status is ok and in red when
something is wrong.
Page 3 of the diagnostics menu displays the main voltages values off of the main board of the MCT466-QC
NIR tester as shown in Figure 21 below. Value is displayed in green when status is ok and in red when
status is not ok.
Process Sensors Corporation
Figure 20: Diagnostics Menu – Page 2
MCT466-QC User Guide Manual
Page 19
