Process Sensors METIS M311 Quick Start Manual

Pyrometers

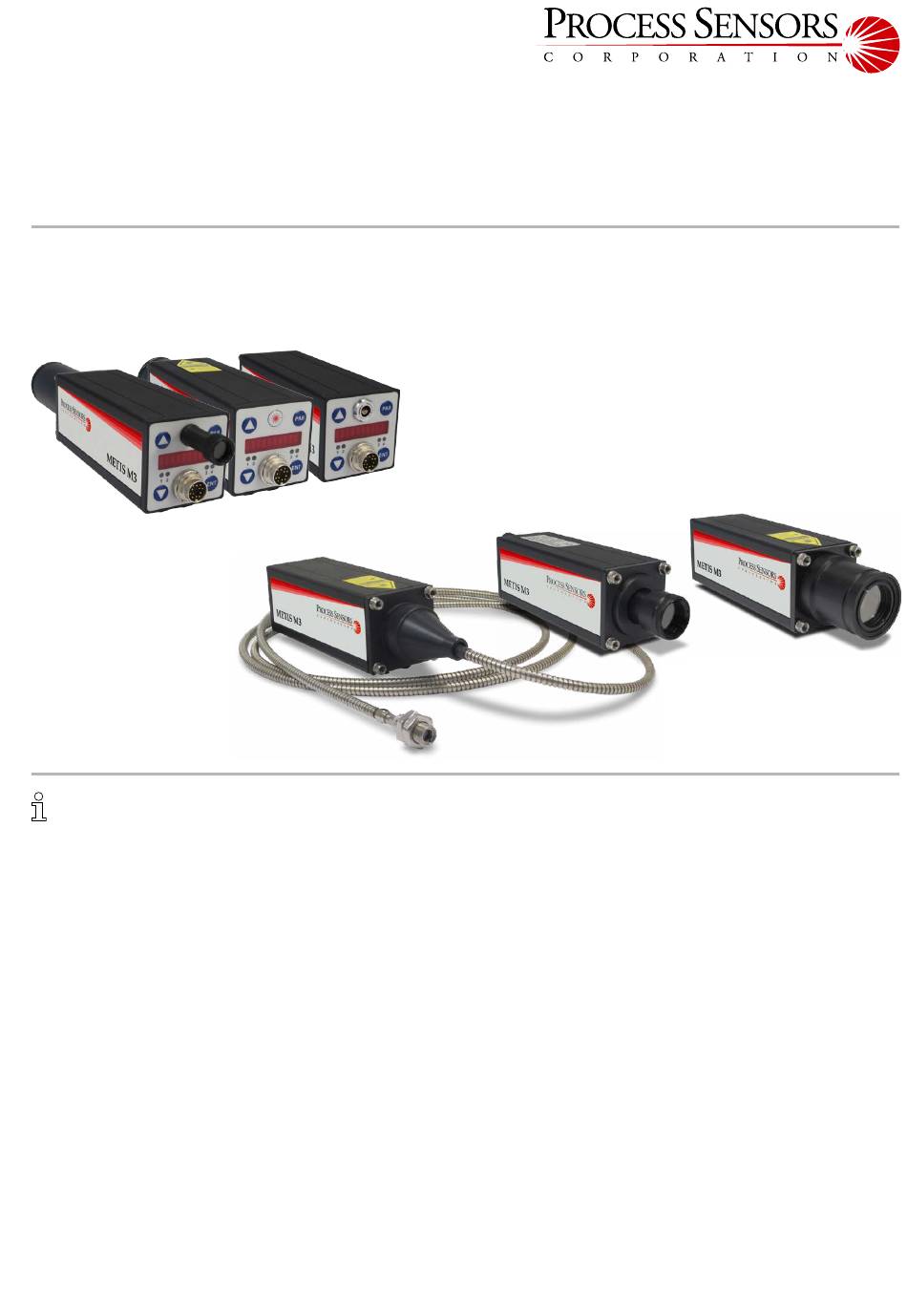

METIS M311 / M322
METIS H311 / H322
With 12-pin connector, display and push button device configuration
Quick Start Manual
Sightings:
■ Through-lens view finder
■ Laser targeting light
■ Camera module
The detailed operation manual can be found on the CD and under www.sensortherm.de/en/download-section.
There also the current device firmware and the software SensorTools can be downloaded.
General Information
■ Read this manual and the complete user manual carefully before operating the product. All security notes and operation proce-
dures in the manuals must be followed to ensure safety.
■ The product conforms to the following standards: CE conformity: DIN EN 61326-1 (electromagnetic compatibility), laser safety:
IEC 60825-1 (laser class 2), RoHS: 2011/65/EU.
■ Process Sensors is not responsible for damage caused by failure to observe instructions in this manual, deviation from intend-
ed use, assignment of unskilled personnel, unauthorized modifications, technical modifications or the use of unapproved spare
parts.
■ For devices with integrated PID controller Process Sensors Corporation assumes no guarantee that the temperature control in all
processes meet the desired requirements. Process Sensors excludes the process of responsibility.
Safety
■ When connecting or when working on the mains voltage, general safety guidelines must be observed, e.g. when connecting
power transformers. Mains voltage can cause serious injury. Improper installation can cause physical damage. Only qualified
personnel are allowed to work with mains voltage.
■ For easy alignment, the pyrometers may be equipped with a laser targeting light, Laser Class 2 (according to IEC 60825-1-3-
4). The laser emits a visible red light with a maximum power of < 1 mW and a wavelength around 650 nm. Devices with laser
targeting light are marked with a yellow "CAUTION" sticker.
Safety precautions: Do not look into the laser beam directly. Do not point the laser to anyone. Also ensure the beam will not be
reflected into eyes of people by mirrors or shiny surfaces.
■ If the device is used in the commercial sector the operator is subject to the legal responsibilities for workplace safety.
In addition to the safety instructions in this manual follow the regulations of safety, accident prevention and environmental protec-
tion.
Intended Use
The 2-color pyrometers of the Metis M3 and H3 series are devices for non-contact temperature measurement. The M3 models
have a response time of < 1 ms. The H3 models are high-speed instruments with a response time of < 80 µm.
Optics:
■ Fiber optics
■ Manual focusable optics
■ Motorized focus optics
