MCT466-QC User Guide Manual
Each Product Calibration has its individual span and zero settings.
To make a change to the values, touch the number, a numeric keypad will pop up. Type the new
number and touch the ENT key.
3.2.7 Calibration Routine
The Calibration Routine is a linear regression routine that adjusts the NIR tester's calibration
parameters (span and zero) so that the NIR tester's readings match the actual lab moisture readings.
This is done by using a series of representative product sample with moisture contents covering the
moisture range to be measured.
The objective of NIR tester calibration is to obtain a straight-line graphical relationship between the
tester's reading and the true moisture value of a series of samples as shown in Figure 17 below.
MCT
10
8
6
Calibration Routine Process:
4
1-
Select one of the unused Product Calibrations in the NIR tester.
*
2-
Make or collect from the process a series of sample (up to 25) with moisture contents covering the
range expected in the process.
2
3-
Set the Span value to 25.0, the zero to -20 and the damp time to a value of 1.0.
Present the lowest moisture sample to the tester; adjust the zero setting to make the tester's reading
4-
0
2
agree with the true moisture content of the sample. Note the reading.
5-
Present all of the samples to the tester in turn, and make sure to note the tester and actual lab
readings for each sample.
6-
Tabulate the results as shown in Table 1 below:
Process Sensors Corporation
Calibration Graph
*
*
4
6
8
10
*
*
*

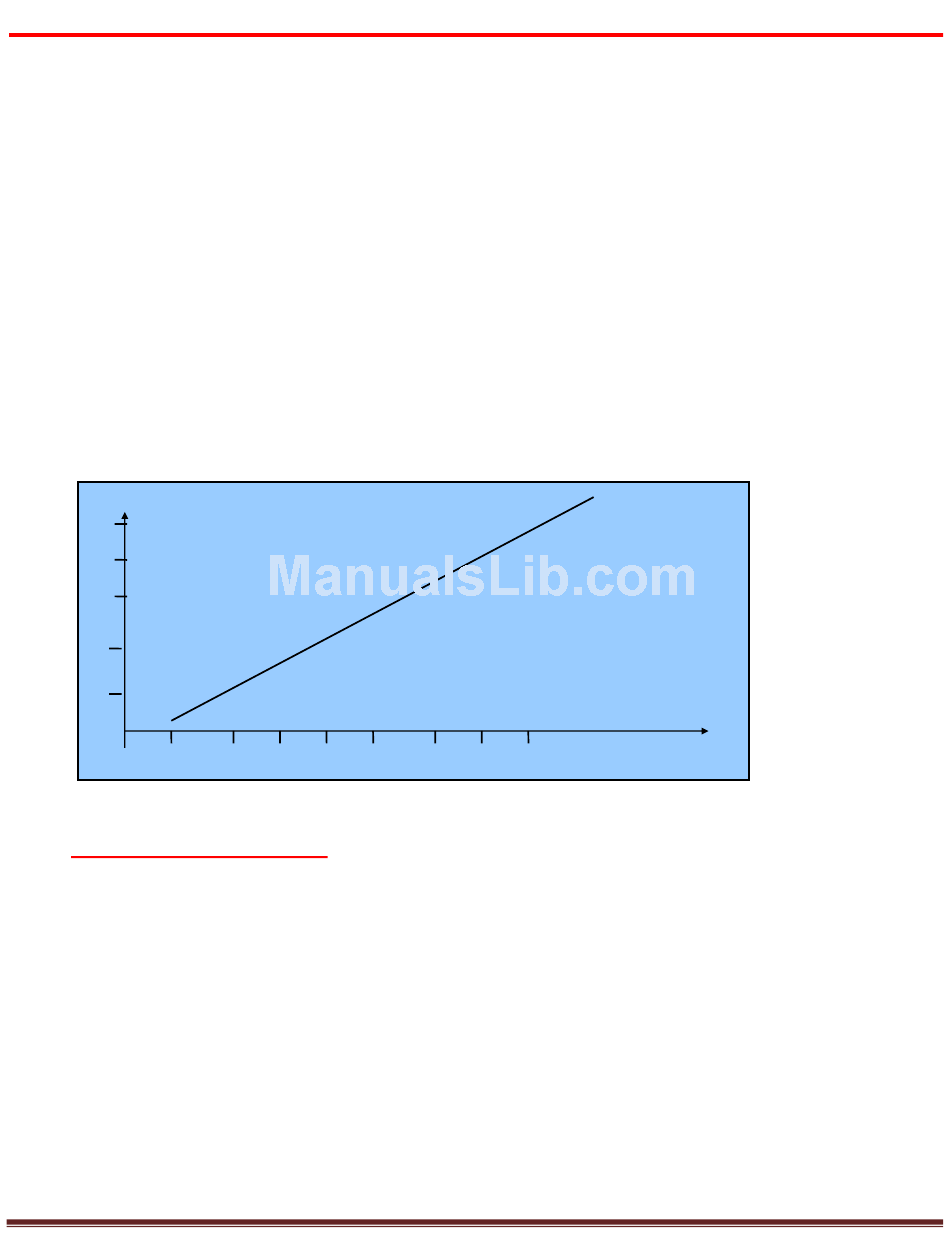

Figure 17: Calibration Graph
12
14
16
True Moisture
Page 16
