MCT466-QC User Guide Manual
3.2.2 Changing Product Calibration
Selection of the Product Calibration is made by touching the Current product calibration (Product Cal
(1)). A product calibration selection window will pop up. Select the new product by touching the
desired product calibration followed by the SAVE key.
Figure 10 below shows the select Cal & Constituent page in which the NIR tester's existing
product calibrations will be listed.

3.2.3 User Screen

Touching the Home symbol on the top right corner of the main screen will allow you to access an
unprotected User Screen as shown in Figure 11 below. In this screen, the user may offset the NIR tester's
zero setting, change the damp time and change the grab sample time.
In order to offset the MCT466-QC NIR tester, touch the "Adjust" number and use the pop up keypad to enter
the true moisture of a sample and on pressing the Enter key the NIR tester display will be adjusted to match
the value entered.
In order to change the grab sample time, touch the "Grab Time" number and use the pop up keypad to enter
the grab sample test time.
In order to change the damp time, touch the "Damp" number and use the pop up keypad to enter the new
damp value. The Damp Time is a global setting that applies to all Product Calibrations.
Process Sensors Corporation

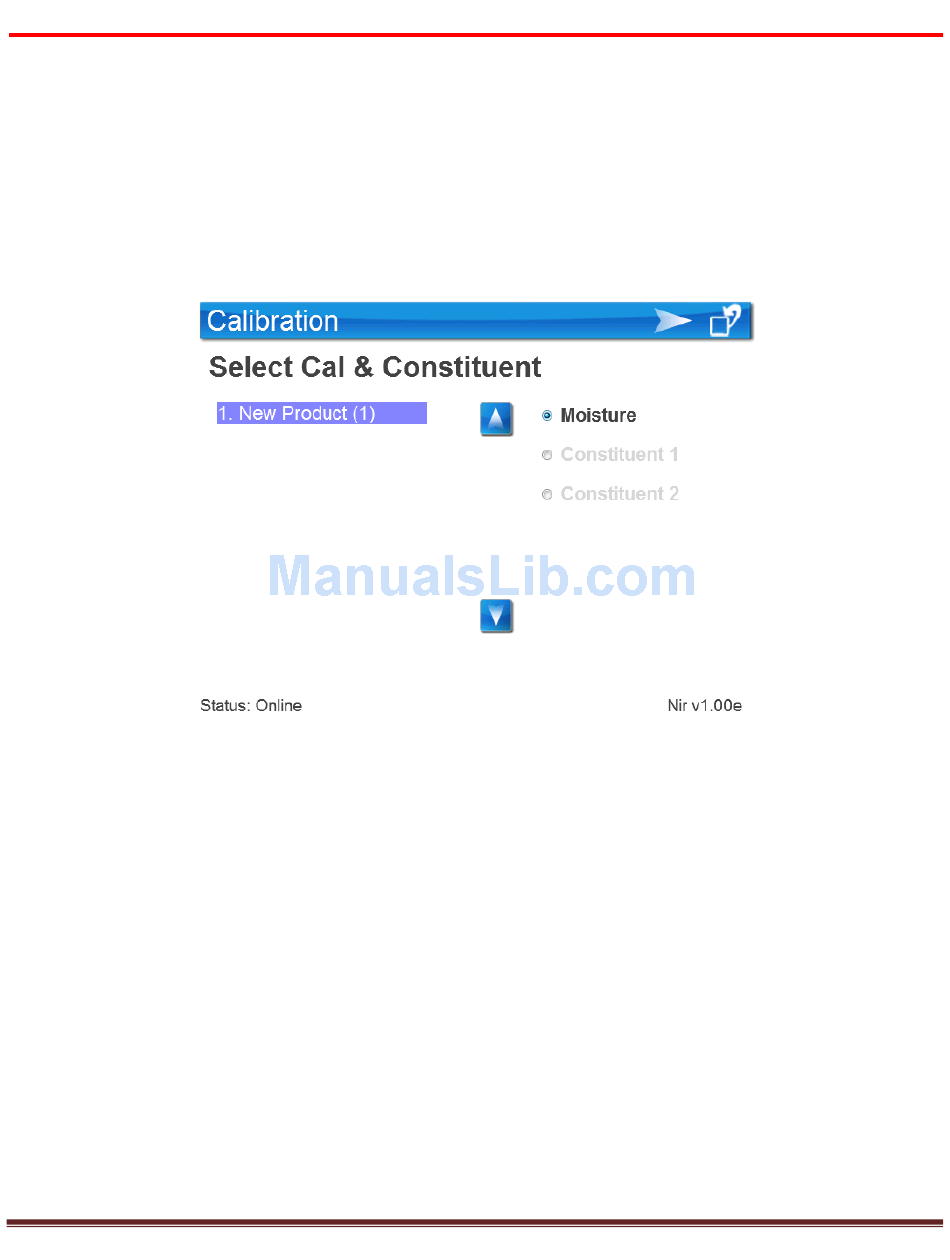

Figure 10: Product Selection Menu
Page 12
