MCT466-QC User Guide Manual
Chapter 4.
The MCT466-QC NIR Tester is a plug and play device which will be ready for use after being calibrated for
the different products / measured constituents. The built in Smart User Interface makes the end user's job
easier than ever.
4.1. Sitting the Tester
The MCT466-QC NIR Tester is suitable for mounting on a countertop in a laboratory or on a
tabletop at-line in the production environment as shown in Figure 31 below.
4.2.
Temperature
The MCT466-QC NIR Tester is designed to give satisfactory measurements within a temperature
range of 32 to 120 degrees F (0 to 50 degrees C).
4.3. AC Power Connections
The MCT466-QC NIR tester is powered using the 6-foot (2 meters) power cord connected to the
rear of the tester. The input is auto ranging and accepts 90-260VAC volts, 15 amps.
4.4. Communication
The MCT466-QC NIR Tester will communicate with the PC software installed on a remote PC
by using the RS232 port or the USB located on the back of the tester.
Process Sensors Corporation
NIR tester Installation

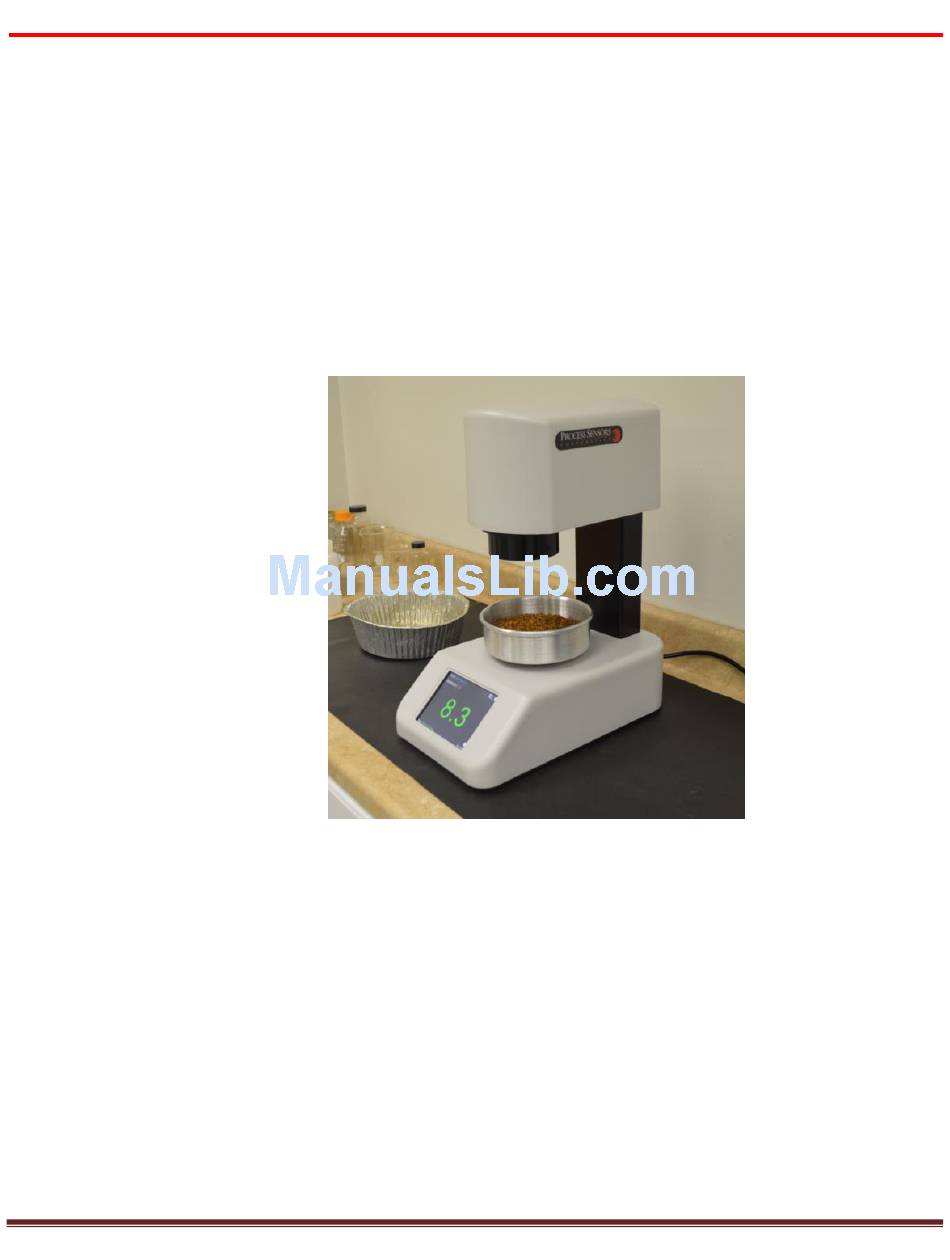

Figure 31: MCT466 QuikCheck being used in a laboratory environment
Page 28
