Disassembly; Cabinet Removal; Service Position; A, D & H Board Removal - Sony TRINITRON CPD-E210 Service Manual
Color monitor d99c chassis.
Hide thumbs
Advertisement
CPD-E210

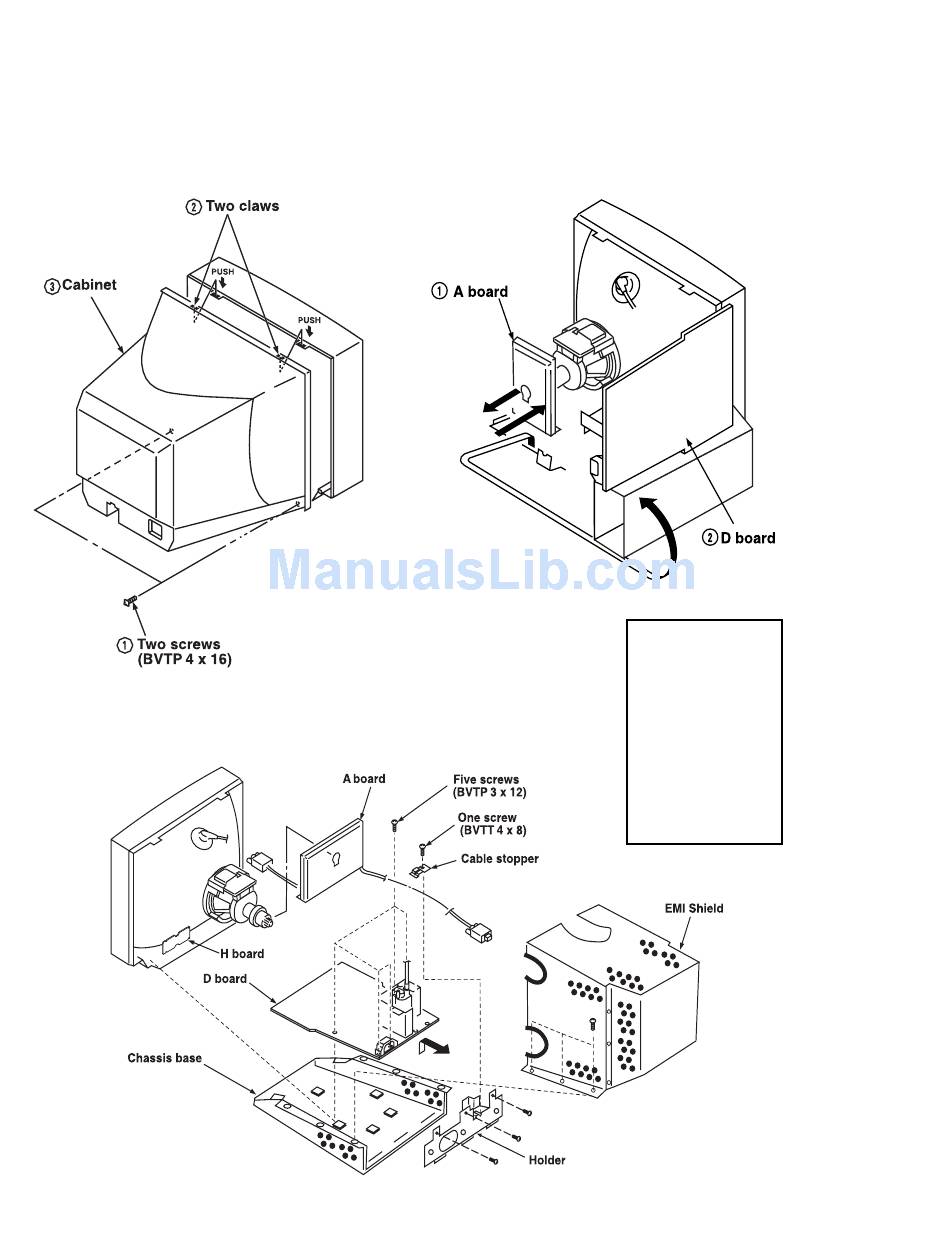

2-1. CABINET REMOVAL
2-3. A, D & H BOARD REMOVAL
SECTION 2
DISASSEMBLY
2-2. SERVICE POSITION
— 12 —
1 When the D board is
placed in service
position, the Safety Earth
Wire (green and yellow
wire) is disconnected.
2 After service is
completed and the
D-board reinstalled, the
Safety Earth Wire must
be reattached to the
chassis with the proper
screw. This must be
confirmed before any
subsequent procedures
are attempted.
