CPD-E210

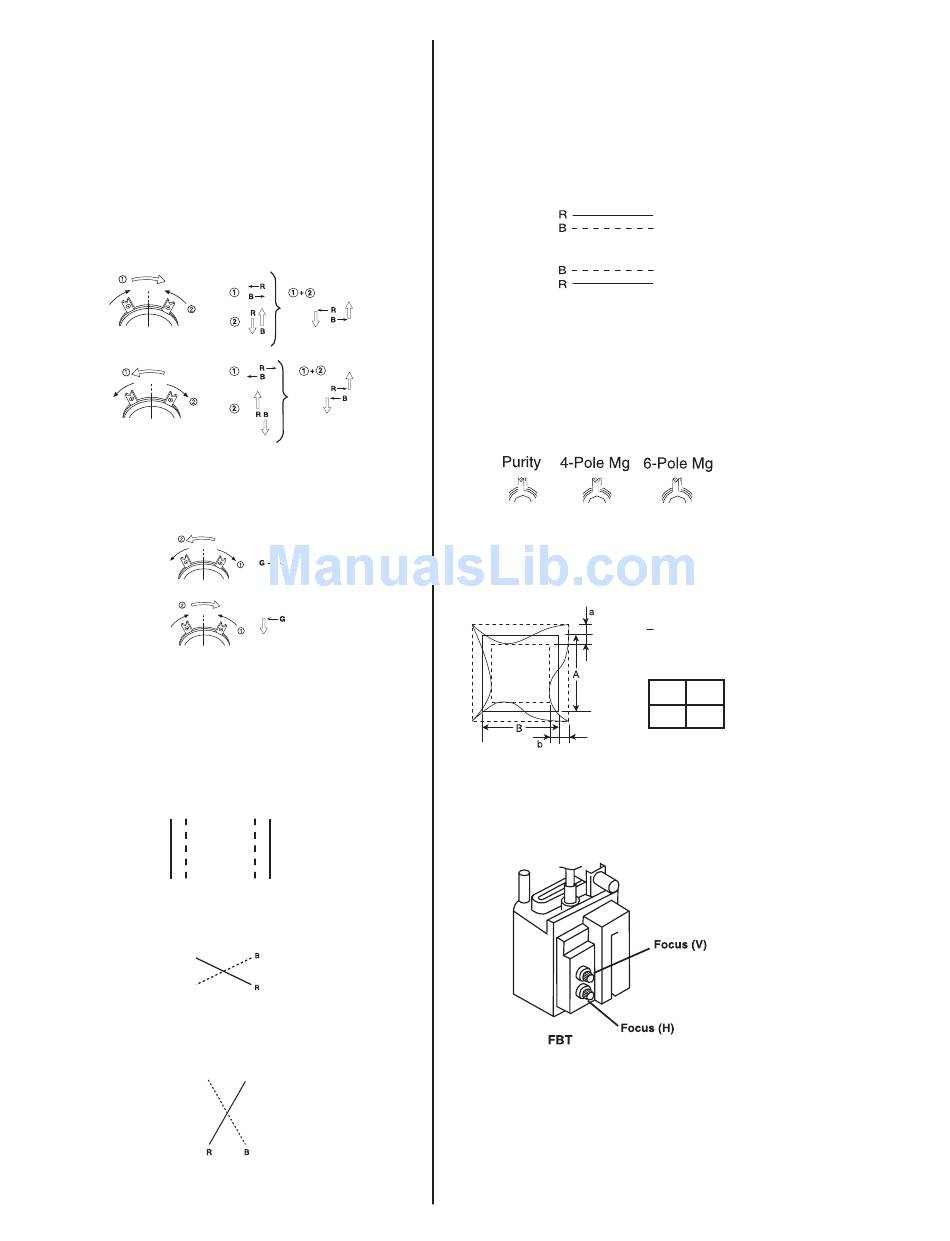

2. Display crosshatch pattern with red and blue lines and
black field.
3. Adjust H.STAT and V.STAT with 4 pole magnet. Use 4
pole magnet, not "HSTAT" and "VSTAT".
4-Pole Magnet
4. Display crosshatch pattern with white lines and black field.
5. Adjust HMC and VMC with 6-pole magnet.
6-Pole Magnet
6. Display crosshatch pattern with red and blue lines and
black field.
7. If necessary, repeat steps 3-6.
8. Change "CONV_OFF_NDX" to "3".
9. Adjust H.TILT with TLH plate.
TLH Movement
R B
10. Adjust XCV with XCV VR.
XCV Movement
11. Adjust YCH with YCH VR.
YCH Movement
B R
— 16 —
12. Adjust V.TILT with TLV VR.
TLV Movement
13. If necessary, repeat steps 1-12 to make the
optimum condition for the entire screen.
14. Fix 4-pole magnet, 6-pole magnet, XCV VR
and TLH Plate with white paint.
Zero Position Neck Ass'y
4-5. VERTICAL AND HORIZONTAL POSITION
AND SIZE SPECIFICATION
a =
b =
4-6. FOCUS ADJUSTMENT
Adjust focus (V) and focus (H) for optimum focus.
f
> 60kHz
f
< 60kHz
H
H
2.0 mm
2.5 mm
2.0 mm
2.5 mm
A
B
234
312
