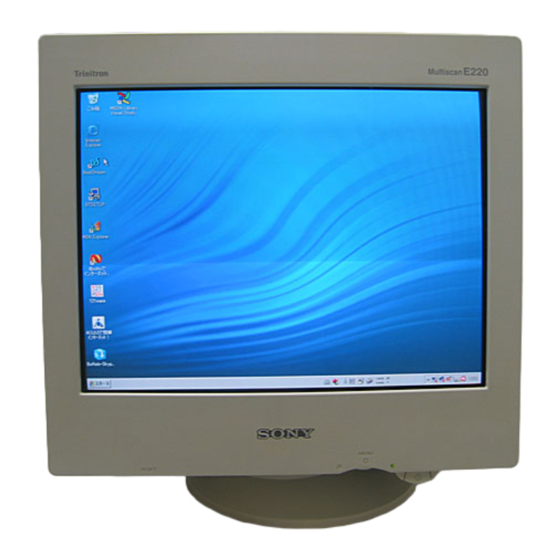

Sony CPD-E220 Service Manual

Trinitron color computer display.
Hide thumbs

Advertisement

SERVICE MANUAL

CRT
Viewable image size
Resolution
Maximum
Recommended
Standard image area
Deflection frequency*
AC input voltage/current 220 to 240 V, 50/60 Hz, 0.9 A
Power consumption
Dimensions
Mass
Plug and Play
CPD-E220/E215E/E220E
SPECIFICATIONS
0.24 mm aperture grille pitch (center)
17 inches measured diagonally
90-degree deflection
FD Trinitron
Approx. 327 243 mm (w/h)
3
5
(14
/
9
/
inches)
4
8
16.0" viewing image
Horizontal: 1600 dots (E220/E220E)
1280 dots (E215E)
Vertical: 1200 lines (E220/E220E)
1024 lines (E215E)
Horizontal: 1024 dots
Vertical: 768 lines
Approx. 312 234 mm (w/h)
3
1
(12
/
9
/
inches)
8
4
Horizontal: 30 to 85 kHz (E220/E220E)
30 to 70 kHz (E215E)
Vertical: 48 to 120 Hz
120 W
Approx. 404 413.5 419.5 mm (w/h/
3
5
d) (16 16
/
16
/
inches)
8
8
Approx. 20 kg (44 lb 1 oz)
DDC1/DDC2B/DDC2Bi
TRINITRON
S. Hemisphere Model
N. Hemisphere Model
* Recommended horizontal and vertical timing condition
• Horizontal sync width should be more than 1.0 sec.
• Horizontal blanking width should be more than 3.0 sec.
• Vertical blanking width should be more than 500 sec.
Design and specifications are subject to change without notice.
COLOR COMPUTER DISPLAY
®
[CPD-E220]
Equator Model
Chassis No. SCC-L35B-A
[CPD-E215E]
AEP Model
Chassis No. SCC-L35D-A
[CPD-E220E]
AEP Model
Chassis No. SCC-L35C-A
H1
CHASSIS

Advertisement

Table of Contents

   Also See for Sony CPD-E220

   Related Manuals for Sony CPD-E220

   Summary of Contents for Sony CPD-E220

  • Page 1: Service Manual

    CPD-E220/E215E/E220E SERVICE MANUAL 0.24 mm aperture grille pitch (center) 17 inches measured diagonally 90-degree deflection FD Trinitron Viewable image size Approx. 327 243 mm (w/h) 16.0" viewing image Resolution Maximum Horizontal: 1600 dots (E220/E220E) Vertical: 1200 lines (E220/E220E) 1024 lines (E215E)
  • Page 2 ON THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS AP- PEAR AS SHOWN IN THIS MANUAL OR IN SUPPLE- MENTS PUBLISHED BY SONY. CIRCUIT ADJUST- MENTS THAT ARE CRITICAL FOR SAFE OPERATION ARE IDENTIFIED IN THIS MANUAL.
  • Page 3: Power Saving Function

    Count the number of seconds between orange flashes of the 1 (power) indicator and inform your authorized Sony dealer of the monitor’s condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and video board.
  • Page 4: Timing Specification

    CPD-E220/E215E/E220E TIMING SPECIFICATION PRIMARY MODE MODE AT PRODUCTION MODE 1 RESOLUTION 640 X 480 CLOCK 25.175 MHz 56.250 MHz — HORIZONTAL — H-FREQ 31.469 kHz usec H. TOTAL 31.778 H. BLK 6.356 H. FP 0.636 H. SYNC 3.813 H. BP 1.907...
  • Page 5: Table Of Contents

    D (a, b, c, d) Board ... 5-13 5-5. Semiconductors ... 5-23 6. EXPLODED VIEWS 6-1. Chassis ... 6-1 6-2. Picture Tube ... 6-2 6-3. Packing Materials ... 6-3 7. ELECTRICAL PARTS LIST – 5 – CPD-E220/E215E/E220E Page ... 3-1 ... 7-1...
  • Page 6: Disassembly

    CN304 CN310 CN302 CN301 CN903 CN602 Connector (2P) D board Cable holder Cable CPD-E220/E215E/E220E Cabinet Two claws Cabinet Two screws (+BVTP 4 x 16) Three screws (+BVTT 3 x 12) Cable stopper Screw (+BVTT 3 x 8 ) I/O cable assembly...
  • Page 7: Service Position

    CPD-E220/E215E/E220E 2-3. SERVICE POSITION 2-4. PICTURE TUBE REMOVAL Degauss coil Neck assembly Deflection yoke Four screws (Hexagon) Anode cap (See page 2-3.) Two degauss coil holder A board A board CN307 CN602 Connector (2P) Cussion Picture tube Tention spring Two screws...
  • Page 8: H Board Removal

    3 Don’t turn the foot of rubber over hardly! The shatter-hook terminal will stick out or damage the rubber. 2 Using a thumb pull up the rubber cap firmly in the direction indicated by the arrow B. CPD-E220/E215E/E220E Screw (+BVTP 4 x 16) H bracket Claw...
  • Page 9: Harness Location

    CPD-E220/E215E/E220E 2-6. HARNESS LOCATION Degauss coil AC inlet H board Picture tube D board CN903 CN505 CN902 CN602 CN301 CN304 CN310 CN307 A board...
  • Page 10: Safety Related Adjustment

    Note: Use NF power supply or make sure that distortion Confirm that the voltage is within the voltage range shown below. VR501 Standard voltage: 179 CPD-E220/E215E/E220E : 120 2 VAC : (fH = 69 kHz), White Cross Hatch : CONT (max) & BRT (center) : 179 3.0 VDC...
  • Page 11: Adjustments

    CPD-E220/E220E/E215E Connect the communication cable of the computer to the connector located on the monitor. Run the service software and then follow the instruction. Computer as a Jig Landing Fine Adjustment 1. Put the set inside the Helmholtz coil. 2. Set TLH plate to zero position.
  • Page 12 = 0.359 Vertical and Horizontal Position and Size Specification Focus adjustment Adjust the focus volume 1 and 2 for the optimum focus. Focus 1 Focus 2 CPD-E220/E220E/E215E MODE All mode 0.30 mm 0.35 mm (2) 6500K 0.01 x = 0.313 0.01...
  • Page 22: Semiconductors

    5-5. SEMICONDUCTORS BH3863F M52743BSP BH3863F-E2 TOP VIEW 36 pin DIP ST72774 TOP VIEW 24 pin SOP LA78040 TOP VIEW 42 pin DIP TDA4841 TOP VIEW 32 pin DIP BF420 LM2415T DTC124ESA 2SC3400 LM358N M24C16BN6 UC3842A C3843A 24LC21/P TOP VIEW 8 pin DIP IRFU110 IRFU110A MCT7812CT...
  • Page 23: Exploded Views

    * A-1348-037-A D BOARD, COMPLETE [E215E] 0 1-453-358-11 TRANSFORMER, FLYBACK 1-757-540-11 I/O CABLE ASSY 9011097C2V 4-073-622-01 SPONGE 9011097C1N CPD-E220/E220E/E215E ¡ The components identified by mark are critical for safety. Replace only with part number specified. Les composants identifiés par une ¡...
  • Page 24: Picture Tube

    X-4038-292-1 BEZEL ASSY [E220] X-4038-570-1 BEZEL ASSY [E215E] 4-072-387-01 BUTTON, POWER 3-653-339-01 SPRING, COMPRESSION 4-042-353-11 EMBLEM (NO.7), SONY * A-1304-219-A H BOARD, COMPLETE 4-384-096-01 SCREW (4X16), TAPPING, +P 57 0 8-738-549-05 PICTURE TUBE (17TKB) (FILM INTENSITY SOUTH) [E220 for EQ, SH]...
  • Page 25: Packing Materials

    REF.NO. PART NO. DESCRIPTION 104 * 4-072-418-01 CUSION (LOWER) 105 * 4-079-271-01 INDIVIDUAL CARTON [E220E] 9012097C2V 105 * 4-079-570-01 INDIVIDUAL CARTON [E220] 9012097C1N 105 * 4-080-496-01 INDIVIDUAL CARTON [E215E] 901209E215 CPD-E220/E220E/E215E ¡ ¡ sont critiques pour la REMARK 9001097C2V 9001097C1N 900109E215...
  • Page 26: Electrical Parts List

    D105 8-719-970-82 DIODE HSS82 7183330556 D201 8-719-911-19 DIODE 1SS119-25 5156100T50 D202 8-719-911-19 DIODE 1SS119-25 CPD-E220/E220E/E215E CPD-E220/E220E/E215E DESCRIPTION REMARK RESISTORS • All resistors are in ohms • F : nonflammable • Items marked " * " are not stocked since they are seldom required for routine service.
  • Page 27 CPD-E220/E220E/E215E REF.NO. PART NO. DESCRIPTION D203 8-719-970-82 DIODE HSS82 D204 8-719-970-82 DIODE HSS82 D205 8-719-970-82 DIODE HSS82 D301 8-719-911-19 DIODE 1SS119-25 D302 8-719-911-19 DIODE 1SS119-25 D303 8-719-970-82 DIODE HSS82 D304 8-719-970-82 DIODE HSS82 D305 8-719-970-82 DIODE HSS82 <FERRITE BEAD> #4 FB001 1-414-793-21 BEAD, FERRITE 0.45 H...
  • Page 28 1-136-684-51 PETP FILM 5077104505 #4 C560 1-163-189-11 CERAMIC 100V 5116472511 #4 C561 1-163-007-11 5077104505 #4 C562 1-163-189-11 CERAMIC 100V 5116103511 #4 C563 1-104-661-91 ELECT CPD-E220/E220E/E215E (a)(d) DESCRIPTION REMARK 0.0047 F 100V 5116472511 100pF 7183101556 0.0033 F 5144332550 1000 F 5153102S25 100pF...
  • Page 29 CPD-E220/E220E/E215E REF.NO. PART NO. DESCRIPTION #4 C564 1-126-947-11 ELECT #4 C565 1-107-651-11 ELECT C566 Pending C567 Pending CERAMIC #4 C568 Pending CERAMIC C570 1-126-964-11 ELECT #4 C571 1-163-189-11 CERAMIC #4 C572 1-126-947-11 ELECT #4 C573 1-135-404-11 ELECT #4 C574 1-126-970-11 ELECT...
  • Page 30 Pending 4120502705 4120502705 FB620 1-469-611-11 BEAD, FERRITE 2 H 4120511900 FB622 1-469-611-11 BEAD, FERRITE 2 H 4120511900 FB624 1-469-611-11 BEAD, FERRITE 2 H 4120511900 4120104004 4130305406 CPD-E220/E220E/E215E DESCRIPTION REMARK 4130305404 4130305402 4130101041 4120511900 413010426C [E220 [NH]/E220E/E215E] 4130305402 4130305406 [E220 [NH]/E220E/ E215E]...
  • Page 31 CPD-E220/E220E/E215E REF.NO. PART NO. DESCRIPTION <IC> IC401 8-759-593-28 IC LA78040 IC501 Pending IC TDA4841 IC502 Pending IC UC3843A IC504 8-759-991-16 IC LM358N IC601 8-759-582-09 IC UC3842A IC602 8-749-016-36 IC TLP621D4-Y-LF2 IC603 8-759-466-12 IC TL431ACLP IC604 8-729-051-32 TRANSISTOR MCR100-8RL IC605 8-759-231-53 IC TA7805S...
  • Page 32 1/4W 4050510255 #4 R595 1-216-065-11 RES-CHIP 1/10W 4010168252 R596 Pending 1/4W 4050115355 R597 Pending 1/10W 4010147252 1/10W 4010110352 #4 R598 1-215-049-91 RES-CHIP CPD-E220/E220E/E215E DESCRIPTION REMARK 1/2W 4050110555 4177127153 1/2W 4050110455 1/2W 4050110455 [E220/E220E] 1/4W 4050547255 [E220/E220E] 1/10W 4010110352 [E220/E220E] RES-CHIP...
  • Page 33 CPD-E220/E220E/E215E REF.NO. PART NO. DESCRIPTION #4 R599 1-227-370-11 RES-CHIP R601 0 1-260-132-11 CARBON (SMALL) 560K R603 Pending METAL OXIDE 30K R605 Pending METAL OXIDE FILM 150K #4 R609 1-249-422-11 CARBON (SMALL) 2.7K #4 R610 1-216-001-11 RES-CHIP #4 R611 1-249-396-11 CARBON (SMALL) 18...
  • Page 34 SW701 1-771-734-11 SWITCH, TACTILE (MENU) 4410204018 4410604034 ****************************************************************************************** 5106152204 7050307C2U 7050207C2U 7050907C2U 7050507C2U 7051309R00 [E220 [NH]/E220E/E215E] 7050107C2U 710501003B 7106070027 CPD-E220/E220E/E215E (d)(h) DESCRIPTION REMARK RES, ADJ, CERMET 50K (HV ADJ) 5.22E+11 7152400010 H BOARD, COMPLETE **************************** 1000pF 7181102552 1000pF 7181102552 412065J620 2.15K...
