Raytech MC2 Instruction Manual page 9

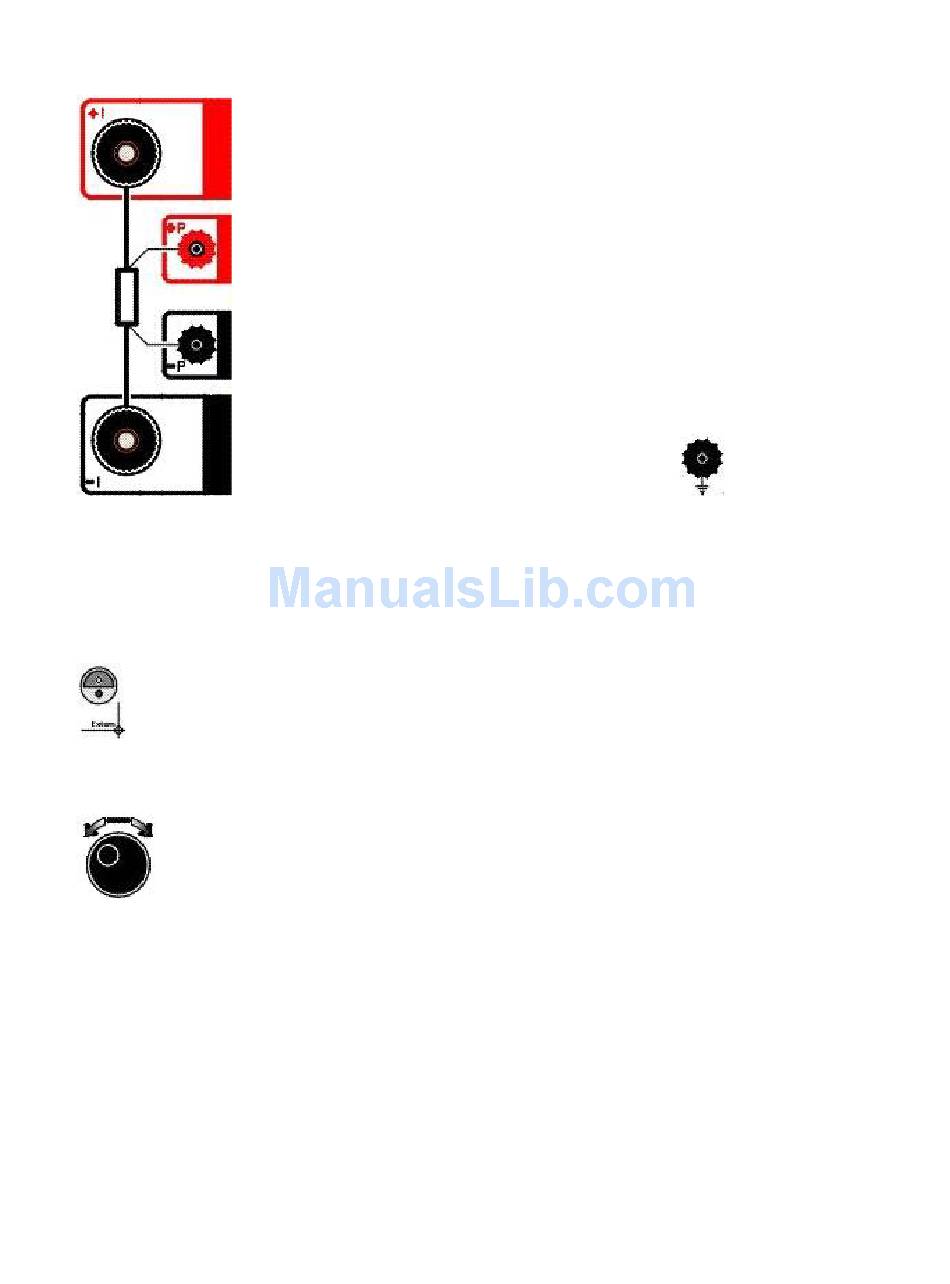

FRONT PANEL DESCRIPTION:
Test Connections:
+I = Positive Current connection
+P= Positive Potential (voltage) connection
-I = Negative Current connection
-P= Negative Potential (voltage) connection
Temperature Probe connection: 2 pin Connection for optional (external) temperature probe.
Buttons:
This is a multi-actuation, rotary knob which is the main user input and control
This rotary knob allows the user:
Raytech USA, Inc. All rights reserved
To select the current level and resistance range.
To setup the test system parameters.
To start a test sequence.
To store or print a test.
To put the test set into various measuring modes
To view archive data (previous test reports saved into memory).
Earth Ground Terminal
6 – 0
9
