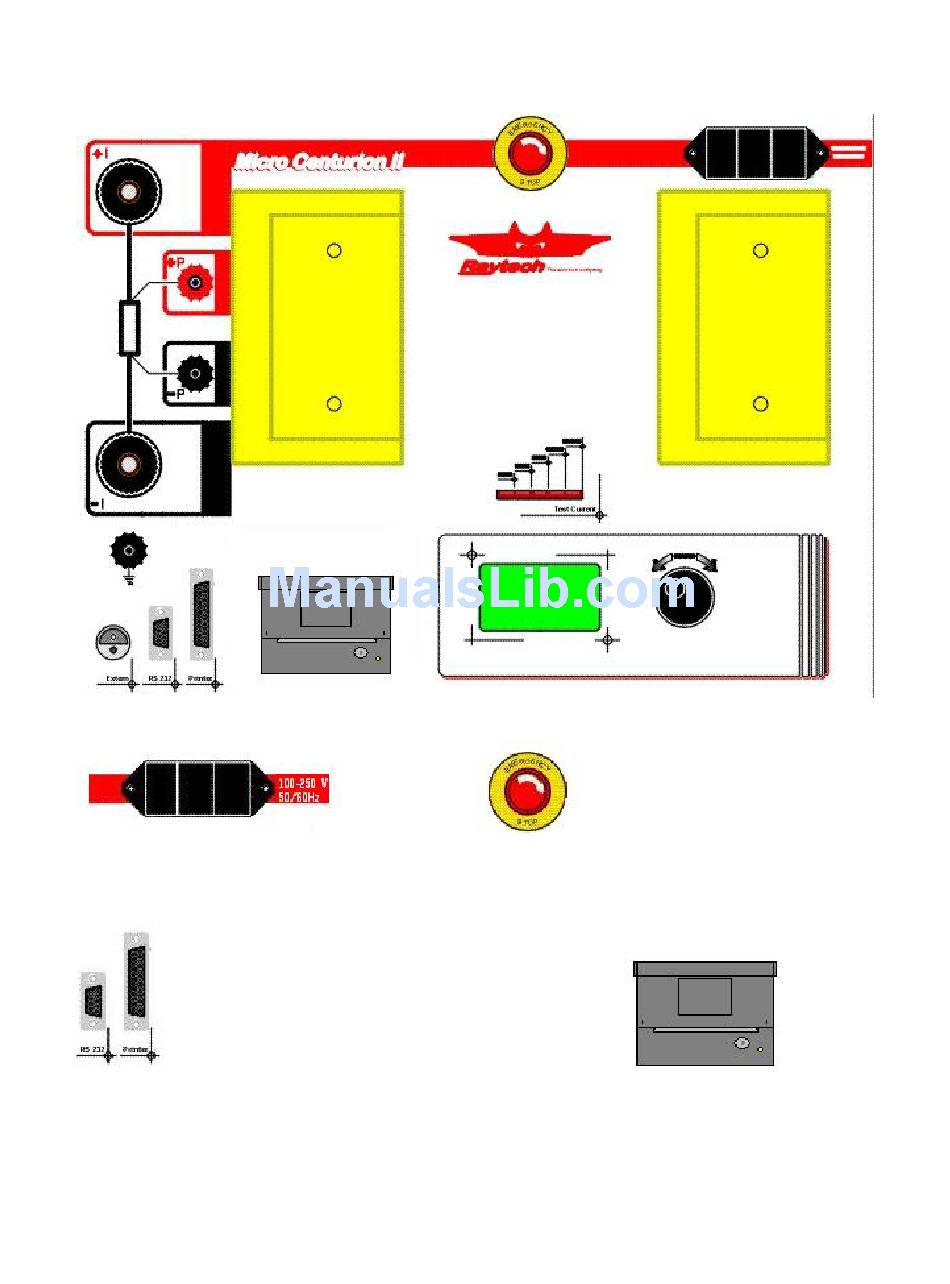

FRONT PANEL:

FRONT PANEL DESCRIPTION:

Power, Positive and Negative Test Leads, Emergency stop Button:
Power cord Connection and On/Off switch
Accepts 100...250 Vac
Computer Connections:
Serial Port: RS232 Bi - directional,
Female 9 pin connector (See Section 10)
Parallel Port: Standard Centronics,
Female 25 pin connector (See Section 10)
Raytech USA, Inc. All rights reserved
Emergency OFF
Press to stop - Turn Clockwise to release
Printer:
The panel mount printer uses
thermal heat transfer technology.
The single button is for form-feed.
To tear paper, pull towards the
front of the instrument along the
serrated cutting edge.
6 – 0
8
