7 – 0

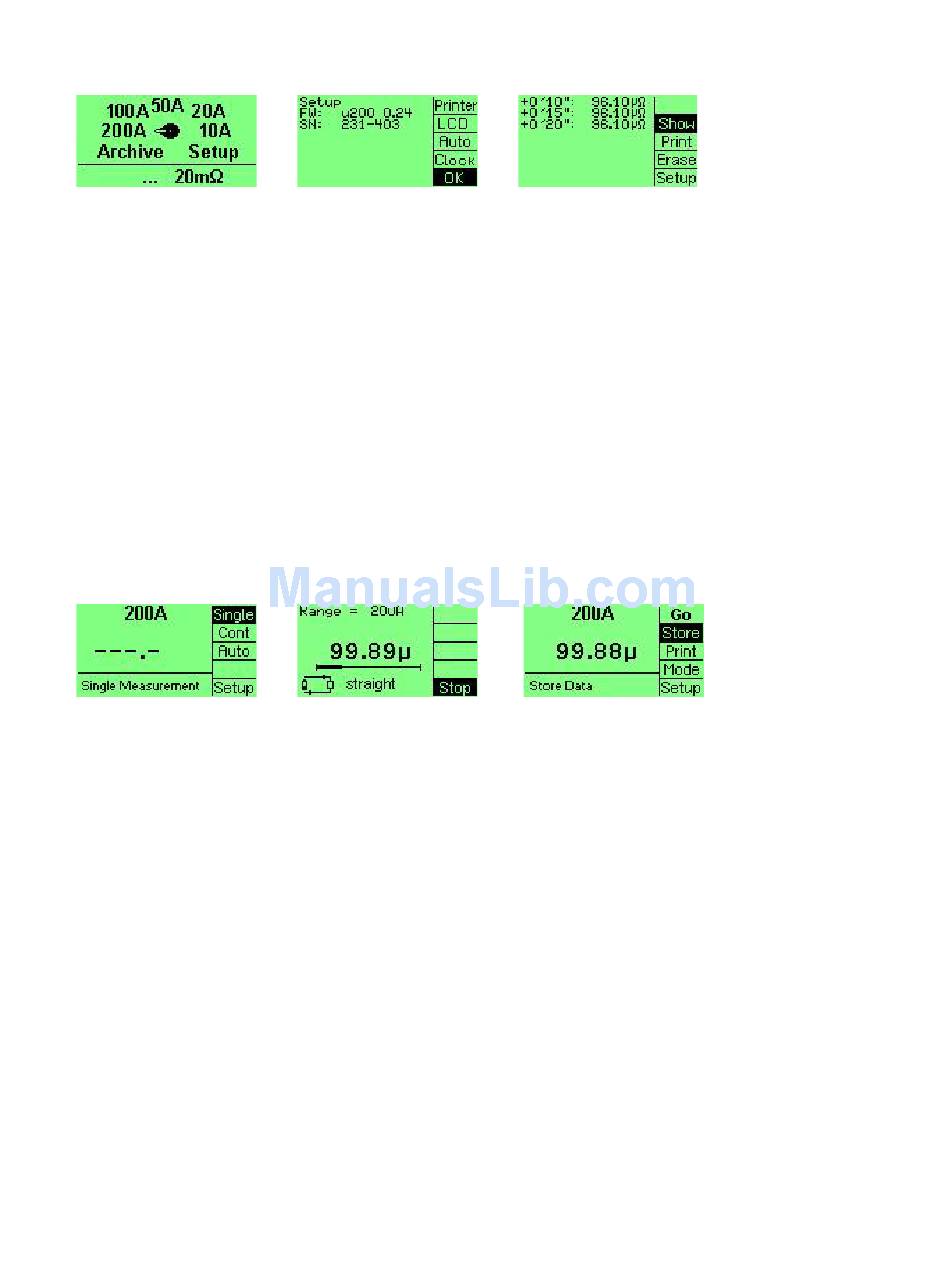

TYPICAL DISPLAY SCREENS:

MAIN SELECTION SETUP ARCHIVE
MAIN SELECTION Screen:
Allows access to the Archive (Memory), Setup and Resistance & Current test levels. Selection is
made by turning the rotary knob to the desired position then pressing down on the rotary knob to
confirm selection.
SETUP Screen:
All selections for Printer options, LCD Contrast, Auto Test mode and Clock adjustments.
Selections are made by turning the rotary knob to highlight the desired position then pressing the
rotary knob for the selection.
ARCHIVE Screen:
This is where the memory locations are kept.
SHOW: This selection will allow viewing of all of the memory locations.
PRINT: This selection will print all of the memory locations.
ERASE: This selection will erase all of the memory locations.
SETUP: This selection will return to the MAIN SELECTION screen.
START TEST TEST IN PROGRESS END OF TEST
START TEST Screen:
Selection of "Single" starts a test sequence for a single test with the duration of about 8 seconds.
Selection of "CONT" starts a continuous test sequence. In the continuous test mode the system
will measure until the user presses stop. Also, while testing in continuous mode the user may
Print or Store at test result at anytime.
Selection of "AUTO" puts the system into the "Automatic measure and save mode". The system
will measure and save data at "user selectable" time intervals into the system's memory location
(Archive).
TEST IN PROGRESS Screen:
This screen shows that the test is in progress and that there is current flowing.
END OF TEST Screen:
At the completion of a test the user can select to following:
GO: Run the same test again.
STORE: Store the results of a test in a memory location
PRINT: Print the results via the Internal printer, Serial or Parallel port output.
MODE: Select a different test mode: AUTO, SINGLE, or CONTinuous.
SETUP: Return to the Main Selection Screen.
Raytech USA, Inc. All rights reserved 10
