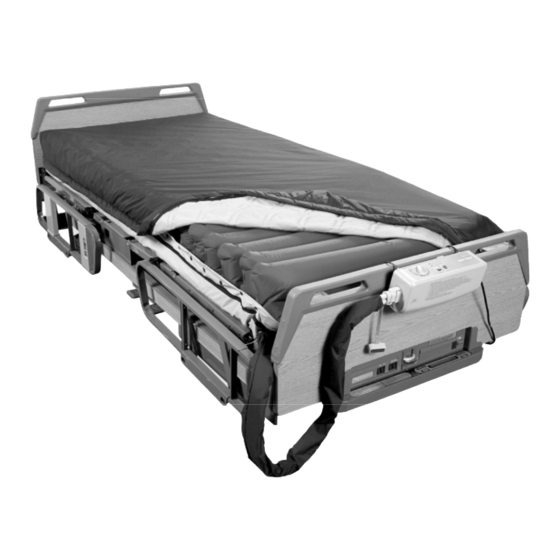

Alternating pressure / low air loss mattress

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATW8000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gaymar ATW8000

  • Page 2: Warranty

    The ATM800 Mattress is warranted free of defects in material and workmanship for a period of one (1) year. The Control Unit and Mattress are warranted under the terms and conditions of the Gaymar warranty in place at the time of purchase.
  • Page 3: Indications For Use

    Aire•Twin Mattress Replacement System Operator’s Manual 3.0 Indications for Use This device is intended to assist in treating and preventing pressure ulcers. 4.0 Contraindications Air support treatment is not recommended when spinal stability is a concern. 5.0 Safety Precautions Review the following SAFETY PRECAUTIONS prior to using an Aire•Twin System. DANGER Risk of electric shock.
  • Page 4: Control Panel

    Aire•Twin Mattress Replacement System Operator’s Manual 6.0 Description An Aire•Twin System is a portable air flotation system with alternating pressure and low-air-loss. It is designed to provide benefit to patients suffering from or at risk of developing pressure ulcers. The system, consisting of a Control Unit (ATC80) and an Air Flotation Mattress with a cover (ATM800) or top sheet (ATM500), is designed to provide pressure management and patient comfort.
  • Page 5: Instructions For Use

    If you can feel the patient’s body resting on your hand, adjust the pressure control to a higher setting. Wait 10 minutes and repeat the hand check. If the hand check fails, check that the hoses are not kinked or pinched. If repeated hand check fails and hoses are not kinked, contact Dealer or Gaymar for further instruction. WARNING...
  • Page 6 Aire•Twin Mattress Replacement System Operator’s Manual 9.0 CPR (Cardio Pulmonary Resuscitation) To deflate mattress for CPR: 1. Disconnect the quick-connect couplings of the mattress hose from the Control Unit. Mattress will begin deflating. 2. Proceed with CPR procedures after deflating mattress for 20 seconds. 3.
  • Page 7 Aire•Twin Mattress Replacement System Operator’s Manual 11.0 Specifications, Control Unit Specification ATC80 Enclosure Dimensions 11" x 5.5" x 3.5" (28cm x 14cm x 9cm) Weight 3.3 lb (1.5 kg) Power Cord 15’ (4.6 M) #18 AWG minimum, with ground Overcurrent Protection Primary 1A, 250V Input...
  • Page 8 Orchard Park, New York 14127-2295 www.gaymar.com Phone 1 800 828-7341 716 662-2551 1 800 993-7890 716 662-0748 In Canada contact: Waterloo Bedding Company, Ltd. 825 Trillium Drive Kitchener, Ontario, N2R 1J9 Phone 1 800 203-4293 519 742-4447 519 742-3699 ©2005 Gaymar Industries, Inc.

This manual is also suitable for:

Atw5000Atm800Atm500Atc80
