Summary of Contents for Gaymar TP702

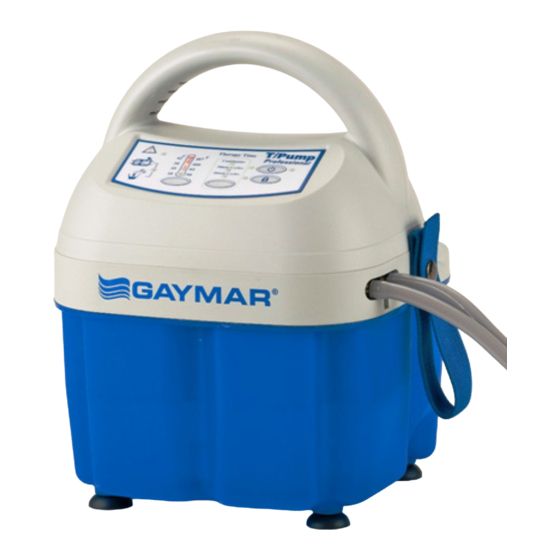

- Page 1 T/PUMP ® TP702 Localized Temperature Therapy System Operator's Manual [EN] 0086 www.gaymar.com P/N 101516000 Rev A 7/11...
-
Page 2: Table Of Contents
Gaymar without contacting our Technical Service Department for advice (see phone numbers below). If damaged PREVENTIVE MAINTENANCE/ goods are returned to Gaymar without notifying the carrier, Gaymar will SERVICE............15 assume the repairs will be made at the customer's expense. -
Page 3: Safety Precautions
• Only qualified medical service personnel should repair the T/Pump. Improper repair may result in death or serious injury, equipment damage, or malfunction. • Use T/Pump TP702 controls with Mul•T•Pads. For catalog numbers and descriptions, see page 3. • Do not place additional heat sources between the patient and pad. -
Page 4: Introduction
The Gaymar T/Pump ® Localized Temperature Therapy System provides therapy by warming or cooling the enclosed water, and circulating it through the Gaymar Mul•T•Pad. The pad is connected to the Gaymar T/Pump with easy-to-use Clik-Tite connectors. ® The Mul•T•Pad provides the interface for delivering the temperature therapy. - Page 5 Heavy Polymer, Reuseable. 10 per carton TP26E Mul•T•Pad: 18"w x 26"l (45cm x 66cm) Nonwoven fabric on one side, pliable polymer on the other side. 10 per carton To order any of these products contact your dealer or Gaymar's International Department at: International: +1 716-662-8636...
-
Page 6: Indications For Use
OPERATOR'S MANUAL INDICATIONS AND CONTRAINDICATIONS TP702 T/PUMP INDICATIONS FOR USE Localized temperature therapy is recommended in treating the following applications: Orthopedic Conditions such as: acute injuries, chronic pain, lower back pain, muscle spasm and strains Skin Trauma such as: abscesses, boils, bruises, burns and contusions... -
Page 7: Pump Features
10 ft (305 cm) dual hose. Connectors allow pads to be connected to the pump (Figures 1A and 1B, page 2). Flow indicator Indicates no flow. Turns off heater if pump is tipped. Warm/Cool Four temperature setpoints on the TP702. Delivery Therapy Cycles Choose from 20-minute, 30-minute, or Continuous cycles. -
Page 8: Keypad Features Tp702
OPERATOR'S MANUAL FEATURES TP702 T/PUMP KEYPAD FEATURES TP702 Figure 3: TP702 Keypad Indicator/ Warning Light See the Troubleshooting section on page 11. Water Flow Check hoses or clamps for kinks or occlusions. Water Level Check water level. Setpoints Press the button at the bottom of the setpoint indicator to toggle through the four setpoints. -
Page 9: Clik-Tite ® Connectors
OPERATOR'S MANUAL OPERATING INSTRUCTIONS TP702 T/PUMP CLIK-TITE CONNECTORS The TP702 T/Pump is supplied with Clik-Tite connectors. ® ® To connect and disconnect Clik-Tite connectors from hose to pad: ® Insert male fittings into female fittings with a twisting motion (Figures 4A and 4B). -
Page 10: Start-Up Procedure
OPERATOR'S MANUAL OPERATING INSTRUCTIONS TP702 T/PUMP START-UP PROCEDURE • • Pump must be filled with water prior to operation. 1. Before filling the pump, attach a pad to the connector hose. Make sure that there are no kinks in the hose or pad. Open the hose clamps. 2. Open the fill cap on top of the pump. -
Page 11: Therapy Cycles
OPERATOR'S MANUAL OPERATING INSTRUCTIONS TP702 T/PUMP 1. Turn the unit on, set the temperature setpoint. The unit will THERAPY CYCLES start to heat up. Select warming period for 20 (or 30) minute cycle, LED should be solid, and the selected temperature LED is flashing. -
Page 12: Troubleshooting
OPERATOR'S MANUAL TROUBLESHOOTING TP702 T/PUMP TROUBLESHOOTING Problem Possible Cause Remedy T/Pump will not turn on. The electrical cord is not plugged Insert the plug fully into the properly into a properly grounded Hospital grounded Hospital Grade receptacle. Grade receptacle. T/Pump will not pump. - Page 13 OPERATOR'S MANUAL TROUBLESHOOTING TP702 T/PUMP Problem Possible Cause Remedy Warning indicator on with unit Unit shut down in an over Empty the reservoir and refill with in Standby mode. temperature condition. room temperature water. Make sure all clamps are open.
- Page 14 OPERATOR'S MANUAL TROUBLESHOOTING TP702 T/PUMP Problem Possible Cause Remedy Both the Temperature and Unit is in “Off” Therapy cycle time. Indication only. Therapy Cycle Setpoint lights are blinking. T/Pump will not heat. Reservoir is empty. Refill with room temperature water to proper level.
-
Page 15: Storage / Cleaning
OPERATOR'S MANUAL STORAGE / CLEANING TP702 T/PUMP STORAGE / CLEANING Storage (Short term) Close the hose clamps. Less than 1 day Disconnect the pad. Connect ends of the connector hoses together, where applicable. Open the hose clamps. Leave water in the reservoir. - Page 16 OPERATOR'S MANUAL STORAGE / CLEANING TP702 T/PUMP Institutional Note: Change the water monthly or more often depending on use. (Hospital) Cleaning Clean the outer surfaces of the T/Pump with one of the following: Instructions • A damp cloth and soapy water.
-
Page 17: Preventive Maintenance/ Service
OPERATOR'S MANUAL MAINTENANCE TP702 T/PUMP PREVENTIVE DANGER WARNING MAINTENANCE / SERVICE Risk of electric shock. Disconnect power before servicing. WARNING WARNING Only qualified medical service personnel should repair the T/Pump in accordance with the Service Manual. Improper repair may result in death or serious injury, equipment damage, or malfunction. To obtain a copy of the Service Manual, contact your local dealer or Gaymar's International Department or visit our web site www.gaymar. -
Page 18: Specifications
OPERATOR'S MANUAL SPECIFICATIONS TP702 T/PUMP SPECIFICATIONS TP702 Classification Class I equipment with Type BF applied part suitable for continuous operation. Not classified for protection against ingress of liquid. Not classified for use in the presence of flammable anesthetics. Size (approx.) 11.5”... -
Page 19: Warranties
Free replacement of product where defects in materials and/or workmanship occur within 90 days from date of delivery, provided the product is returned with prior authorization prepaid to Gaymar Industries. Defective parts will be exchanged free of charge where defects in materials... - Page 20 Portable and mobile RF communications equipment can effect Medical Electrical Equipment. CAUTION ! The TP702 should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the TP702 should be observed to verify normal operation in the configuration in which it will be used.
- Page 21 RF communications equipment and the TP702. The TP702 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the TP702 can help prevent electromagnetic interferences by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the TP702 as recommended below, according to the maximum output power of the communications equipment.
- Page 22 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the TP702 is used exceeds the applicable RF compliance level above, the TP702 should be observed to verify normal operation.
- Page 23 OPERATOR'S MANUAL TP702 T/PUMP www.gaymar.com...
- Page 24 OPERATOR'S MANUAL TP702 T/PUMP GAYMAR INDUSTRIES, INC. 10 Centre Drive Orchard Park, NY 14127-2295 Phone: 716-662-8636 Fax: 716-662-0730 Stryker France S.A.S. T/PUMPS AND T/PADS ® ® ZAC - Avenue de Satolas Green 69881 MEYZIEU Cedex ARE MADE IN THE USA...
