T/PUMP

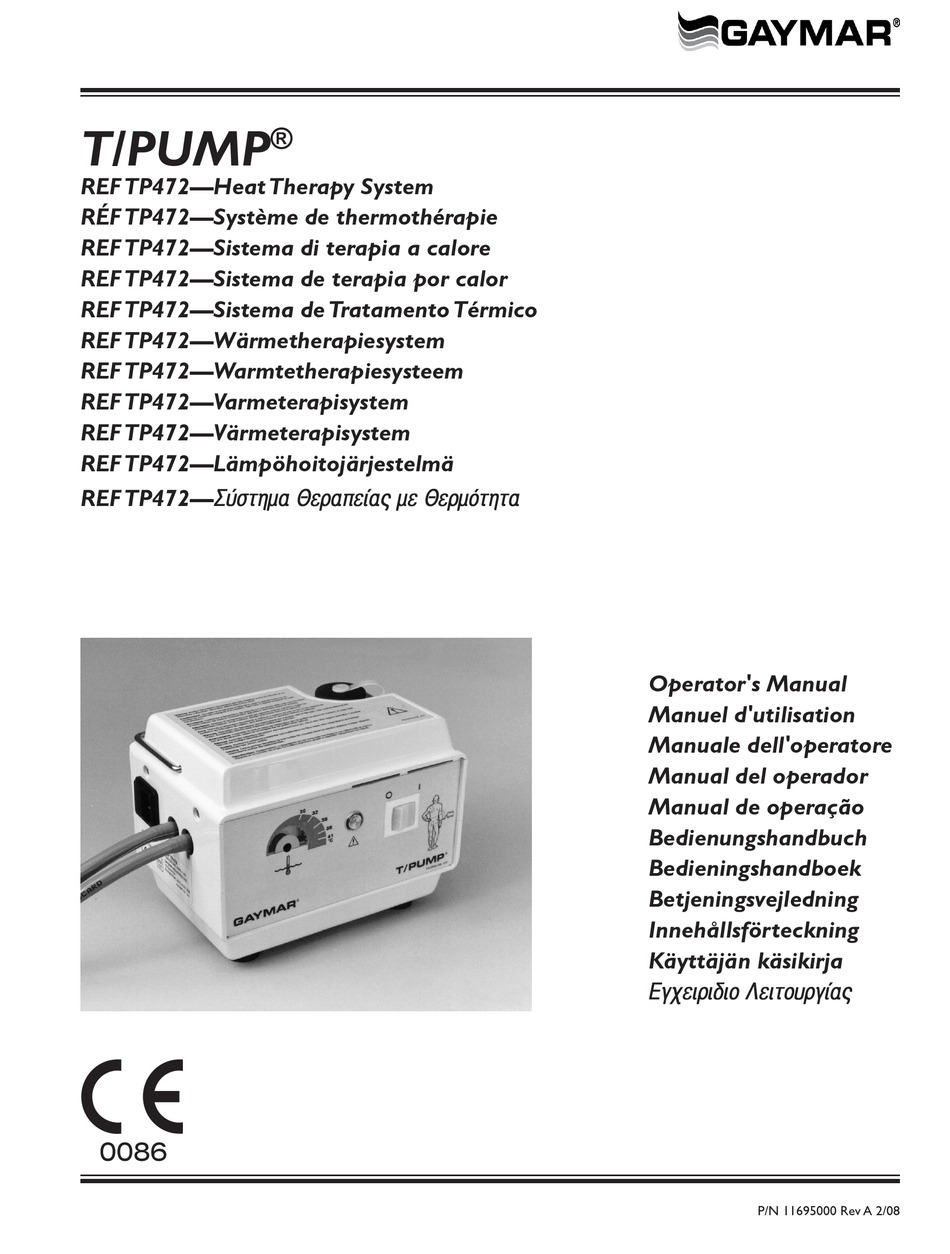

REF TP472—Heat Therapy System
RÉF TP472—Système de thermothérapie
REF TP472—Sistema di terapia a calore
REF TP472—Sistema de terapia por calor
REF TP472—Sistema de Tratamento Térmico
REF TP472—Wärmetherapiesystem
REF TP472—Warmtetherapiesysteem
REF TP472—Varmeterapisystem
REF TP472—Värmeterapisystem
REF TP472—Lämpöhoitojärjestelmä
REF TP472—Óýóôçìá Èåñáðåßáò ìå Èåñìüôçôá
®
Operator's Manual
Manuel d'utilisation
Manuale dell'operatore
Manual del operador
Manual de operação
Bedienungshandbuch
Bedieningshandboek
Betjeningsvejledning
Innehållsförteckning
Käyttäjän käsikirja
Åã÷åéñéäéï Ëåéôïõñãßáò
P/N 11695000 Rev A 2/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T/PUMP TP472 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gaymar T/PUMP TP472

Summary of Contents for Gaymar T/PUMP TP472

  • Page 1 T/PUMP ® REF TP472—Heat Therapy System RÉF TP472—Système de thermothérapie REF TP472—Sistema di terapia a calore REF TP472—Sistema de terapia por calor REF TP472—Sistema de Tratamento Térmico REF TP472—Wärmetherapiesystem REF TP472—Warmtetherapiesysteem REF TP472—Varmeterapisystem REF TP472—Värmeterapisystem REF TP472—Lämpöhoitojärjestelmä REF TP472—Óýóôçìá Èåñáðåßáò ìå Èåñìüôçôá Operator's Manual Manuel d'utilisation Manuale dell'operatore...

  • Page 2: Table Of Contents

    PRECAUTIONS (see page 3) prior to using the T/ documents Pump. Only qualified medical service personnel should repair Dangerous voltage the T/Pump, in accordance with the TP472 T/Pump Service Manual. Contact your local dealer or Gaymar's Technical Service Department for assistance: Recommended operating level (water) Telephone: (716) 662-8636...

  • Page 3: Indications For Use/Safety Precautions

    SAFETY PRECAUTIONS TP472 T/PUMP 1.0 Indications for Use This physiotherapy device is intended for the treatment of aches and pains in joints and muscles. 1.1 Safety Precautions Risk of electric shock. No user serviceable parts are inside. This device pumps warmed water through a pad.

  • Page 4: Description

    The Gaymar T/Pump Heat Therapy System provides a means of applying heat therapy by supplying temperature-controlled water through a connector hose to a Gaymar T/Pad. The hose is terminated in easy- to-use Clik-Tite connectors. The T/Pad provides the interface for delivering the heat therapy.

  • Page 5: Features

    FEATURES TP472 T/PUMP 3.0 Features Temperature 30–41°C; controls the temperature Setpoint of the water entering the T/Pad; accuracy, ±1°C at 41°C. Key-operated to prevent tampering. Tip-over Turns heater off if pump is tipped. Switch NOTE: This does not activate the OVER TEMP light.

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS TP472 T/PUMP 4.0 Operating Instructions—Start-up Use the TP472 T/Pump only with Gaymar a list of available Gaymar pads. 1. Before filling, always attach a T/Pad to the connector hose on the T/Pump or connect ends of the T/Pump hose together (see fig.

  • Page 7: Cleaning

    To clean the fluid system, prepare a germicidal solution according to the manufacturer's instructions. Use GAYMAR catalog REF MTA33. Drain the pump. Fill the reservoir to the operating level indicated on the side of the pump. Set the temperature indicator to its lowest setting (fully counterclockwise), start the T/Pump, and circulate the solution for one hour.

  • Page 8: Troubleshooting

    TROUBLESHOOTING/MAINTENANCE TP472 T/PUMP 7.0 Troubleshooting/Maintenance PROBLEM POSSIBLE CAUSE REMEDY "OVER TEMP" light Pad or hose is kinked. Hose clamps are Unkink pad or hose. Turn switch off, unplug is on. closed. pump, and empty water. Open hose clamps. Refill with room temperature distilled water to Water level is low, or reservoir is empty.

  • Page 9: Technical Specifications

    (1) year. The pump and pads are warranted under the terms and conditions of the Gaymar warranty in place at the time of purchase. A copy of the warranty is available upon request. Gaymar disclaims all implied warranties including, but not limited to, the implied warranties of merchantability and of fitness for a particular purpose.
  • Page 10 GAYMAR INDUSTRIES, INC 10 Centre Drive Orchard Park, NY 14127-2295 Authorized EU representative: Phone: INVATECH GmbH & Co. KG (716 662-8636 Königsreihe 22 FAX: T/PUMPS AND T/PADS ® ® D 22041 Hamburg, Germany (716) 662-0730 ARE MADE IN THE USA...
