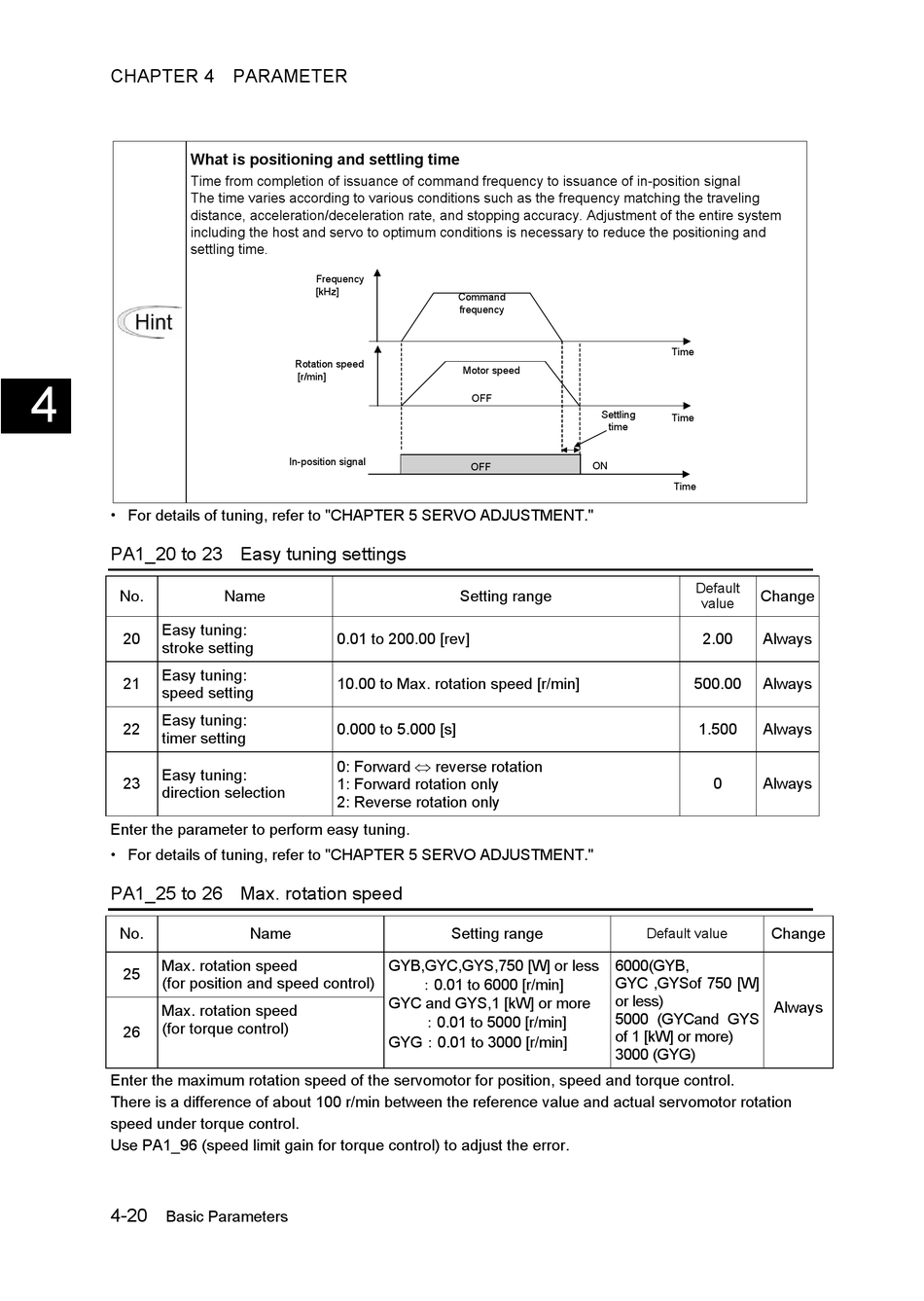

CHAPTER 4 PARAMETER
What is positioning and settling time
Time from completion of issuance of command frequency to issuance of in-position signal
The time varies according to various conditions such as the frequency matching the traveling
distance, acceleration/deceleration rate, and stopping accuracy. Adjustment of the entire system
including the host and servo to optimum conditions is necessary to reduce the positioning and
settling time.
4
 For details of tuning, refer to "CHAPTER 5 SERVO ADJUSTMENT."

PA1_20 to 23 Easy tuning settings

No.
Easy tuning:
20
stroke setting
Easy tuning:
21
speed setting
Easy tuning:
22
timer setting
Easy tuning:
23
direction selection
Enter the parameter to perform easy tuning.
 For details of tuning, refer to "CHAPTER 5 SERVO ADJUSTMENT."

PA1_25 to 26 Max. rotation speed

No.
Max. rotation speed
25
(for position and speed control)
Max. rotation speed
(for torque control)
26
Enter the maximum rotation speed of the servomotor for position, speed and torque control.
There is a difference of about 100 r/min between the reference value and actual servomotor rotation
speed under torque control.
Use PA1_96 (speed limit gain for torque control) to adjust the error.
4-20
Basic Parameters
Frequency
[kHz]
Rotation speed
[r/min]
In-position signal
Name
0.01 to 200.00 [rev]
10.00 to Max. rotation speed [r/min]
0.000 to 5.000 [s]
0: Forward  reverse rotation
1: Forward rotation only
2: Reverse rotation only
Name
GYB,GYC,GYS,750 [W] or less
GYC and GYS,1 [kW] or more
GYG：0.01 to 3000 [r/min]
Command
frequency
Motor speed
OFF
OFF
Setting range
Setting range
：0.01 to 6000 [r/min]
：0.01 to 5000 [r/min]
Time
Settling
Time
time
ON
Time
Default
Change
value
2.00 Always
500.00 Always
1.500 Always
0 Always
Default value
6000(GYB,
GYC ,GYSof 750 [W]
or less)
5000 (GYCand GYS
of 1 [kW] or more)
3000 (GYG)
Change
Always
