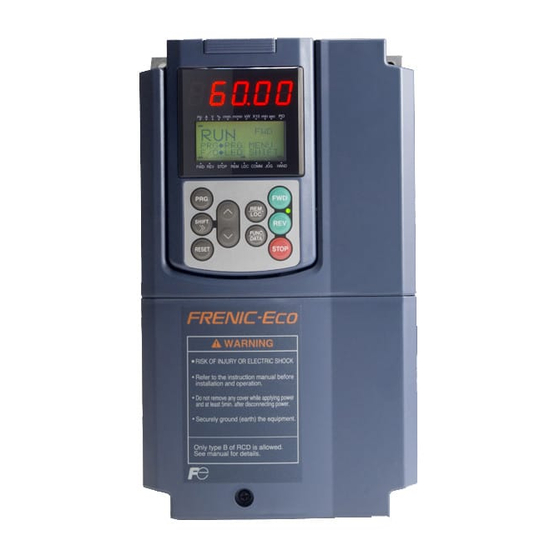

Designed for Fan and Pump Applications
Thank you for purchasing our FRENIC-Eco series of inverters.
• This product is designed to drive a three-phase induction motor. Read through this instruction manual and
be familiar with the handling procedure for correct use.
• Improper handling might result in incorrect operation, a short life, or even a failure of this product as well as
the motor.
• Deliver this manual to the end user of this product. Keep this manual in a safe place until this product is
discarded.
• For how to use an optional device, refer to the installation and instruction manuals for that optional device.
Fuji Electric FA Components & Systems Co., Ltd.
Fuji Electric Corp. of America
Instruction Manual
INR-SI47-1225-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRENIC-ECO and is the answer not in the manual?

Questions and answers

bryan
April 17, 2025

the frenic-eco dont have an output voltage even though i check the input voltage and it is normal working

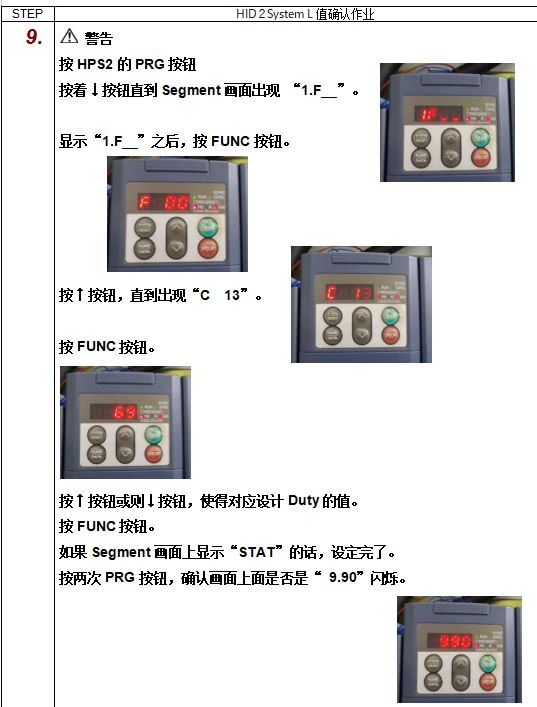

User image 6800f2fb21cd2
1 comments:
Mr. Anderson
May 9, 2025

Possible reasons for the Fuji Electric FRENIC-ECO not having an output voltage despite normal input voltage include:

1. A surge voltage protection event between power lines and ground.
2. Detection of a momentary power failure lasting more than 15 ms, causing the inverter to stop output.
3. An overload or overheating condition triggering alarm codes (0h1 or 0lu), which reduces or stops output frequency.
4. A broken wire or loss of frequency command, causing the inverter to switch to a preset reference frequency or issue an alarm.
5. Incorrect V/f settings or output voltage too low at low frequency due to variable torque settings.

These conditions can prevent normal inverter output even if input voltage is present.

This answer is automatically generated

Jeremiah Neal
July 14, 2025

We are reading a error six code and don’t know how to fix Compactor isn’t working

Summary of Contents for Fuji Electric FRENIC-ECO

  • Page 1 Instruction Manual Designed for Fan and Pump Applications Thank you for purchasing our FRENIC-Eco series of inverters. • This product is designed to drive a three-phase induction motor. Read through this instruction manual and be familiar with the handling procedure for correct use.
  • Page 2 Copyright © 2007 Fuji Electric FA Components & Systems Co., Ltd. All rights reserved. No part of this publication may be reproduced or copied without prior written permission from Fuji Electric FA Components & Systems Co., Ltd. All products and company names mentioned in this manual are trademarks or registered trademarks of their respective holders.
  • Page 3 Have this manual delivered to the end user of this product. Keep this manual in a safe place until this product is discarded. Listed below are the other materials related to the use of the FRENIC-Eco. Read them in conjunction with this manual as necessary.
  • Page 4 Fire or an accident could occur. • FRENIC-Eco may not be used for a life-support system or other purposes directly related to the human safety. • Though FRENIC-Eco is manufactured under strict quality control, install safety devices for applications where serious accidents or material losses are foreseen in relation to the failure of it.
  • Page 5 Wiring • When wiring the inverter to the power source, insert a recommended molded case circuit breaker (MCCB) residual-current-operated protective device (RCD)/a ground fault circuit interrupter(GFCI)(with overcurrent protection) in the path of power lines. Use the devices within the recommended current range. •...
  • Page 6 (Design the machinery or equipment so that human safety is ensured after restarting.) • If you set the function codes wrongly or without completely understanding this instruction manual and the FRENIC-Eco User's Manual, the motor may rotate with a torque or at a speed not permitted for the machine.
  • Page 7 • Do not turn the main circuit power (circuit breaker) ON or OFF in order to start or stop inverter operation. Doing so could cause failure. • Do not touch the heat sink because they become very hot. Doing so could cause burns. •...
  • Page 8 Conformity with Low Voltage Directive in the EU If installed according to the guidelines given below, inverters marked with CE can be considered to be compliant with the Low Voltage Directive 73/23/EEC. 1. Be sure to earth the grounding terminal z G. Use an earth wire sized more than that of the power wires used in the power dispatch system.
  • Page 9 Conformity with Low Voltage Directive in the EU (continued) 8. Use the wires listed in EN60204-1. Recommended wire size (mm MCCB or Main power Control circuit RCD/GFCI input Rated current [L1/R, L2/S, L3/T] Inverter type Inverter’s grounding [zG] Europe type terminal block FRN001F1S-2U FRN002F1S-2U...
  • Page 10 Conformity with UL standards and CSA standards (cUL-listed for Canada) UL/cUL-listed inverters are subject to the regulations set forth by the UL standards and CSA standards (cUL-listed for Canada) by installation within precautions listed below. 1. Solid state motor overload protection (motor protection by electronic thermal overload relay) is provided in each model.
  • Page 11 Conformity with UL standards and CSA standards (cUL-listed for Canada) (continued) 7. Install UL-listed fuses or circuit breaker between the power supply and the inverter, referring to the table below. Required torque Wire size Ib-in (N·m) AWG (mm Control Control Aux.
  • Page 12 Avoid such operation. Synchronous It is necessary to take special measures suitable for this motor type. motors Contact your Fuji Electric representative for details. Single-phase Single-phase motors are not suitable for inverter-driven variable speed motors operation. Use three-phase motors.
  • Page 13 Install a recommended molded case circuit breaker (MCCB) or Installing an residual-current-operated protective device (RCD)/a ground fault circuit MCCB or interrupter (GFCI) (with overcurrent protection) in the primary circuit of the RCD/GFCI inverter to protect the wiring. Ensure that the circuit breaker rated current is equivalent to or lower than the recommended rated current.
  • Page 14 Select an inverter according to the applicable motor ratings listed in the standard specifications table for the inverter. Driving general-purpose When high starting torque is required or quick acceleration or deceleration Selecting motor is required, select an inverter with a capacity one size greater than the inverter standard.
  • Page 15 This chapter lists specifications including output ratings, control system, external dimensions and protective functions. Chapter 9 LIST OF PERIPHERAL EQUIPMENT AND OPTIONS This chapter describes main peripheral equipment and options which can be connected to the FRENIC-Eco series of inverters. Chapter 10 CONFORMITY WITH STANDARDS This chapter describes standards with which the FRENIC-Eco series of inverters comply.
  • Page 16: Table Of Contents

    – "4. I/O CHECK" ........3-20 10.1.1 General ............10-1 3.4.6 Reading maintenance information 10.1.2 Considerations when using FRENIC-Eco – "5. MAINTENANC"........3-23 as a product certified by UL or cUL ..... 10-1 3.4.7 Reading alarm information – "6. ALM INF".. 3-26 10.2 Conformity with EU Directives ......
  • Page 17: Chapter 1 Before Using The Inverter

    1 to 9: January to September X, Y, or Z: October, November, or December Production year: Last digit of year If you suspect the product is not working properly or if you have any questions about your product, contact your Fuji Electric representative.
  • Page 18: External View And Terminal Blocks

    1.2 External View and Terminal Blocks (1) Outside and inside views (a) FRN015F1S-2U (b) FRN040F1S-2U (c) FRN350F1S-4U Figure 1.2 Outside and Inside Views of Inverters...
  • Page 19 (2) Warning plates and label Warning Plate Warning Plate Warning Label (a) FRN015F1S-2U (b) FRN040F1S-2U Figure 1.3 Warning Plates and Label (3) Terminal block location (a) FRN015F1S-2U (b) FRN040F1S-2U (c) FRN350F1S-4U Figure 1.4 Terminal Blocks and Keypad Enclosure Location...
  • Page 20: Transportation

    1.3 Transportation • When carrying an inverter, always support its bottom at the front and rear sides with both hands. Do not hold covers or individual parts only. You may drop the inverter or break it. • When hoisting an inverter with hoisting holes, hook or rope the 4 holes evenly. 1.4 Storage Environment 1.4.1 Temporary storage Store the inverter in an environment that satisfies the requirements listed in Table 1.1.
  • Page 21: Chapter 2 Mounting And Wiring Of The Inverter

    Chapter 2 MOUNTING AND WIRING OF THE INVERTER 2.1 Operating Environment Install the inverter in an environment that satisfies the requirements listed in Table 2.1. Table 2.1 Environmental Requirements Table 2.2 Output Current Derating Factor in Relation to Altitude Item Specifications Output Site location...
  • Page 22 For details, refer to the Mounting Adapter for External Figure 2.2 External Cooling Cooling "PB-F1" Installation Manual and FRENIC-Eco User’s Manual. Prevent lint, paper fibers, sawdust, dust, metallic chips, or other foreign materials from getting into the inverter or from accumulating on the heat sink.
  • Page 23 To utilize external cooling for inverters with a capacity of 40HP for 208V, 50HP for 460V or above, change the position of the top and bottom mounting bases from the edge to the center of the inverter as illustrated in Figure 2.3.
  • Page 24 Figure A Figure B Figure 2.3 Relocating the Top and Bottom Mounting Bases When moving the top and bottom mounting bases, use only the specified screws. A fire or an accident may be caused.
  • Page 25 Mount the inverter vertically to the mounting surface and fix it securely with four screws or bolts so that the logo "FRENIC-Eco" can be seen from the front. Do not mount the inverter upside down or horizontally. Doing so will reduce the heat dissipation efficiency of the inverter and cause the overheat protection function to operate, so the inverter will not run.
  • Page 26: Wiring

    Fixing the keypad (for models of 30HP for 208V, 40HP for 460V or below) Remove the terminal block (TB) cover and the front cover. (For the procedure, refer to 2.3.1 “Removing and mounting the terminal block (TB) cover and the front cover.”) To fix the front cover and keypad, hold the front cover and the keypad together and tighten the two attached screws (provided as accessories) from the back of the keypad.
  • Page 27 Mounting the covers Put the front cover to the inverter case while fitting the edge of the front cover between the both hinges provided on the inverter case. Slide it upward until the front cover latches. Fit the latches on the terminal block (TB) cover in the holes provided to the front cover and push it towards the inverter case.
  • Page 28 (2) For inverters with a capacity of 40HP for 208V, 50HP for 460V to 125HP for 208V, 200HP for 460V Removing and mounting the covers To remove the front cover, loosen the four fastening screws on it, hold it with both hands, and slide it upward.
  • Page 29 (3) For inverters with a capacity of 250HP to 300HP Removing and mounting the covers To remove the lower front cover, loosen the five fastening screws on it, and hold it with both hands, and then slide it upward. You can do wiring works just removing the lower front cover. To remove the upper front cover, loosen the five screws on it while supporting it with a hand.
  • Page 30: Plate (For Models Of 1 To 25Hp For 208V And 1 To 30Hp For 460V)

    2.3.2 Removing and mounting the cable guide plate (for models of 1 to 25HP for 208V and 1 to 30HP for 460V) For inverters of 25HP for 208V, 30HP for 460V or below use the cable guide plate to secure IP20 protective structure.
  • Page 31: Terminal Arrangement Diagram And Screw Specifications

    2.3.3 Terminal arrangement diagram and screw specifications The table below shows the main circuit screw sizes, tightening torque and terminal arrangements. Note that the terminal arrangements differ according to the inverter types. Two terminals designed for grounding shown as the symbol, in Figures A to J make no distinction between a power supply source (a primary circuit) and a motor (a secondary circuit).
  • Page 32 Charing Figure J Lamp R0 T0 L2/S L3/T L1/R P(+) N(-) Charing Figure K Lamp R0 T0 L1/R L2/S L3/T P(+) N(-) Charing Figure L Lamp R0 T0 L1/R L2/S L3/T L1/R L2/S L3/T P(+) N(-) Figure M Charing Lamp R0 T0 L1/R L2/S...
  • Page 33 (2) The control circuit terminals (common to all models) Screw size: M3 Tightening torque: 4.4 to 5.3lb-in(0.5 to 0.6 (N·m)) Table 2.7 Control Circuit Terminals Dimension of openings in the control circuit terminals Bared wire length Screwdriver to be used Allowable wire size (Head style) Flat head...
  • Page 34: Recommended Wire Sizes

    2.3.4 Recommended wire sizes Table 2.8 lists the recommended wire sizes. Those for main circuits are examples for using a single wire (for 60/75°C(140/167°F)) at an ambient temperature of 50°C(122°F). Table 2.8 Recommended Wire Sizes Recommended wire size (mm ) *1 Main circuits Nominal Main circuit power...
  • Page 35: Wiring Precautions

    2.3.5 Wiring precautions Follow the rules below when performing wiring for the inverter. (1) Make sure that the source voltage is within the rated voltage range specified on the nameplate. (2) Be sure to connect the three-phase power wires to the main circuit power input terminals L1/R, L2/S and L3/T of the inverter.
  • Page 36 Follow the procedure below for wiring and configuration of the inverter. Figure 2.12 illustrates the wiring procedure with peripheral equipment. Wiring procedure Grounding terminals ( G) Inverter output terminals (U, V, W, and DC reactor connection terminals (P1 and P(+)) * Switching connectors * (For the models of 208 V 50HP or above, for 460 V 75HP or above.
  • Page 37 Grounding terminals ( G) Be sure to ground either of the two grounding terminals for safety and noise reduction. The inverter is designed to use with a safety grounding to avoid electric shock, fire and other disasters. Grounding terminals should be grounded as follows: 1) Ground the inverter in compliance with the national or local electric code.
  • Page 38 DC reactor terminals, P1 and P (+) Remove the jumper bar from terminals P1 and P(+). Connect a DC reactor (option) to terminals P1 and P(+). • The wiring length should be 33ft(10 m) or below. • Do not remove the jumper bar if a DC reactor is not going to be used. •...
  • Page 39 Fan power supply switching connectors (CN R) and (CN W) (for models of 50HP or above (208 V) or 75HP or above (460 V)) The standard FRENIC-Eco series of inverters also accept DC-linked power input in combination with a power regenerative PWM converter (RHC series). Even when you drive the inverter with a DC-linked power, however, you also need to supply AC power for models of 50HP or above (208 V) or 75HP or above (460 V), since it contains components such as AC fans that are driven by AC power.
  • Page 40 Setting up the jumpers for the connectors (CN UX), (CN R) and (CN W) These switching connectors are located on the power printed circuit board (power PCB) mounted at the right hand side of the control printed circuit board (control PCB) as shown below. Switching Connectors for Power Input (CN UX)
  • Page 41 Figure 2.16 shown below illustrates how the configuration jumpers of the connectors (CN UX), (CN R) and (CN W) are setup by factory defaults, and to change their settings for a new power configuration. Setting up the power switching connector (CN UX) (for the models of 460 V 75HP or above) (CN UX) (Red)
  • Page 42 These are provided for the DC link bus powered system. Connect these terminals with terminals P(+) and N (-) of other inverters. Consult your Fuji Electric representative if these terminals are to be used. Main circuit power input terminals, L1/R, L2/S, and L3/T (three-phase input) 1) For safety, make sure that the molded case circuit breaker (MCCB) or magnetic contactor (MC) is turned off before wiring the main circuit power input terminals.
  • Page 43 When connecting a PWM converter with an inverter, do not connect the power supply line directly to terminals R0 and T0. If a PWM is to be connected, insert an insulation transformer or auxiliary B contacts of a magnetic contactor at the power supply side. For connection examples at the PWM converter side, refer to the PWM Converter Instruction Manual.
  • Page 44: Wiring For Control Circuit Terminals

    2.3.7 Wiring for control circuit terminals In general, sheaths and covers of the control signal cables and wires are not specifically designed to withstand a high electric field (i.e., reinforced insulation is not applied). Therefore, if a control signal cable or wire comes into direct contact with a live conductor of the main circuit, the insulation of the sheath or the cover might break down, which would expose the signal wire to a high voltage of the main circuit.
  • Page 45 Table 2.10 Symbols, Names and Functions of the Control Circuit Terminals Symbol Name Functions [13] Potenti- Power supply (+10 VDC) for the potentiometer that gives the frequency command ometer (Potentiometer: 1 to 5kΩ) power Allowable output current: 10 mA supply [12] Voltage (1) The frequency is commanded according to the external analog input voltage.
  • Page 46 Table 2.10 Continued Symbol Name Functions - Since low level analog signals are handled, these signals are especially susceptible to the external noise effects. Route the wiring as short as possible (within 66ft(20 m)) and use shielded wires. In principle, ground the shielded sheath of wires; if effects of external inductive noises are considerable, connection to terminal [11] may be effective.
  • Page 47 Table 2.10 Continued Symbol Name Functions [X1] Digital (1) The various signals such as coast-to-stop, alarm from external equipment, and input 1 multistep frequency commands can be assigned to terminals [X1] to [X5], [FWD] and [REV] by setting function codes E01 to E05, E98, and E99. For details, refer to [X2] Digital Chapter 5, Section 5.2 "Overview of Function Codes."...
  • Page 48 Table 2.10 Continued Symbol Name Functions Using a relay contact to turn [X1], [X2], [X3], [X4], [X5], [FWD], or [REV] ON or OFF Figure 2.23 shows two examples of a circuit that uses a relay contact to turn control signal input [X1], [X2], [X3], [X4], [X5], [FWD], or [REV] ON or OFF.
  • Page 49 Table 2.10 Continued Symbol Name Functions The monitor signal for analog DC voltage (0 to +10 V) or analog DC current (+4 to +20 [FMA] Analog mA) is output. You can select either one of the output switching the slide switch SW4 on monitor the control PCB (Refer to Section 2.3.8.), and changing data of the function code F29.
  • Page 50 Table 2.10 Continued Symbol Name Functions [Y1] Transistor (1) Various signals such as inverter running, speed/freq. arrival and overload early output 1 warning can be assigned to any terminals, [Y1] to [Y3] by setting function code E20, E21 and E22. Refer to Chapter 5, Section 5.2 "Overview of Function Codes" for details.
  • Page 51 Table 2.10 Continued Symbol Name Functions [Y5A/C] General (1) A general-purpose relay contact output usable as well as the function of the purpose transistor output terminal [Y1], [Y2] or [Y3]. Contact rating: 250 VAC 0.3 A, cos φ = 0.3, 48 VDC, 0.5 A relay output (2) Switching of the normal/negative logic output is applicable to the following two contact output modes: "Active ON"...
  • Page 52 Functions RS-485 (1) This extends the functions of inverter to the below in addition to the RJ-45 communications connector to communicate on FRENIC-Eco . data (+) terminal - The inverter can be controlled as a subordinate device (slave) by RS-485...
  • Page 53 Wiring for control circuit terminals For models of FRN200F1S-4U to FRN350F1S-4U Route the control circuit cable in keeping with the left side panel of the inverter as shown in Figure 2.28. Fasten the control circuit cable to the cable tie support with a cable tie (insulation lock) as shown in Figure 2.28.
  • Page 54: Setting Up Slide Switches And Handling Control Circuit Terminal Symbol Plate

    2.3.8 Setting up slide switches and handling control circuit terminal symbol plate Before changing the switches or touching the control circuit terminal symbol plate, turn OFF the power and wait more than five minutes for models of 30HP for 208V, 40HP for 460V or below, or ten minutes for models of 40HP for 208V, 50HP for 460V or above.
  • Page 55: Mounting And Connecting A Keypad

    Figure 2.29 shows the location of slide switches for the input/output terminal configuration. Switching example SINK SOURCE RS-485 comm. port terminator Figure 2.29 Location of the Slide Switches 2.4 Mounting and Connecting a Keypad 2.4.1 Mounting style and parts needed for connection (1) Mounting style You can mount a keypad in any style described below.
  • Page 56: Mounting/Installing Steps

    (2) Parts needed for connection To mount/install a keypad on a place other than an inverter, parts listed below are needed. Parts name Model Remarks 3 cables available in length of 16.4ft, 9.8ft, and Extension cable (Note 1) CB-5S, CB-3S and CB-1S 3.3ft(5m, 3m, and 1m).
  • Page 57 Remove the standard keypad mounted on the inverter (see Figure 2.32) and, using a Remote Operation Extension Cable or a LAN cable, interconnect the Multi-function Keypad and the Inverter (insert one end of the cable into the RS-485 port with RJ-45 connector on the Multi-function Keypad and the other end into that on the inverter) (See Figure 2.34.).
  • Page 58: Cautions Relating To Harmonic Component Noise, And Leakage Current

    2.5 Cautions Relating to Harmonic Component, Noise, and Leakage Current (1) Harmonic component Input current to an inverter includes a harmonic component, which may affect other loads and power factor correcting capacitors that are connected to the same power source as the inverter. If the harmonic component causes any problems, connect a DC reactor (option) to the inverter.
  • Page 59: Chapter 3 Operation Using The Multi-Function Keypad

    Chapter 3 OPERATION USING THE MULTI-FUNCTION KEYPAD 3.1 Key, LED, and LCD Monitors on the Keypad The keypad allows you to start and stop the motor, view various data including maintenance information and alarm information, set function codes, monitor I/O signal status, copy data, and calculate the load factor. 7-segment LED monitor LED indicator...
  • Page 60 Table 3.1 Overview of Keypad Functions Monitor, LED Item Functions indicator or Key Five-digit, 7-segment LED monitor which displays the following according to the operation modes: In Running Mode: Running status information (e.g., output frequency, current, and voltage) In Programming Mode: same as above In Alarm Mode: Alarm code, which identifies the cause of alarm if the...
  • Page 61 Calculated torque, load factor, speed r/min Motor speed, set motor speed, load shaft speed, set load shaft speed Unit of Number m/min Line speed, set line speed (Not applicable to FRENIC-Eco) Displayed on LED Monitor Input power, motor output Data greater than 99,999...
  • Page 62: Overview Of Operation Modes

    * Alarm code: Indicates the cause of the alarm condition that has triggered a protective function. For details, refer to the FRENIC-Eco Instruction Manual, Chapter 8, Section 8.5 "Protection Features." Figure 3.1 shows the status transition of the inverter between these three operation modes.
  • Page 63: Running Mode

    To run the motor in reverse direction, or to run the motor in reversible mode, change the setting of function code F02. For details of function code F02, refer to the FRENIC-Eco Instruction Manual, Chapter 5. Figure 3.2 Rotational Direction of Motor Note) The rotational direction of IEC-compliant motor is opposite to the one shown here.
  • Page 64 (2) When function code E45 (LCD Monitor (optional)) is set to "1," the LCD Monitor displays the output frequency, output current, and calculated torque in a bar chart. (The indicators above the LCD Monitor indicate the unit of the number displayed on the LED Monitor; the indicators underneath the LCD Monitor indicate the running status and the source of Run command.) The full scale (maximum value) for each parameter is as follows: Output frequency:...
  • Page 65 (Figure 3.5) given below. For further details on how to set operation commands and frequencies in Remote and Local modes, refer to the FRENIC-Eco User’s Manual, Chapter 4 "BLOCK DIAGRAMS FOR CONTROL LOGIC" (especially Section 4.3 “Drive Command Generator” block diagram).
  • Page 66: Setting Up The Frequency And Pid Process Commands

    3.3.2 Setting up the frequency and PID process commands You can set up the desired frequency command and PID process command by using keys on the keypad. You can also view and set up the frequency command as load shaft speed by setting function code E48. Setting the frequency command Using keys (factory default)
  • Page 67 • The frequency setting can be saved either automatically as mentioned above or by pressing the key. You can choose either way using function code E64. • When you start specifying or changing the frequency command or any other parameter with the key, the lowest digit on the display will blink and start changing.
  • Page 68 (frequency command) with keys; if it is set to any other value, you may access the PID process command with those keys. Refer to the FRENIC-Eco User's Manual for details on the PID control. Setting the PID process command with keys (1) Set function code J02 to "0: Keypad operation."...
  • Page 69 • Even if multistep frequency is selected as the PID process command ((SS4) = ON), you still can set the process command using the keypad. • When function code J02 is set to any value other than 0, pressing the key displays, on the 7-segment LED monitor, the PID command currently selected, while you cannot change the setting.
  • Page 70: Led Monitor (Monitoring The Running Status)

    3.3.3 LED monitor (Monitoring the running status) The eleven items listed below can be monitored on the LED Monitor. Immediately after the inverter is turned ON, the monitor item specified by function code E43 is displayed. In Running Mode, press the key to switch between monitor items.
  • Page 71: Programming Mode

    3.4 Programming Mode Programming Mode provides you with the functions of setting and checking function code data, monitoring maintenance information and checking input/output (I/O) signal status. The functions can be easily selected with a menu-driven system. Table 3.7 lists menus available in the Programming Mode. Table 3.7 Menus Available in Programming Mode Menu # Menu...
  • Page 72: Setting Function Codes – "1. Data Setting"

    "Change when running" column in 5.1 "Function Code Tables" in Chapter 5 of the FRENIC-Eco Instruction Manual. For details of function codes, refer to 5.1 "Function Code Tables" in Chapter 5 of the FRENIC-Eco Instruction Manual. Figure 3.10 illustrates LCD screen transition for Menu item 1. DATA SET.
  • Page 73 Basic key operation This section will give a description of the basic key operation, following the example of the function code data changing procedure shown in Figure 3.11. This example shows you how to change function code F03 data (maximum frequency) from 58.0 Hz to 58.1 Hz. (1) When the inverter is powered ON, it automatically enters Running Mode.
  • Page 74 Press key to enter Menu. Select desired menu by shifting the pointer with key. Press key to finalize desired menu. Press key to return to Menu. Select desired function code by moving the cursor with key. Press key to finalize desired function code. Press key to change function code data.
  • Page 75: Setting Up Function Codes Quickly Using Quick Setup – "0. Quick Set"

    If you perform data initialization (function code H03), the set of function codes subject to Quick Setup will be reset to the factory default. For the list of function codes subject to Quick Setup by factory default, refer to the FRENIC-Eco Instruction Manual, Chapter 5 "FUNCTION CODES."...
  • Page 76: Monitoring The Running Status 3. Opr Mntr"

    3.4.4 Monitoring the running status –"3. OPR MNTR" Menu #3 "OPR MNTR" allows you to check the running status during maintenance and test running. The display items for "Drive Monitoring" are listed in Table 3.9. Table 3.9 Drive Monitoring Display Items Symbol Item Description...
  • Page 77 Select desired menu by moving the pointer with key. Press key to finalize desired menu. Output frequency Reserved Output current Output voltage Calculated torque Frequency command Running direction, status Common operation: To confirm data, call the desired page using key. Press key to return Motor shaft speed...
  • Page 78: Checking I/O Signal Status 4. I/O Check"

    3.4.5 Checking I/O signal status – "4. I/O CHECK" Menu #4 "I/O CHECK" in Programming mode allows you to check the digital and analog input/output signals coming in/out of the inverter. This menu is used to check the running status during maintenance or test run. Table 3.10 lists check items available.
  • Page 79 Select desired menu by moving the pointer with key. Press key to finalize desired menu. Input signal at control circuit terminal block Highlighted when short-circuited; normal when open Input signal coming via communication link Highlighted when 1; normal when 0 Output signal Highlighted when ON;...
  • Page 80 (0 through F). In the FRENIC-Eco Series, digital input terminals [FWD] and [[REV] are assigned to bits 0 and 1, and [X1] through [X5] to bits 2 through 6, respectively. Each bit assumes a value of "1" when the corresponding signal is (Note) ON and a value of "0"...
  • Page 81: Reading Maintenance Information 5. Maintenanc"

    Shows the current capacitance of the DC bus capacitor as % of the Capacitance of the DC bus capacitor capacitance at factory shipment. Refer to the FRENIC-Eco Instruction Manual, Chapter 7 "MAINTENANCE AND INSPECTION" for details. Shows the cumulative run time of the motor.
  • Page 82 Basic key operation (1) When the inverter is powered ON, it automatically enters Running Mode. In Running Mode, press the key to enter Programming Mode. The menu for function selection will be displayed. (2) Select "5. MAINTENANC" by using keys (moving (3) Press the key to display the screen for Maintenance (1 page out of a total of 7 pages).
  • Page 83 Select desired menu by moving the pointer with key. Press key to finalize desired menu. Cumulative run time DC link circuit voltage Max. temperature inside the inverter Max. temperature of heat sink Max. effective current Capacitance of the DC bus capacitor Cumulative motor run time Cumulative run time of electrolytic capacitor (reference)
  • Page 84: Reading Alarm Information – "6. Alm Inf"

    3.4.7 Reading alarm information – "6. ALM INF" Menu #6 "ALM INF" in Programming Mode allows you to view the information on the four most recent alarm conditions that triggered protective functions (in alarm code and the number of occurrences). It also shows the status of the inverter when the alarm condition occurred.
  • Page 85 Basic key operation (1) When the inverter is powered ON, it automatically enters Running Mode. In Running Mode, press the key to enter Programming Mode. The menu for function selection will be displayed. (2) Select "6. ALM INF" by using keys (moving (3) Press the key to get the Alarm list screen, which displays information on the four most recent alarm...
  • Page 86 Press key to finalize desired alarm info. Output frequency Output current Output voltage Calculated torque Frequency command Running direction/status Cumulative run time No. of startups DC link circuit voltage Temperature inside inverter Max. temperature of heat sink Common operation: Input signal status at terminal block To confirm data, of control circuit call the desired...
  • Page 87: Viewing Cause Of Alarm 7. Alm Cause"

    3.4.8 Viewing cause of alarm – "7. ALM CAUSE" Menu #7 "ALM CAUSE" in Programming Mode allows you to view the information on the four most recent alarm conditions that triggered protective functions (in alarm code and the number of occurrences). It also shows the cause of each alarm.
  • Page 88 Select desired menu by moving the pointer with key. Press key to finalize desired menu. Cause & No. of occurrences of most recent alarm Cause & No. of occurrences of 2 most recent alarm Cause & No. of occurrences of 3 most recent alarm Cause &...
  • Page 89: Data Copying – "8. Data Copy"

    3.4.9 Data copying – "8. DATA COPY" Menu #8 "Data Copying" in Programming Mode allows you to read function code data out of an inverter for which function codes are already set up and then to write such function code data altogether into another inverter, or to verify the function code data held in the keypad with the one in the inverter.
  • Page 90 2) Read Operation List of data copy operations Select desired operation by moving the cursor with key. Press key to finalize desired operation. Data selection screen Select desired data by moving the cursor with key. To go back to List of data copy operations, press key.
  • Page 91 3) Write operation List of data copy operations Select desired operation by moving the cursor with key. Press key to finalize desired operation. Data selection screen Select desired data by moving the cursor with key. To go back to List of data copy operations, press key.
  • Page 92 The function code data held in the keypad is incompatible with that in the inverter. (Either data may be non-standard; or a version upgrade performed in the past may have made the keypad or the inverter incompatible. Contact your Fuji Electric representative.) Figure 3.21 Menu Transition for "WRITE" (continued) If an ERROR screen or an ERROR Ver.
  • Page 93 4) Verify operation List of data copy operations Select desired operation by moving the cursor with key. Press key to finalize desired operation. Data selection screen Select data to be verified by moving the cursor with key. To go back to List of data copy operations, press key.
  • Page 94 The function code data held in the keypad is incompatible with that in the inverter. (Either data may be non-standard; or a version upgrade performed in the past may have made the keypad or the inverter incompatible. Contact your Fuji Electric representative.) Figure 3.22 Menu Transition for "VERIFY" (continued) If an ERROR screen or an ERROR Ver.
  • Page 95 5) Check operation List of data copy operations Select desired operation by moving the cursor with key. Press key to finalize desired operation. Data selection screen Select data to be checked by moving the cursor with key. To go back to List of data copy operations, press key.
  • Page 96: Measuring Load Factor – "9. Load Fctr"

    3.4.10 Measuring load factor – "9. LOAD FCTR" Menu #9 "LOAD FCTR" in Programming Mode allows you to measure the maximum output current, the average output current, and the average braking power. There are two modes of measurement: "hours," in which the measurement takes place for a specified length of time, and "start to stop,"...
  • Page 97 2) Selecting "hours set" mode Mode selection screen Select desired mode of measurement by moving the cursor with key. Select desired mode of measurement with key. Press key to finalize desired mode of measurement. Set time duration (Default: 1 hour) To go back to Mode selection, press key.
  • Page 98 3) Selecting "start to stop" mode Mode selection screen Select desired mode of measurement by moving the cursor with key. Confirmation screen If OK, press key. To go back to Mode selection, press key. Press key to signal "Ready." Waiting for Run command (Standby for measurement) Upon receiving Run command, the measurement will start.
  • Page 99: Changing Function Codes Covered By Quick Setup 10. User Set"

    3.4.11 Changing function codes covered by Quick setup – "10. USER SET" Menu #10 "USER SET" in Programming Mode allows you to change the set of function codes that are covered by Quick setup. Basic key operation (1) When the inverter is powered ON, it automatically enters Running Mode. In Running Mode, press the key to enter Programming Mode.
  • Page 100: Performing Communication Debugging 11. Comm Debug"

    3.4.12 Performing communication debugging – "11. COMM DEBUG" Menu #11 "COMM DEBUG" in Programming Mode allows you to view the data of communication-related function codes (S, M, W, X, and Z codes) to help debug programs for communication with an upper-level device. Basic key operation (1) When the inverter is powered ON, it automatically enters Running Mode.
  • Page 101: Alarm Mode

    3.5 Alarm Mode When a protective function is triggered, resulting in an alarm, the inverter automatically enters the alarm mode, displaying the alarm code on the LED Monitor and the details of the alarm on the LCD Monitor as shown below. If there is no overlapping alarm Most recent cause;...
  • Page 102 Display of running status information at the time of alarm By pressing the key while an alarm code is displayed, you can view the output frequency, output current, and other data concerning the running status. The data you can view is the same as with "6. ALM INF." Use keys for scrolling pages within the menu.
  • Page 103: Other Precautions

    3.6 Other Precautions For using a multi-function keypad note that your key operation will be differed from ones on a standard keypad (TP-E1) for following points. 3.6.1 Function code setting for F02 (Run and operation) key controls to run/stop the motor on the standard keypad (TP-E1) while the rotation command input is required.
  • Page 104: Tuning Motor Parameters

    3.6.3 Tuning motor parameters The LCD monitor of multi-function keypad shows the lead-through screen for tuning of motor parameters. To tune motor parameters follow screens below. Entering into tuning motor parameters Set data 1 or 2 into the function code P04 and press the key.
  • Page 105: Chapter 4 Running The Motor

    Especially check if the power wires are connected to the inverter input terminals L1/R, L2/S and L3/T, and output terminals U, V and W respectively and that the grounding wires are connected to the ground electrodes correctly. Note that FRENIC-Eco series inverter is designed for three phase input and driving three phase motors.
  • Page 106 Table 4.1 Settings of Function Code Data before Driving the Motor for a Test Function code Name Function code data Factory setting f 04 Base frequency 60.0 (Hz) 230 (V) Rated voltage f 05 (at base frequency) 460 (V) Motor ratings (printed on the Motor parameter p 02 Applicable motor rated capacity...
  • Page 107 An undervoltage or an alarm has been occurred. If any of these conditions has occurred, either eliminate the abnormal or error factor(s) and perform tuning again, or contact your Fuji Electric representative. If a filter other than Fuji optional output filter (OFL - - 4A) is connected to the inverter's output (secondary) circuit, the result of tuning can be unpredictable.
  • Page 108: Test Run

    If the user set the function codes wrongly or without completely understanding this Instruction Manual and the FRENIC-Eco User's Manual, the motor may rotate with a torque or at a speed not permitted for the machine. Accident or injury may result.
  • Page 109: Chapter 5 Function Codes

    5.1 Function Code Tables Function codes enable the FRENIC-Eco series of inverters to be set up to match your system requirements. Each function code consists of a 3-letter alphanumeric string. The first letter is an alphabet that identifies its group and the following two letters are numerals that identify each individual code in the group.
  • Page 110 If (BX) is OFF, the inverter coast-to-stops the motor The following tables list the function codes available for the FRENIC-Eco series of inverters If you find any [-] (not available here) mark in the related page column of the function code tables, refer to...
  • Page 111 F codes: Fundamental Functions The shaded function codes ( ) are applicable to the quick setup.
  • Page 112 (F code continued) The shaded function codes ( ) are applicable to the quick setup. When you make settings from the keypad, the incremental unit is restricted by the number of digits that the LED monitor can display. (Example) If the setting range is from -200.00 to 200.00, the incremental unit is: "1"...
  • Page 113 (F code continued) The shaded function codes ( ) are applicable to the quick setup. If the carrier frequency is set at 1 kHz or below, estimate the maximum motor output torque at 80% or less of the rated motor torque. F33 is displayed, but it is reserved for paticular manufacturers.
  • Page 114 (F code continued)
  • Page 115 E codes: Extension Terminal Functions...
  • Page 116 (E code continued)
  • Page 117 (E code continued) The shaded function codes ( ) are applicable to the quick setup. When you make settings from the keypad, the incremental unit is restricted by the number of digits that the LED monitor can display. (Example) If the setting range is from -200.00 to 200.00, the incremental unit is: "1"...
  • Page 118 (E code continued) When you make settings from the keypad, the incremental unit is restricted by the number of digits that the LED monitor can display. (Example) If the setting range is from -200.00 to 200.00, the incremental unit is: "1"...
  • Page 119 (E code continued) 5-11...
  • Page 120 C codes: Control Functions of Frequency When you make settings from the keypad, the incremental unit is restricted by the number of digits that the LED monitor can display. (Example) If the setting range is from -200.00 to 200.00, the incremental unit is: "1"...
  • Page 121 P codes: Motor Parameters The shaded function codes ( ) are applicable to the quick setup. 5-13...
  • Page 122 H codes: High Performance Functions 5-14...
  • Page 123 (H code continued) 5-15...
  • Page 124 (H code continued) When you make settings from the keypad, the incremental unit is restricted by the number of digits that the LED monitor can display. (Example) If the setting range is from -200.00 to 200.00, the incremental unit is: "1"...
  • Page 125 J codes: Application Functions When you make settings from the keypad, the incremental unit is restricted by the number of digits that the LED monitor can display. (Example) If the setting range is from -200.00 to 200.00, the incremental unit is: "1"...
  • Page 126 (J code continued) 5-18...
  • Page 127 (J code continued) 5-19...
  • Page 128 y codes: Link Functions 5-20...
  • Page 129 (y code continued) 5-21...
  • Page 130 ■208V Default setting Inverter type FRN001F1S-2U 3.16 3.16 1.00 3.16 1.39 4.61 10.32 0.20 FRN002F1S-2U 6.16 6.16 2.00 6.16 2.53 5.04 9.09 0.20 FRN003F1S-2U 8.44 8.44 3.00 8.44 3.23 3.72 24.58 0.20 FRN005F1S-2U 13.60 13.60 5.00 13.60 4.32 3.99 28.13 0.20 FRN007F1S-2U 20.19...
  • Page 131: Overview Of Function Codes

    5.2 Overview of Function Codes This section provides an overview of the function codes frequently used for the FRENIC-Eco series of inverter. For details of the function codes given below and other function codes not given below, refer to the FRENIC-Eco User’s Manual, Chapter 9 "FUNCTION CODES."...
  • Page 132 In addition to the run command (F02) described, there are several other sources available with priority over F02: Remote/Local switching, Communications link, Run forward command 2 (FWD2), and Run reverse command 2 (REV2). For details, refer to the block diagram in the FRENIC-Eco User’s Manual, Chapter 4, Section 4.3 "Drive Command Generator." 5-24...
  • Page 133 The table below shows relationship between keying and run commands in running per a keypad (F02 = 0, rotation direction is defined by the digital inputs). Keying on the keypad Digital inputs Results (Final command) (FWD) (REV) - - - -...
  • Page 134 Base Frequency Rated Voltage at Base Frequency Non-linear V/f Pattern (Frequency) Non-linear V/f Pattern (Voltage) These function codes specify the base frequency and the voltage at the base frequency essentially required for running the motor properly. If combined with the related function codes H50 and H51, these function codes may profile the non-linear V/f pattern by specifying increase or decrease in voltage at any point on the V/f pattern.
  • Page 135 Example: Normal (linear) V/f pattern V/f Pattern with Non-linear Point below the Base Frequency V/f Pattern with Non-linear Point above the Base Frequency 5-27...
  • Page 136 Acceleration Time 1 Deceleration Time 1 F07 specifies the acceleration time, the length of time the frequency increases from 0 Hz to the maximum frequency. F08 specifies the deceleration time, the length of time the frequency decreases from the maximum frequency down to 0 Hz. •...
  • Page 137 For details, contact your Fuji Electric representative. V/f characteristics The FRENIC-Eco series of inverters offers a variety of V/f patterns and torque boosts, which include V/f patterns suitable for variable torque load such as general fans and pumps or for special pump load requiring high start torque.
  • Page 138 Specifying a high torque boost level will generate a high torque, but may cause overcurrent due to over-excitation at no load. If you continue to drive the motor, it may overheat. To avoid such a situation, adjust torque boost to an appropriate level. When the non-linear V/f pattern and the torque boost are used together, the torque boost takes effect below the frequency on the non-linear V/f pattern’s point.
  • Page 139 Electronic Thermal Overload Protection for Motor F10 to F12 (Select motor characteristics, Overload detection level, and Thermal time constant) F10 through F12 specify the thermal characteristics of the motor for its electronic thermal overload protection that is used to detect overload conditions of the motor inside the inverter. F10 selects the motor cooling mechanism to specify its characteristics, F11 specifies the overload detection current, and F12 specifies the thermal time constant.
  • Page 140 Applicable Motor Rating and Characteristic Factors when P99 (Motor selection) = 0 or 4 Switching frequency Output current for Characteristic factor Thermal time Applicable for motor setting the thermal constant τ motor rating characteristic factor time constant (HP) (Factory default) (Imax) α1 α2...
  • Page 141 Example of Operating Characteristics 5-33...
  • Page 142 Restart Mode after Momentary Power Failure (Mode selection) Restart after Momentary Power Failure (Restart time) (Frequency fall rate) (Allowable momentary power failure time) F14 specifies the action to be taken by the inverter such as trip and restart in the event of a momentary power failure.
  • Page 143 Restart mode after momentary power failure (Basic operation) The inverter recognizes a momentary power failure upon detecting the condition that DC link bus voltage goes below the undervoltage level, while the inverter in running. If the load of the motor is light and the duration of the momentary power failure is extremely short, the voltage drop may not be great enough for a momentary power failure to be recognized, and the motor may continue to run uninterrupted.
  • Page 144 When the power is recovered, the inverter will wait 2 seconds for input of a run command. However, if the allowable momentary power failure time (H16) elapses after the power failure was recognized, even within the 2 seconds, the waiting time for a run command is canceled.
  • Page 145 Restart mode after momentary power failure (Allowable momentary power failure time) (H16) H16 specifies the maximum allowable duration (0.0 to 30.0 seconds) from an occurrence of a momentary power failure (undervoltage) until the inverter is to be restarted. Specify the coast-to-stop time during which the machine system and facility can be tolerated.
  • Page 146 Auto-restart after a recovery from momentary power failure (waiting time) (H13) This function specifies the time period from momentary power failure occurrence until the inverter reacts for restarting process. If the inverter starts the motor while motor’s residual voltage is still in a high level, a large inrush current may flow or an overvoltage alarm may occur due to an occurrence of temporary regeneration.
  • Page 147 Restart after momentary power failure (Frequency fall rate) (H14) During restart after a momentary power failure, if the inverter output frequency and the motor rotation cannot be harmonized with each other, an overcurrent will flow, activating the overcurrent limiter. If it happens, the inverter reduces the output frequency to match the motor rotation according to the reduction rate (Frequency fall rate: Hz/s) specified by H14.
  • Page 148 F18, C50 Bias, Bias Reference Point (Frequency command 1) C32, C34 Analog Input Adjustment for [12] (Gain, Gain reference point) C37, C39 Analog Input Adjustment for [C1] (Gain, Gain reference point) C42, C44 Analog Input Adjustment for [V2] (Gain, Gain reference point) When any analog input for frequency command 1 (F01) is used, it is possible to define the relationship between the analog input and the reference frequency by multiplying the gain and adding the bias specified by F18.
  • Page 149 (Point A) To set the reference frequency to 0 Hz for an analog input being at 1 V, set the bias to 0% (F18 = 0). Since 1 V is the bias reference point and it is equal to 10% of 10 V, set the bias reference point to 10% (C50 = 10).
  • Page 150 Starting Frequency Stop Frequency At the startup of an inverter, the initial output frequency is equal to the starting frequency. The inverter stops its output at the stop frequency. Set the starting frequency to a level that will enable the motor to generate enough torque for startup.
  • Page 151 Specifying a too low carrier frequency will cause the output current waveform to have a large amount of ripples (many harmonics components). As a result, the motor loss increases, causing the motor temperature to rise. Furthermore, the large amount of ripples tends to cause a current limiting alarm.
  • Page 152 Output adjustment (F30) F30 allows you to adjust the output voltage or current representing the monitored data selected by function code F31 within the range of 0 to 200%. Function (F31) F31 specifies what is output to the analog output terminal [FMA]. Function Meter scale Data for F31...
  • Page 153 Terminal [FMI] (Output Adjustment) (Function) For [FMI] The inverter outputs monitoring data including output frequency and output current via terminal [FMI] in analog current level. Output adjustment (F34) Setting this function code adjusts the output current level of the selected monitor item within 0 to 200% as well as the function code F30.
  • Page 154 Function code data Terminal commands assigned Symbol Active ON Active OFF 1000 (SS1) Select multistep frequency 1001 (SS2) 1002 (SS4) 1006 Enable 3-wire operation (HLD) 1007 Coast to a stop (BX) 1008 Reset alarm (RST) 1009 Enable external alarm trip (THR) 1011 Switch frequency command 2/1...
  • Page 155 Any negative logic (Active off) command cannot be assigned to the functions marked with "-" in the "Active OFF" column. The "Enable external alarm trip" and "Force to stop" are fail-safe terminal commands. For example, when data = "9" in "Enable external alarm trip," Active OFF (alarm is triggered when OFF);...
  • Page 156 Reset alarm -- (RST) (Function code data = 8) Turning this terminal command ON clears the (ALM) state--alarm output (for any fault). Turning it OFF erases the alarm display and clears the alarm hold state. When you turn the (RST) command ON, keep it ON for 10 ms or more. This command should be kept OFF for the normal inverter operation.
  • Page 157 This switching is realized by the "Switch normal/inverse operation" command. For details of PID control, refer to the FRENIC-Eco User’s Manual, Chapter 4, Section 4.9 "PID Frequency Command Generator" and Chapter 9, Section 9.2.6 "J codes."...
  • Page 158 • When the inverter is driven by an external analog frequency command sources (terminals [12], [C1], and [V2]): The "Switch normal/inverse operation" command (IVS) can apply only to the analog frequency command sources (terminals [12], [C1] and [V2]) in frequency command 1 (F01) and does not affect frequency command 2 (C30) or UP/DOWN control.
  • Page 159 "Enable communications link" command (LE) and "Select local (keypad) operation" command (LOC) are turned OFF. Refer to the FRENIC-Eco User’s Manual, Chapter 4, Section 4.3 "Drive Command Generator" for details.
  • Page 160 Run forward -- (FWD) (Function code data = 98) Turning this terminal command ON runs the motor in the forward direction; turning it OFF decelerates it to stop. This terminal command can be assigned only by E98 or E99. Run reverse -- (REV) (Function code data = 99) Turning this terminal command ON runs the motor in the reverse direction;...
  • Page 161 The table below lists functions that can be assigned to terminals [Y1], [Y2], [Y3], [Y5A/C], and [30A/B/C]. To make the explanations simpler, the examples shown below are all written for the normal logic (Active ON.) Function code data Functions assigned Symbol Active ON Active OFF...
  • Page 162 1061 Mount motor 1, commercial-power-driven (M1_L) 1062 Mount motor 2, inverter-driven (M2_I) 1063 Mount motor 2, commercial-power-driven (M2_L) 1064 Mount motor 3, inverter-driven (M3_I) 1065 Mount motor 3, commercial-power-driven (M3_L) 1067 Mount motor 4, commercial-power-driven (M4_L) 1068 Periodic switching early warning (MCHG) 1069 Pump control limit signal...
  • Page 163 Inverter running -- (RUN) (Function code data = 0) This output signal is used to tell the external equipment that the inverter is running at a starting frequency or higher. It comes ON when the output frequency exceeds the starting frequency, and it goes OFF when it is less than the stop frequency.
  • Page 164 Motor overload early warning -- (OL) (Function code data = 7) This output signal is used to issue a motor overload early warning that enables you to take an corrective action before the inverter detects a motor overload alarm and shuts down its output.
  • Page 165 Cooling fan in operation -- (FAN) (Function code data = 25) Under the cooling fan ON/OFF control enabled (H06 = 1), this output signal is ON when the cooling fan is in operation, and OFF when it is stopped. This signal can be used to make the cooling system of peripheral equipment interlocked for an ON/OFF control.
  • Page 166 Inverter output on -- (RUN2) (Function code data = 35) This output signal comes ON when the inverter is running at the starting frequency or below or the DC braking is in operation. Overload prevention control -- (OLP) (Function code data = 36) This output signal comes ON when the overload prevention control is activated.
  • Page 167 Frequency detection (FDT) (Detection level) Frequency detection (FDT) (Hysteresis width) This output signal comes ON when the output frequency exceeds the frequency detection level specified by E31, and it goes OFF when the output frequency drops below the “Frequency detection level (E31) – Hysteresis width (E32).” To utilize this feature, you need to assign FDT (data=2) to any of digital output terminals.
  • Page 168 Display Coefficient for Input Watt-hour Data 5_10 Use this coefficient (multiplication factor) for displaying the input watt-hour data ( ) in a part of maintenance information on the keypad. The input watt-hour data will be displayed as follows: E51 (Coefficient for input watt-hour data) × Input watt-hour (kWh) Setting E51 data to 0.000 clears the input watt-hour and its data to "0."...
  • Page 169 Detect Low Torque (Detection level) Detect Low Torque (Timer) The signal (U-TL) turns on when the torque calculated by the inverter with reference to its output current has dropped below the level specified by E80 for the time longer than the one specified by E81.
  • Page 170 Motor (Rated current) P03 specifies the rated current of the motor. Enter the rated value shown on the nameplate of the motor Motor (Auto-tuning) This function automatically detects the motor parameters and saves them in the inverter’s internal memory. Basically, you do not need to perform tuning if you use a Fuji standard motor with a standard connection with the inverter.
  • Page 171 Motor Selection Automatic control (such as auto-torque boost and auto-energy saving) or electronic thermal motor overload protection uses the motor parameters and characteristics. To match the property of a control system with that of the motor, select characteristics of the motor and set H03 (Data Initialization) to "2"...
  • Page 172 Auto-resetting (Times) Auto-resetting (Reset interval) While the auto-resetting feature is specified, even if the protective function subject to retry is activated and the inverter enters the forced-to-stop state (tripped state), the inverter will automatically attempt to reset the tripped state and restart without issuing an alarm (for any faults).
  • Page 173 Cooling Fan ON/OFF Control To prolong the life of the cooling fan and to reduce fan noise during running, the cooling fan is stopped when the temperature inside the inverter drops below a certain level while the inverter is stopped. However, since frequent switching of the cooling fan shortens its life, it is kept running for 10 minutes once it is started.
  • Page 174 Curvilinear acceleration/deceleration Acceleration/deceleration is linear below the base frequency (linear torque) but slows down above the base frequency to maintain a certain level of load factor (constant output). This acceleration/deceleration pattern allows the motor to accelerate or decelerate with the maximum performance of the motor.
  • Page 175 Searching for idling motor speed to follow The frequency drop caused by the current limiting control during auto search for idling motor speed is determined by the frequency fall rate specified by H14. To use the auto search, be sure to enable the instantaneous overcurrent limiting (H12 = 1). Select starting characteristic (STM) (Digital input signal) The (STM) terminal command specifies whether or not to perform auto search operation for idling motor speed at the start of running.
  • Page 176 Starting patterns The inverter makes its frequency shift in accordance with the starting patterns shown below to search the speed and rotation direction of the idling motor. When harmonization is complete between the motor speed (including its rotation direction) and the inverter output frequency, the frequency shift by auto search operation is terminated.
  • Page 177 Instantaneous Overcurrent Limiting H12 specifies whether the inverter invokes the current limit processing or enters the overcurrent trip when its output current exceeds the instantaneous overcurrent limiting level. Under the current limit processing, the inverter immediately turns off its output gate to suppress the further current increase and continues to control the output frequency.
  • Page 178 = 2 y98 = 2 y98 = 3 For details, refer to the FRENIC-Eco User’s Manual, Chapter 4 "BLOCK DIAGRAMS FOR CONTROL LOGIC" and the RS-485 communication User’s Manual or the Field Bus Option Instruction Manual. • When the (LE) terminal command is assigned to a digital input terminal and the terminal is ON, the settings of function code H30 and y98 are effective.
  • Page 179 Automatic Deceleration H69 specifies whether automatic deceleration control is to be enabled or disabled. During deceleration of the motor, if regenerative energy exceeds the level that can be handled by the inverter, overvoltage trip may happen. With automatic deceleration enabled, when the DC link bus voltage exceeds the level (internally fixed) for starting automatic deceleration, the output frequency is controlled to prevent the DC link bus voltage from rising further;...
  • Page 180 Cumulative Run Time of Motor You can view the cumulative run time of the motor on the keypad. This feature is useful for management and maintenance of the mechanical system. With this function code (H94), you can set the cumulative run time of the motor to any value you choose. For example, by specifying "0," you can clear the cumulative run time of the motor.
  • Page 181 Judgment on the life of DC link bus capacitors Whether the DC link bus capacitor (reservoir capacitor) has reached its life is determined by measuring the length of time for discharging after power off. The discharging time is determined by the capacitance of the DC link bus capacitor and the load inside the inverter. Therefore, if the load inside the inverter fluctuates significantly, the discharging time cannot be accurately measured, and as a result, it may be mistakenly determined that the life has been reached.
  • Page 182 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Select life Judge the Lower the judgment Detect Detect DC life of DC Detect input carrier Function criteria of output fan lock link bus phase loss frequency DC link bus phase loss capacitor automatically...
  • Page 183 Conversion table (Decimal to/from binary) Binary Binary Decimal Decimal Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 5-75...
  • Page 184 Dew Condensation Prevention (Duty) When the inverter is stopped, dew condensation on the motor can be prevented, by feeding DC power to the motor at regular intervals to keep the temperature of the motor above a certain level. To utilize this feature, you need to assign a terminal command (DWP) (dew condensation prevention) to one of general-purpose digital input terminals (function code data = 39).
  • Page 185: Chapter 6 Troubleshooting

    (1) First, check that the inverter is correctly wired, referring to Chapter 2 Section 2.3.6 "Wiring for main circuit terminals and grounding terminals." (2) Check whether an alarm code is displayed on the LED monitor. If any problems persist after the above recovery procedure, contact your Fuji Electric representative.
  • Page 186: If No Alarm Code Appears On The Led Monitor

    "I/O Checking" using the keypad. attempted was active, and the run command was * Refer to the FRENIC-Eco User’s Manual, Chapter 4. stopped. Correct any incorrect function code data settings (in H30, y98, etc.) or cancel the higher priority run command.
  • Page 187 Check the wiring connection. A DC reactor is equipped for 75HP for 208V, the DC reactor (DCR) 100HP for 460V or above models. FRENIC-Eco inverter cannot run without a DC rector. Connect the DC reactor correctly. Repair or replace wires for the DC reactor.
  • Page 188 Possible Causes What to Check and Suggested Measures (6) Overload Measure the output current. Lighten the load. (Adjust the damper of the fan or the value of the pump). (In winter, the load tend to increase.) Check if mechanical brake is working. Release the mechanical brake.
  • Page 189 Possible Causes What to Check and Suggested Measures (2) The external frequency Check that there is no noise in the control signal wires from external sources. command source device Isolate the control signal wires from the main circuit wires as far as was used.
  • Page 190 [ 6 ] The motor does not accelerate and decelerate at the set time. Possible Causes What to Check and Suggested Measures (1) The inverter ran the motor Check the data of function code H07 (Acceleration/deceleration pattern). by S-curve or curvilinear Select the linear pattern (H07 = 0).
  • Page 191: Problems With Inverter Settings

    6.2.2 Problems with inverter settings [ 1 ] Nothing appears on the LED monitor. Possible Causes What to Check and Suggested Measures (1) No power supplied to the Check the input voltage, output voltage and interphase voltage unbalance. inverter (main circuit Connect a molded case circuit breaker, a ground fault circuit interrupter power, auxiliary power for (with overcurrent protection) or a magnetic contactor.
  • Page 192: If An Alarm Code Appears On The Led Monitor

    6.3 If an Alarm Code Appears on the LED Monitor Quick reference table of alarm codes Alarm Alarm Name Refer to Name Refer to code code Fuse blown 6-13 Instantaneous overcurrent Charger circuit fault 6-13 Electronic thermal overload relay 6-14 Ground fault Overload 6-14...
  • Page 193 Implement noise control measures. For details, refer to "Appendix A" of the FRENIC-Eco User’s Manual. Enable the auto-resetting (H04). Connect a surge absorber to the coil or solenoid of the magnetic contactor causing the noise.
  • Page 194 Check if the DC link bus voltage was below the protective level when the noise. alarm occurred. Improve noise control. For details, refer to "Appendix A" of the FRENIC-Eco User’s Manual. Enable the auto-resetting (H04). Connect a surge absorber to the coil or solenoid of the magnetic contactor causing the noise.
  • Page 195 Tighten the terminal screws to the recommended torque. tight enough. (4) A single-phase motor has Single-phase motors cannot be used. Note that the FRENIC-Eco only been connected. drives three-phase induction motors. [ 7 ] Heat sink overheat Problem Temperature around heat sink rose.
  • Page 196 The 208V inverters with a capacity of 50HP or above and the 460V inverters with a capacity of 75HP or above each have a cooling fan/fans for heat sinks and a DC fan for internal air circulation (dispersing the heat generated inside the inverter). For their locations, refer to Chapter 1, Section 1.2 “External View and Terminal Blocks.”...
  • Page 197 Possible Causes What to Check and Suggested Measures (4) The set activation level Check the thermistor specifications and recalculate the detection voltage. (H27) of the PTC Reconsider the data of function code H27. thermistor for motor overheat protection was inadequate. (5) A PTC thermistor and Check the connection and the resistance of the pull-up resistor.
  • Page 198 [ 13 ] Electronic thermal overload relay Problem Electronic thermal function for motor overload detection was activated. Possible Causes What to Check and Suggested Measures (1) The characteristics of Check the motor characteristics. electronic thermal did not Reconsider the data of function codes P99, F10 and F12. match those of the motor Use an external thermal relay.
  • Page 199 This problem was caused by a problem of the printed circuit board (PCB) (on which the CPU is mounted). Contact your Fuji Electric representative. [ 16 ] Keypad communications error Problem A communications error occurred between the remote keypad and the inverter.
  • Page 200 [ 18 ] Option card communications error Problem A communications error occurred between the option card and the inverter. Possible Causes What to Check and Suggested Measures (1) There was a problem with Check whether the connector on the bus option card is properly mating with the connection between the connector of the inverter.
  • Page 201 [ 21 ] Tuning error Problem Auto-tuning failed. Possible Causes What to Check and Suggested Measures (1) A phase was missing Properly connect the motor to the inverter. (There was a phase loss) in the connection between the inverter and the motor. (2) V/f or the rated current of Check whether the data of function codes F04, F05, H50, H51, P02, and P03 the motor was not properly...
  • Page 202 Check if occurs each time power is switched on. This problem was caused by a problem of the printed circuit board (PCB) (on which the CPU is mounted). Contact your Fuji Electric representative. [ 24 ] RS-485 communications error Problem A communications error occurred during RS-485 communications.
  • Page 203: If An Abnormal Pattern Appears On The Led Monitor While No Alarm Code Is Displayed

    (1) The capacity is not set The inverter capacity needs to be modified again. properly on the control Contact your Fuji Electric representative. printed circuit board. (2) The contents of the The power supply printed circuit board needs to be replaced.
  • Page 204 [ 2 ] _ _ _ _ (under bar) appears Problem An under bar ( _ _ _ _ ) appeared on the LED monitor when you pressed the key or entered a run forward command (FWD) or a run reverse command (REV). The motor did not start. Possible Causes What to Check and Suggested Measures 5_01...
  • Page 205: Chapter 7 Maintenance And Inspection

    Chapter 7 MAINTENANCE AND INSPECTION Perform daily and periodic inspection to avoid trouble and keep reliable operation for a long time. Take care of the following items during work. • Before proceeding to the maintenance/inspection jobs, turn OFF the power and wait more than five minutes for models of 30HP for 208V, 40HP for 460V or below, or ten minutes for models of 40HP for 208V, 50HP for 460V or above.
  • Page 206 Table 7.1 Continued Check part Check item How to inspect Evaluation criteria 1) Abnormal noise and excessive 1) Visual or hearing 1), 2), 3), 4), 5) Structure such vibration inspection as frame and No abnormalities cover 2) Loosen bolts (tightened parts) 2) Retighten.
  • Page 207: List Of Periodical Replacement Parts

    Each part of the product has its own service life that will vary according to the environmental and operating conditions. It is recommended that the following parts be replaced as specified below. When the replacement is necessary, contact your Fuji Electric representative. Table 7.2 Replacement Parts...
  • Page 208 -2 Measuring the capacitance of the DC link bus capacitor (during power-off time under ordinary operating condition) In general, the discharging condition of the DC link bus capacitor during a power-off time under the ordinary operating condition at the end user’s installation is different from that under which the initial measurement is conducted at the time of factory shipment.
  • Page 209: Measurement Of Electrical Amounts In Main Circuit

    (2) Early warning of lifetime alarm For the components listed in Table 7.3, you can get an early warning of lifetime alarm at one of the transistor output terminals ([Y1] to [Y3]) and the relay contact terminals ([Y5A] - [Y5C], and [30A/B/C]) as soon as any of the conditions listed under the "Judgment level"...
  • Page 210: Insulation Test

    A dielectric strength test will cause breakage of the inverter similarly to the Megger test if the test procedure is wrong. When the dielectric strength test is necessary, contact your Fuji Electric representative. Megger test of main circuit Use a 500 VDC Megger and shut off the main power supply without fail during measurement.
  • Page 211: Inquiries About Product And Guarantee

    7.6 Inquiries about Product and Guarantee When making an inquiry Upon breakage of the product, uncertainties, failure or inquiries, report the following information to your Fuji Electric representative. Inverter type (Refer to Chapter 1, Section 1.1.) SER No. (serial number of equipment) (Refer to Chapter 1, Section 1.1.) Function codes and their data that you changed (Refer to Chapter 3, Section 3.4.3.) ROM version (Refer to Chapter 3, Section 3.4.6.) Date of purchase...
  • Page 212: Chapter 8 Specifications

    Chapter 8 SPECIFICATIONS 8.1 Standard Models 8.1.1 Three-phase 208V Item Specifications Type (FRN _ _ _ F1S-2U) Nominal applied motor 〔HP〕 Rated capacity 〔kVA〕 Rated voltage 〔V〕 Three-phase, 200V to 240V (With AVR function) Three-phase, 200V to 230V (With AVR function) Rated current 〔A〕...
  • Page 213: Three-Phase 460 V

    8.1.2 Three-phase 460 V ■ 1 to 75HP Item Specifications Type (FRN _ _ _ F1S-4U) Nominal applied motor 〔HP〕 Rated capacity 〔kVA〕 Rated voltage 〔V〕 Three-phase, 380 to 480V (With AVR function) Rated current 〔A〕 12.5 16.5 Overload capability 120% of rated current for 1min.
  • Page 214 ■ 100 to 900HP Item Specifications Type (FRN _ _ _ F1S-4U) Nominal applied motor 〔HP〕 Rated capacity 〔kVA〕 Rated voltage 〔V〕 Three-phase, 380 to 480V (With AVR function) Rated current 〔A〕 1040 Overload capability 120% of rated current for 1min. Rated frequency 50, 60Hz Three-phase, 380 to 440V, 50Hz...
  • Page 215: Specifications Of Keypad Related

    8.2 Specifications of Keypad Related 8.2.1 General specifications of keypad Table 8.1 General Specifications Items Specification Remarks Protective structure Front side: IP40, Back (mounting) side: IP20 Site to be installed In door Ambient -10 to 50°C (14 to 122°F) temperature Ambient humidity 5 to 95% RH, no condensation allowed No corrosive gas, no inflammable gas, no dust, and no direct...
  • Page 216: Data Transmission Specifications

    8.2.3 Data transmission specifications Table 8.4 Data Transmission Specification Items Specification Remarks Station address No need to specify. To use any keypad, no setup is needed for RS-485 Communications protocol Modbus-RTU communications related function codes y01 to y10 Synchronization system Asynchronous start-stop system because their data is ignored.
  • Page 217: Common Specifications

    8.3 Common Specifications...
  • Page 219: Terminal Specifications

    8.4 Terminal Specifications 8.4.1 Terminal functions For details about the main and control circuit terminals, refer to Chapter 2, Section 2.3.6 and Section 2.3.7 (Table 2.10), respectively.
  • Page 220: Running The Inverter With Keypad

    8.4.2 Running the inverter with keypad (Note 1) When connecting a DC reactor (DCR), first remove the short bar between terminals [P1] and [P+]. A DCR is optional for inverters below 75HP for 208V, 100HP for 460V but standard for inverters of 75HP for 208V, 100HP for 460V or above.
  • Page 221: Running The Inverter By Terminal Commands

    8.4.3 Running the inverter by terminal commands (Note 1) When connecting a DC reactor (DCR), first remove the short bar between terminals [P1] and [P+]. A DCR is optional for inverters below 75HP for 208V, 100HP for 460V but standard for inverters of 75HP for 208V, 100HP for 460V or above.
  • Page 222 (Note 5) Normally no need to be connected. Use these terminals when the inverter is equipped with a high power factor PWM converter with a regenerative facility. (Note 6) You can select the frequency command source either electronically by supplying a DC voltage signal (within the range of 0 to 10 V, 0 to 5 V, or 1 to 5 V) between terminals [12] and [11], or manually by connecting a frequency command potentiometer to terminals [13], [12], and [11].
  • Page 223: External Dimensions

    8.5 External Dimensions 8.5.1 Standard models Unit: inch (mm) 8-12...
  • Page 224 Unit: inch (mm) Power Dimensions [inch(mm)] Type supply φA φB voltage FRN007F1S-2U 5.58 0.63 1.06 1.34 8.66 7.72 2.50 1.83 1.83 10.2 9.37 (141.7) (16) 4.67 3.80 (27) (34) FRN010F1S-2U (220) (196) (63.5) (46.5) (46.5) (260) (238) (118.5) (96.5) 5.38 0.83 Three- FRN015F1S-2U...
  • Page 225 Unit: inch(mm) Power Dimensions [inch(mm)] Type supply voltage 12.6 9.45 21.7 20.9 10.0 5.51 FRN040F1S-2U (320) (240) (550) (530) (255) (140) FRN050F1S-2U 24.2 23.4 4.53 0.18 2xφ0.39 0.39 Three- (115) (4.5) (2xφ10) (10) 14.0 10.8 (615) (595) 10.6 6.10 FRN060F1S-2U phase (355) (275)
  • Page 226: Dc Reactor

    8.5.2 DC reactor Dimension [inch (mm)] Power Mass Mounting Terminal supply Inverter type Reactor [lbs(kg)] through through voltage hole for: hole for: 8.27 ± 0.39 3.98 ± 0.08 1.99 ± 0.04 7.28 3.19 4.92 4.92 FRN040F1S-2U DCR2-37C (210 ± 10) (101 ±...
  • Page 227: Multi-Function Keypad

    8.5.3 Multi-function Keypad Unit: inch(mm) 8-16...
  • Page 228: Protective Functions

    8.6 Protective Functions Alarm monitor output Name Description displays [30A/B/C] Overcurrent Stops the inverter output to protect the inverter from an During protection overcurrent resulting from overload. acceleration Short-circuit Stops the inverter output to protect the inverter from protection overcurrent due to a short-circuiting in the output circuit. During deceleration Ground fault...
  • Page 229 Alarm Name Description monitor output displays [30A/B/C] Ffus Blown fuse Upon detection of a fuse blown in the inverter’s main circuit, this function stops the inverter output. (Applicable to 125HP or above (for both 3-phase 208 V and 3- phase 460 V)) Abnormal Upon detection of an abnormal condition in the charger circuit inside the inverter, condition in...
  • Page 230 Alarm Name Description monitor output displays [30A/B/C] Operation Start The inverter prohibits any run operations and displays on the error check 7-segment LED monitor if any run command is present when: detection function - Powering up - An alarm is released (the key is turned ON or an alarm reset (RST) is input.) - "Enable communications link (LE)"...
  • Page 231: Chapter 9 List Of Peripheral Equipment And Options

    Chapter 9 LIST OF PERIPHERAL EQUIPMENT AND OPTIONS The table below lists the main peripheral equipment and options that are connected to the FRENIC-Eco. Use them in accordance with your system requirements. For details, refer to the FRENIC-Eco User's Manual, Chapter 6 "SELECTING PERIPHERAL EQUIPMENT."...
  • Page 232 Name of peripheral Function and application equipment Molded case circuit breaker Ground fault When connecting the inverter to the power supply, add a recommended molded case circuit interrupter circuit breaker and ground fault circuit interrupter in the path of power supply. Do not use * with overcurrent the devices with the rated current out of the recommenced range.
  • Page 233 In case the inter-phase unbalance factor of the commercial power supply exceeds 3%, you would need to take other measures such as increasing the capacity of the inverter. Contact your Fuji Electric representative. • In a DC link bus system (using terminals [P (+)] and [N (-)]), the AC reactor protects the...
  • Page 234 FRENIC5000P11S 10HP, 15HP, 25HP and 30HP models do not need this adapter. Attachment for This adapter allows you to mount your FRENIC-Eco series of inverters on the panel in such a external cooling way that the heat sink assembly may be exposed to the outside. Using this adapter greatly reduces heat radiated or spread inside your enclosure.
  • Page 235: Chapter 10 Conformity With Standards

    10.1.2 Considerations when using FRENIC-Eco as a product certified by UL or cUL If you want to use the FRENIC-Eco series of inverters as a part of UL Standards or CSA Standards (cUL-listed for Canada) certified product, refer to the related guidelines described on pages viii and ix.
  • Page 236: Harmonic Component Regulation In The Eu

    10.4 Harmonic Component Regulation in the EU 10.4.1 General When a general-purpose industrial inverter is to be used in the EU, the harmonics emitted from the inverter to power lines are strictly regulated as stated below. When an inverter whose rated input is 1kW or below is connected to a public low-voltage power supply, it is subject to the harmonics emission regulations (users A and B below), except when the inverter is connected to an industrial low-voltage power supply (user C below).
  • Page 237: Conformity With The Emc Directive In The Eu

    EMC-compliant filter (option) and install it in accordance with the instructions contained in this instruction manual. Install the Fuji inverter in a metal enclosure. To use Fuji EMC-filter built-in inverters, refer to the FRENIC-Eco Instruction Manual Supplement for EMC-Filter Built-in Type, Chapter 10, "CONFORMITY WITH STANDARDS."...
  • Page 238 Table 10.1 EMC-compliant Filters and Leakage Current Power Leakage current (mA) * EMC-compliant Inverter type Installation style supply filter model Normal condition Worst condition voltage FRN001F1S-2U FRN002F1S-2U EFL-4.0E11-2 2.96 2.96 FRN003F1S-2U FRN005F1S-2U FRN007F1S-2U EFL-7.5E11-2 10.6 10.6 FRN010F1S-2U 20.0 23.0 EFL-15SP-2 FRN015F1S-2U Split style FRN020F1S-2U...
  • Page 239: Recommended Installation Of Emc-Compliant Filter

    10.5.3 Recommended installation of EMC-compliant filter This section shows how to install an EMC-compliant filter. In the footmount style, mount the inverter on the EMC-compliant filter. In the split style, mount the filter beside or under the inverter. For the footmount style, inverters with ratings of 460 V 7.5HP and 20HP require a panel-mount adapter (option) as listed below.
  • Page 240: Emc-Compliant Environment And Class

    Shielded cable with overcurrent protection Figure 10.3 Installation of EMC-Compliant Filter (Option) 10.5.4 EMC-compliant environment and class The table below lists the capacity and power supply voltage of the FRENIC-Eco and the EMC-compliant environment. Power Inverter capacity Standards supply...
  • Page 241 FRN150F1S-4U 1) Remove the front cover. (Refer to Chapter 2, Section 2.3 "Wiring.") 2) Change wiring at points A and B shown in the internal location diagram below. Figure 10.4 Internal Location Diagram (FRN150F1S-4U) Point A As shown below, remove the screw (M4) to release the wire end terminal and secure the terminal to the support with the screw removed.
  • Page 242 FRN200F1S-4U 1) Remove the front cover. Refer to Chapter 2, Section 2.3 "Wiring." 2) Change wiring at points A and B shown in the internal location diagram below. Figure 10.7 Internal Location Diagram (FRN200F1S-4U) Point A As shown below, remove the screw (M4) to release the wire end terminal and secure the terminal to the support with the screw removed.
  • Page 243 FRN250F1S-4U to FRN350F1S-4U 1) Remove the front cover. Refer to Chapter 2, Section 2.3 "Wiring." 2) Change wiring at points A and B shown in the internal location diagram below. Figure 10.10 Internal Location Diagram (FRN250F1S-4U to FRN350F1S-4U) Point A As shown below, remove the screw (M4) to release the wire end terminal and secure the terminal to the support with the screw removed.
  • Page 244 Normal condition Worst condition FRN150F1S-4U FS5536-250-28 FRN200F1S-4U 3-phase 460 V 108.0 464.0 FRN250F1S-4U FRN300F1S-4U FS5536-400-99-1 FRN350F1S-4U For improvement in EMC compliance for 3-phase 208 V types of inverters, consult your Fuji Electric representative for improving EMC-compliant level. 10-10...
  • Page 245 In no event will Fuji Electric FA Components & Systems Co., Ltd. be liable for any direct or indirect damages resulting from the application of the information in this manual.
  • Page 246 Fuji Electric FA Components & Systems Co., Ltd. Fuji Electric Corp. of America 2007-11 (K07/K07) 10CM...
