CHAPTER 10 PERIPHERAL EQUIPMENT

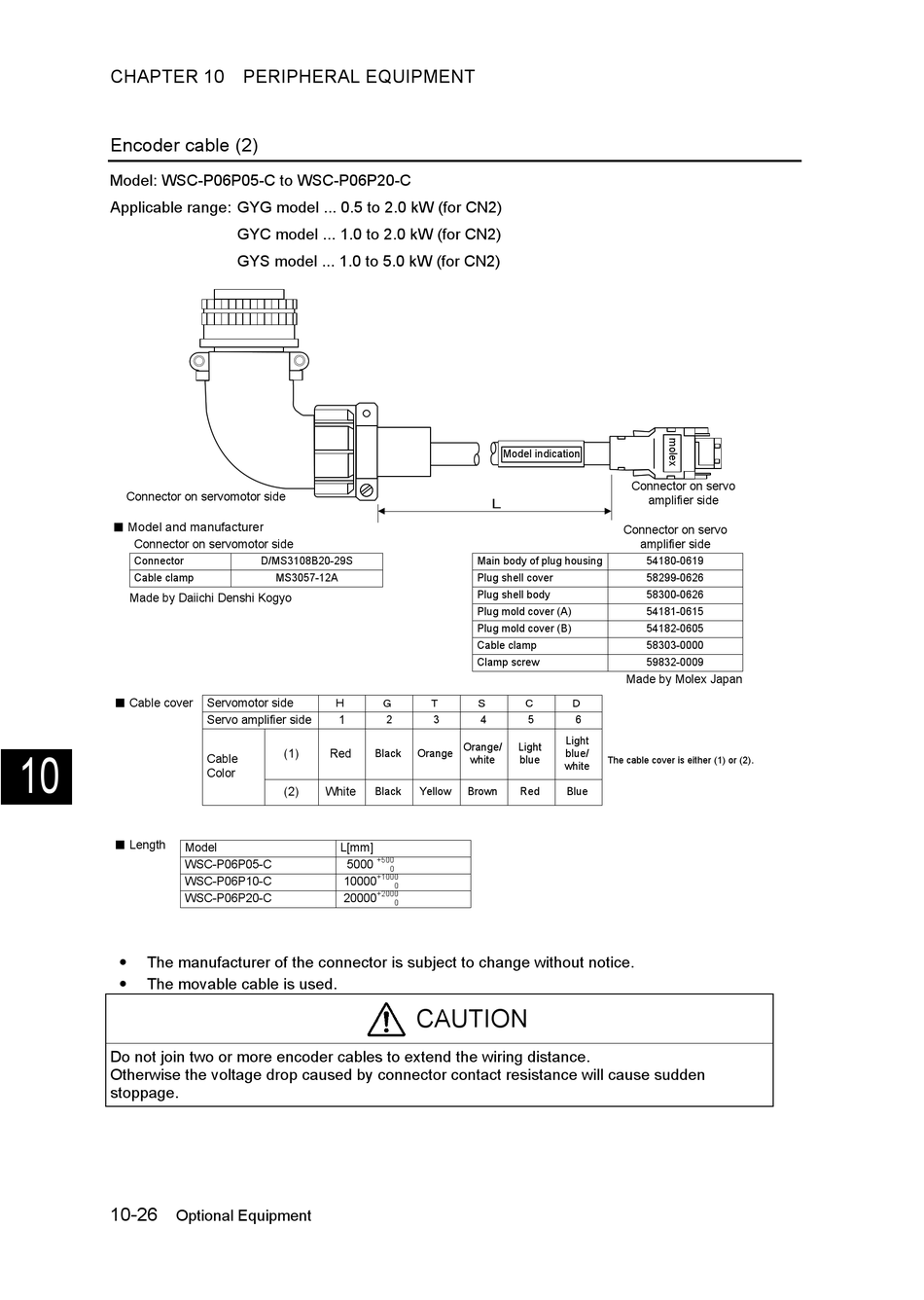

Encoder cable (2)

Model: WSC-P06P05-C to WSC-P06P20-C
Applicable range: GYG model ... 0.5 to 2.0 kW (for CN2)
Connector on servomotor side
Model and manufacturer
■
Connector on servomotor side
Connector
Cable clamp
Made by Daiichi Denshi Kogyo
■ Cable cover
10
■ Length
Model
WSC-P06P05-C
WSC-P06P10-C
WSC-P06P20-C
The manufacturer of the connector is subject to change without notice.

The movable cable is used.

Do not join two or more encoder cables to extend the wiring distance.
Otherwise the voltage drop caused by connector contact resistance will cause sudden
stoppage.
10-26
Optional Equipment
GYC model ... 1.0 to 2.0 kW (for CN2)
GYS model ... 1.0 to 5.0 kW (for CN2)
D/MS3108B20-29S
MS3057-12A
Servomotor side
Ｈ
Servo amplifier side 1
(1) Red Black
Cable
Color
(2) White
Black
L[mm]
+500
5000
+1000
10000
+2000
20000
Model indication
Ｌ
Main body of plug housing
Plug shell cover
Plug shell body
Plug mold cover (A)
Plug mold cover (B)
Cable clamp
Clamp screw
Ｇ Ｔ Ｓ Ｃ
2 3 4 5
Orange/ Light
Orange
white blue
Yellow Brown Red
0
0
0
CAUTION
Connector on servo
amplifier side
Connector on servo
amplifier side
54180-0619
58299-0626
58300-0626
54181-0615
54182-0605
58303-0000
59832-0009
Made by Molex Japan
Ｄ
6
Light
blue/
The cable cover is either (1) or (2).
white
Blue
