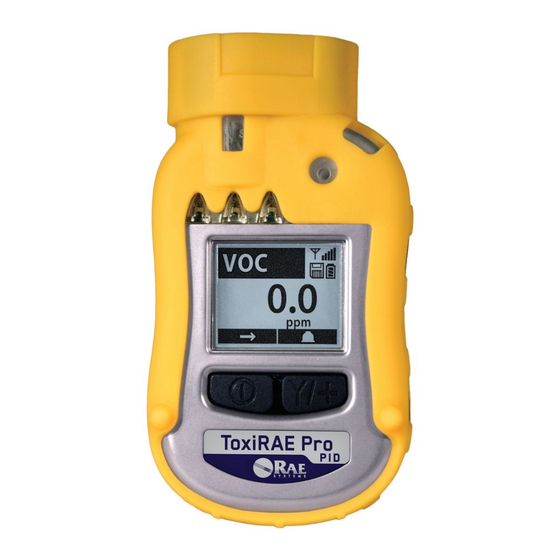

Rae ToxiRAE Pro PID Quick Start Manual

ToxiRAE Pro PID
QuickStart Guide
RAE Systems, Inc.
3775 N. First St.
San Jose, CA 95134-1708 USA
Phone: 408-952-8200 Fax: 408-952-8480
Email: customerserv@raesystems.com
www.raesystems.com

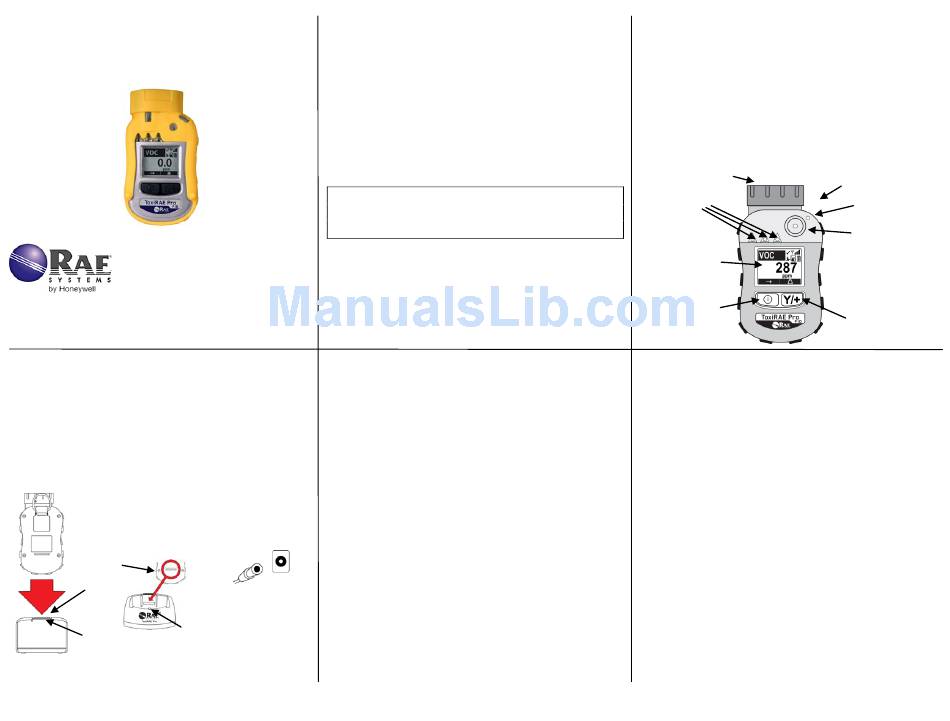

Charging The ToxiRAE Pro PID
Always fully charge the battery before use. Contacts on
the bottom of the ToxiRAE Pro PID meet the cradle's
contact pins, transferring power. While charging, the
LED on the cradle glows red. When the battery is fully
charged, the LED glows green.
Place ToxiRAE
A B
Pro PID in
charging cradle
Raised lip
locks into
cradle's
latch
Charging
Latch
status LED
release
The ToxiRAE Pro PID User's Guide must be
carefully read by all individuals who have or will
have the responsibility of using, maintaining, or
servicing this product. The product will perform as
designed only if it is used, maintained, and serviced
in accordance with the manufacturer's instructions.
Never operate the monitor when the cover is
removed. Remove monitor top cap, rear cover, and
battery only in an area known to be non-hazardous.
Turning The ToxiRAE Pro PID On
Press and hold [MODE] for 3 seconds. During
startup, the battery, buzzer, vibration alarm, and
LEDs are tested, and then the ToxiRAE Pro PID
performs self-testing of its functions. When the
main measurement screen appears, the ToxiRAE
Pro PID is ready for calibration or use.
Connect AC
adapter to charging Note: If the battery is almost fully discharged, the
cradle and
message "Battery too low! Needs charging.
plug it into AC
Powering off!" shows in the display and the
power source
ToxiRAE Pro PID shuts off. You must charge the
battery before you can use the instrument.
4.
WARNINGS
Read Before Operating
CAUTION!

User Interface

The ToxiRAE Pro PID's user interface consists of
the display, four LED lights, an alarm buzzer, and
two keys, [MODE] and [Y/+]. The LCD displays
real-time reading in specified measurement units, sensor
type, alarm type (when in alarm, including cal. or bump
overdue), Man Down status, battery status, datalog (if on),
and radio and connection quality (if available).
Gas inlet
LEDs
Display
[MODE] key
2.
Turning The ToxiRAE Pro PID Off
Press and hold [MODE]. A 5-second countdown to
shutoff begins. You must continue pressing on the
key for the entire shutoff process. If you remove
your finger from the key during the countdown, the
shutoff operation is canceled and the ToxiRAE Pro
PID continues normal operation.
When the countdown beeps stop and you see "Unit
Off," release your finger from the [MODE] key.
The ToxiRAE Pro PID is now off.
5.
Belt clip (on back)
LED
Alarm
Buzzer
[Y/+] key
3.
6.
