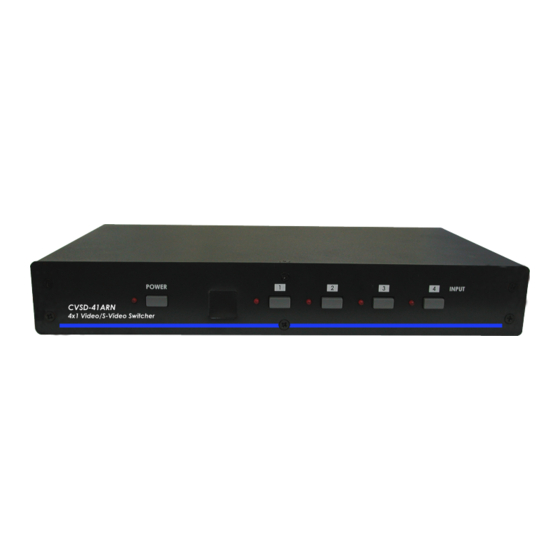

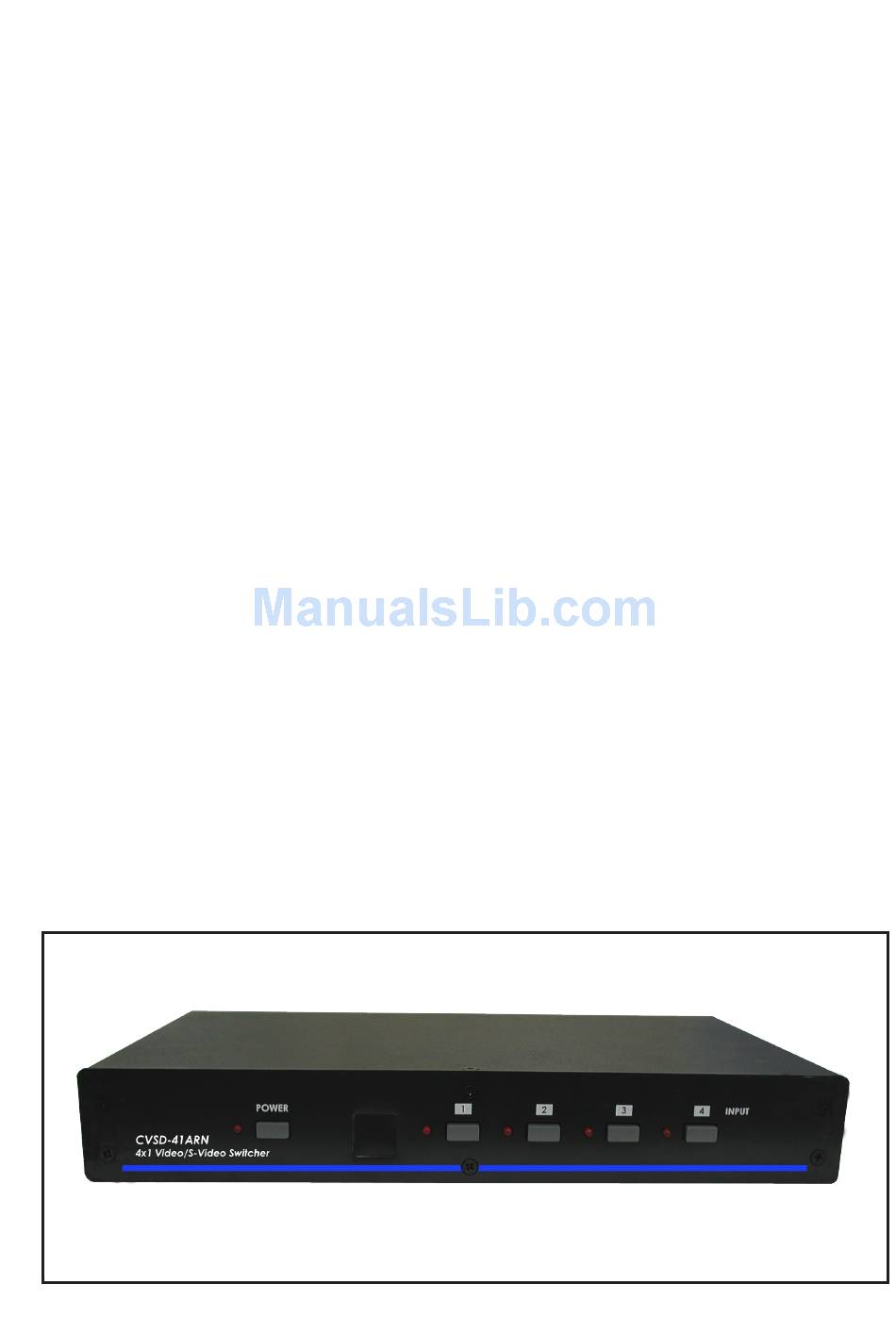

- Page 1 Video/S-Video Switcher Operation Manual CVSD-41ARN...
-
Page 2: Package Includes
- Supports standard video sources: 480i, 576i. - Plug and play, easy to install and operate. - CVSD-41ARN can be controlled either through input selection button on the front panel or using included infrared remote control. - RS-232 interface allows control from a distant device. -
Page 3: Remote Control
1. RS-232: 9-pin D-sub female connector for connecting to your other control console for remote control. 2. CV/SV+Audio output: Use a CV/SV cable to connect to your display. Use a 1 RCA to 1 RCA video cable to your display. Use a 2 RCA to 2 RCA audio cable to your display. -
Page 4: Connection And Installation
CVSD-41ARN RS-232 Remote Control Protocol * The connection between CVSD-41ARN and remote controller with RS-232 modem cable. Pins definition of modem cable CVSD-41ARN Remote Controller Definition Definition T xD R xD R x D T x D * RS-232 transmission format:...
