How to R emove the Steering Wheel How to Remove the Steering
Wheel
1 Open the access door above the hydraulic
tank.
2 Disconnect the battery from the machine.
Electrocution/burn hazard.
Contact with electrically charged
circuits could result in death or
serious injury. Remove all rings,
watches and other jewelry.
3 Remove the horn button from the steering
wheel. Remove the nut securing the steering
wheel to the column and remove the steering
wheel.
Part No. 1287209GT
Operator's Compartment
How to R emove the Steer Or bitral

How to Remove the Steer Orbitral

1 Remove the steering column. Refer to Repair
Procedure, How to Remove the Steering
Column.

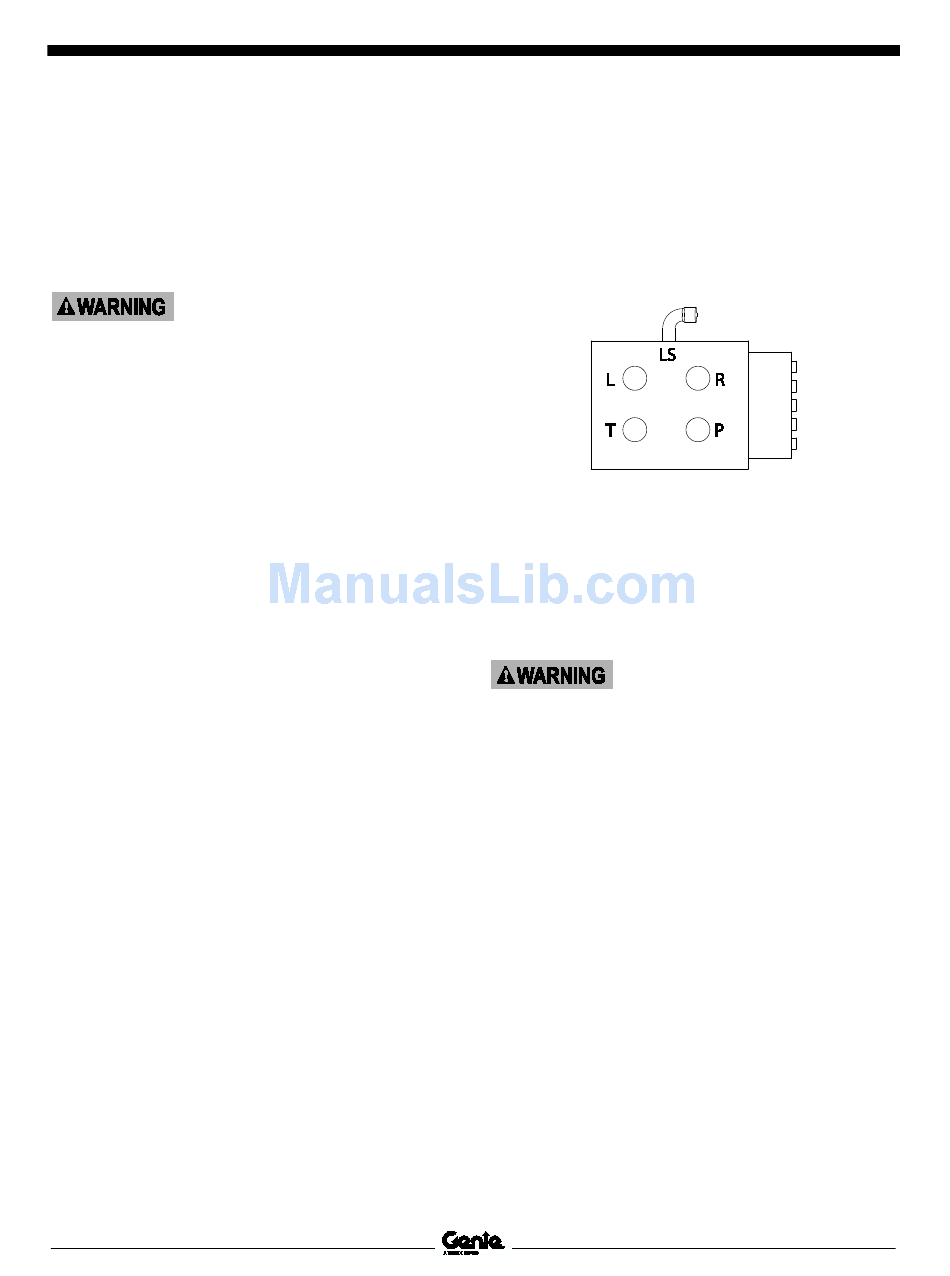

2 Working under the dashboard, locate the
hydraulic hose at port L of the steering orbitral.
3 Follow the hydraulic hose from port L of the
steer orbitral to its connection at the front axle
of the machine. Tag, disconnect and plug the
hydraulic hose at the front axle. Cap the fitting.
4 Tag, disconnect and plug the hydraulic hoses
at ports SUP, SUR and SUT of the secondary
function manifold. Cap the fitting.
5 Tag, disconnect and plug the hydraulic hose at
port SULS of the primary function manifold.
Cap the fitting.
6 Slowly move the steer orbitral away from the
dash frame while feeding all loose hoses
through the opening of the chassis.
GTH-636
Service and Repair Manual
Bodily injury hazard. Spraying
hydraulic oil can penetrate and
burn skin. Loosen hydraulic
connections very slowly to allow
the oil pressure to dissipate
gradually. Do not allow oil to
squirt or spray.
29
