Triax TDH 800 Configuration Manual

Pal output module
Hide thumbs Also See for TDH 800:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Configuration guide

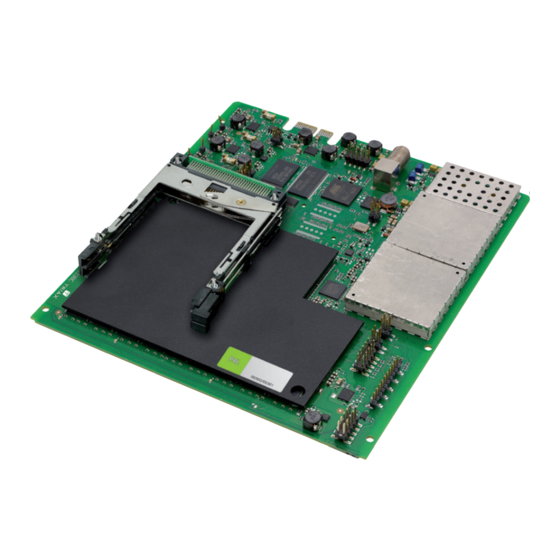

TDH 800 – PAL output module
Model
TDH 800 – PAL output module
891575A
Version
Item no.
692850
692851
08 - 2013
EN
triax.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDH 800 and is the answer not in the manual?

Questions and answers

Related Manuals for Triax TDH 800

Summary of Contents for Triax TDH 800

  • Page 1 Configuration guide TDH 800 – PAL output module Model Item no. TDH 800 – PAL output module 692850 692851 triax.com 891575A Version 08 - 2013...

  • Page 2: Table Of Contents

    Contents Contents Introduction............................... 3 System requirements ............................3 Computer minimum requirements ......................3 Static IP address ............................3 Physical connection to headend ....................... 3 Service tool ............................... 4 Overview ............................... 5 Icons................................5 Tabs ................................6 Misc. Buttons ............................. 6 Configuring CA modules ..........................

  • Page 3: Introduction

    This document describes the configuration of the PAL Output module for the TDH 800 headend. Physical installation of the module is described in the TDH 800 main unit installation guide. Physical installation of the module is described in the TDH 800 main unit installation guide.

  • Page 4: Service Tool

    Introduction Service tool 1. Open a web browser window. 2. Enter ‘http://192.168.0.100’ in the web address field. 3. Press Enter. 4. Enter the password. 5. Press the Log in button. Note: Password = ‘triax1234’ when the service tool is opened for the first time. The Keep me logged in checkbox overrides the system’s automatic time out function, which is activated after 20 minute’s inactivity.

  • Page 5: Overview

    Introduction Overview Communication icon Tabs Misc Buttons System icon Configuration buttons Icons Indicates whether the service tool is communicating correctly with the headend unit. Green The service tool and headend are communicating correctly. The service tool and headend are NOT communicating correctly.

  • Page 6: Tabs

    Introduction Tabs Accesses the various tabs used to configure the headend’s input and output modules. System The service tool’s ‘home’ window. Provides system overview information and configuration activation/control. Input Tab for configuring input modules and services. Refer to input module manuals for information. CA Modules Tab for configuring CI modules and CA cards.

  • Page 7: Configuring Ca Modules

    The headend is running, the CA module has been placed in the output module, the output module is inserted in the headen, and the TDH Service Tool is connected to the headend. See the TDH 800 Headend User Guide for information on inserting the output module into the TDH 800 headend. Configuration 1.
  • Page 8 Configuring CA modules Apply button Tabs CA module button Common interface Service list area Submit button Reset CAM button Status area The CA Module setup window is displayed, initially containing default values. 3. Specify the speed of the CI card in the Card speed drop-down list. 4.
  • Page 9 Configuring CA modules The Filter options window is set by default to descramble all audio PIDs associated with the service. 8. Enable the Descramble non audio/video PIDs checkbox to descramble all PIDs associated with the service, that are neither audio, or video related. 9.

  • Page 10: Resetting

    Configuring CA modules language is selected. 13. Press the Submit button in the CA Module setup window. The service(s) selected in now listed. 14. Press the Apply button. The following confirmation is displayed. Resetting It may be necessary to reset the CA module if it malfunctions. 1.

  • Page 11: Modifying

    Configuring CA modules 2. Press the Reset CAM button. 3. Press the Yes button. The CA module will be reset and service transmission through it will be temporally interrupted. The ER checkbox can alternatively be enabled to automatically reset CA modules, see above. Modifying 1.

  • Page 12: Deleting

    Configuring CA modules Deleting 1. Press the Delete button of the CA module to be removed. A confirmation popup is displayed. 2. Press Yes on the confirmation popup.

  • Page 13: Configuring Pal Output Modules

    The headend is running, the output module is in position, and the TDH Service Tool is connected to the headend. See the TDH 800 Headend User Guide for information on inserting the output module into the TDH 800 headend. Configuration 1.
  • Page 14 Configuring PAL output modules Uncheck The first time the output configuration is opened, it will contain default and/or empty values, and the output module is disabled. 1. Remove the check from the Disabled output checkbox. Channel, channel PAL modules can be configured either by using the pre-defined channel spacing and frequency plans, or through manual specification.
  • Page 15 Configuring PAL output modules 2. Check the Select service/s checkbox for the required service. 3. Press the OK button. Note that only one service can be selected per slot on a PAL output module, i.e. a tiotal of four services can be selected for one PAL output module.
  • Page 16 Configuring PAL output modules maximum permitted payload.: 2. View the status information at the bottom of the page to check that the input module is functioning correctly: Field Contents Status Whether the output module is enabled or disabled. SW revision Displays the software version of the input module.

  • Page 17: Modifying

    Configuring PAL output modules The service that was selected is now visible in the Channel list tab. The remaining slots on the output module can now be configured in the same manner. Modifying 1. Press the Setup button for the output module to be modified. 2.
  • Page 18 Configuring PAL output modules 5. Restart the headend. 6. Restart the service tool. The output module will no longer be listed in the input module list.
  • Page 19 TRIAX confirms that the product conforms to relevant EEC harmonised standards and consequently can carry DE/EN 60728-2 2010, DS/EN 60728-11 2010 and DS/EN 50083-2 2006 the CE-mark. This document is only valid with the signature of the person responsible for CE-marking by Triax Relevant harmonised standards: Date: October 2012...

This manual is also suitable for:

692850692851
