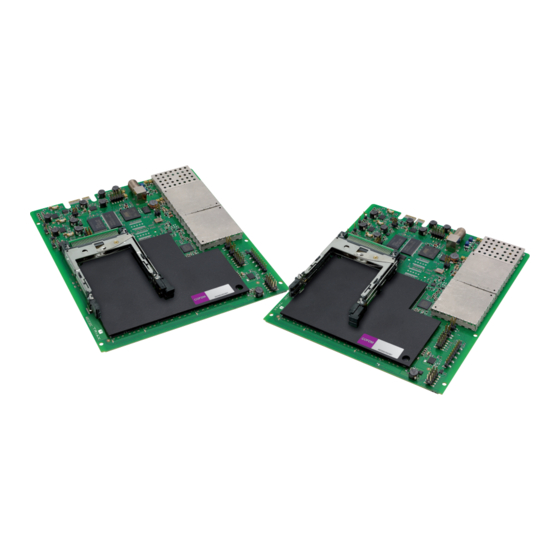

- Page 1 Configuration guide TDH 800 – COFDM output module Model Item no. TDH 800 – COFDM output module 692860 692861 triax.com 891577A Version 08 - 2013...
-
Page 2: Table Of Contents
Contents Contents Introduction ..................................3 System requirements ................................3 Computer minimum requirements ..........................3 Static IP address ................................3 Physical connection to headend ............................ 3 Service tool ..................................4 Overview ..................................4 Icons .................................... 4 Tabs ..................................... 5 Misc. Buttons ................................5 Configuring CA modules ................................ -
Page 3: Introduction
This document describes the configuration of the PAL Output module for the TDH 800 headend. Physical installation of the module is described in the TDH 800 main unit installation guide. Physical installation of the module is described in the TDH 800 main unit installation guide. -
Page 4: Service Tool
Introduction Service tool 1. Open a web browser window. 2. Enter ‘http://192.168.0.100’ in the web address field. 3. Press Enter. 4. Enter the password. 5. Press the Log in button. Note: Password = ‘triax1234’ when the service tool is opened for the first time. The Keep me logged in checkbox overrides the system’s automatic time out function, which is activated after 20 minute’s inactivity. -
Page 5: Tabs
Introduction Green The headend unit is functioning correctly. The headend unit is functioning correctly. Tabs Accesses the various tabs used to configure the headend’s input and output modules. System The service tool’s ‘home’ window. Provides system overview information and configuration activation/control. Input Tab for configuring input modules and services. -
Page 6: Configuring Ca Modules
The headend is running, the CA module has been placed in the output module, the output module is inserted in the headen, and the TDH Service Tool is connected to the headend. See the TDH 800 Headend User Guide for information on inserting the output module into the TDH 800 headend. Configuration 1. - Page 7 Introduction Apply button Tabs CA module identification Common interface button Service list area Submit button Reset CAM button Status area The CA Module setup window is displayed, initially containing default values. 3. Specify the speed of the CI card in the Card speed drop-down list. 4.
- Page 8 Configuring CA modules The Filter options window is set by default to descramble all audio PIDs associated with the service. 8. Enable the Descramble non audio/video PIDs checkbox to descramble all PIDs associated with the service, that are neither audio, or video related. 9.
- Page 9 Introduction is selected. 13. Press the Submit button in the CA Module setup window. The service(s) selected in now listed. 14. Press the Apply button. The following confirmation is displayed.
-
Page 10: Resetting
Configuring CA modules Resetting It may be necessary to reset the CA module if it malfunctions. 1. Press the Setup button for the CA module to be reset. 2. Press the Reset CAM button. 3. Press the Yes button. The CA module will be reset and service transmission through it will be temporally interrupted. -
Page 11: Modifying
Introduction Modifying 1. Press the Setup button for the CA module to be modified. 2. Make the desired changes. 3. Press the Submit button. 4. Press the Apply button in the Configuration window. Deleting 1. Press the Delete button of the CA module to be removed. A confirmation popup is displayed. -
Page 12: Configuring Cofdm Output Modules
The headend is running, the output module is in position, and the TDH Service Tool is connected to the headend. See the TDH 800 Headend User Guide for information on inserting the output module into the TDH 800 headend. Configuration 1. - Page 13 Configuring COFDM output modules Uncheck The first time the output configuration is opened, it will contain default and/or empty values, and the output module is disabled. 3. Remove the check from the Disabled output checkbox. Channel, channel spacing COFDM modules can be configured either by using the pre-defined channel plans, and frequency or through manual specification.
- Page 14 Configuring COFDM output modules 4. Check the Select service/s checkbox for the required services. 5. (Optional) Specify an Output SID for the selected services. 6. (Optional) Specify a collective name (Mux) for the selected services in the Mux name field. 7.
- Page 15 SW revision Displays the software version of the output module. The software version displayed must be identical with that installed on the TDH 800 main unit and on all other input/output modules. Update the software for the entire TDH 800 headend (including input/output modules) if this is not the case.
- Page 16 Configuring COFDM output modules 3. Press the Apply button. The following confirmation is displayed. The services selected are visible in the Channel list tab.
-
Page 17: Modifying
Configuring COFDM output modules The remaining slots on the output module can now be configured in the same manner. Modifying 1. Press the Setup button for the output module to be modified. 2. Make the desired changes. 3. Press the Update button. 4. - Page 18 DE/EN 60728-2 2010, DS/EN 60728-11 2010 and DS/EN 50083-2 2006 TRIAX confirms that the product conforms to relevant EEC harmonised standards and consequently can carry the CE-mark. This document is only valid with the signature of the person responsible for CE-marking by Triax Relevant harmonised standards: Date: October 2012...
