Page 1: Installation Instructions

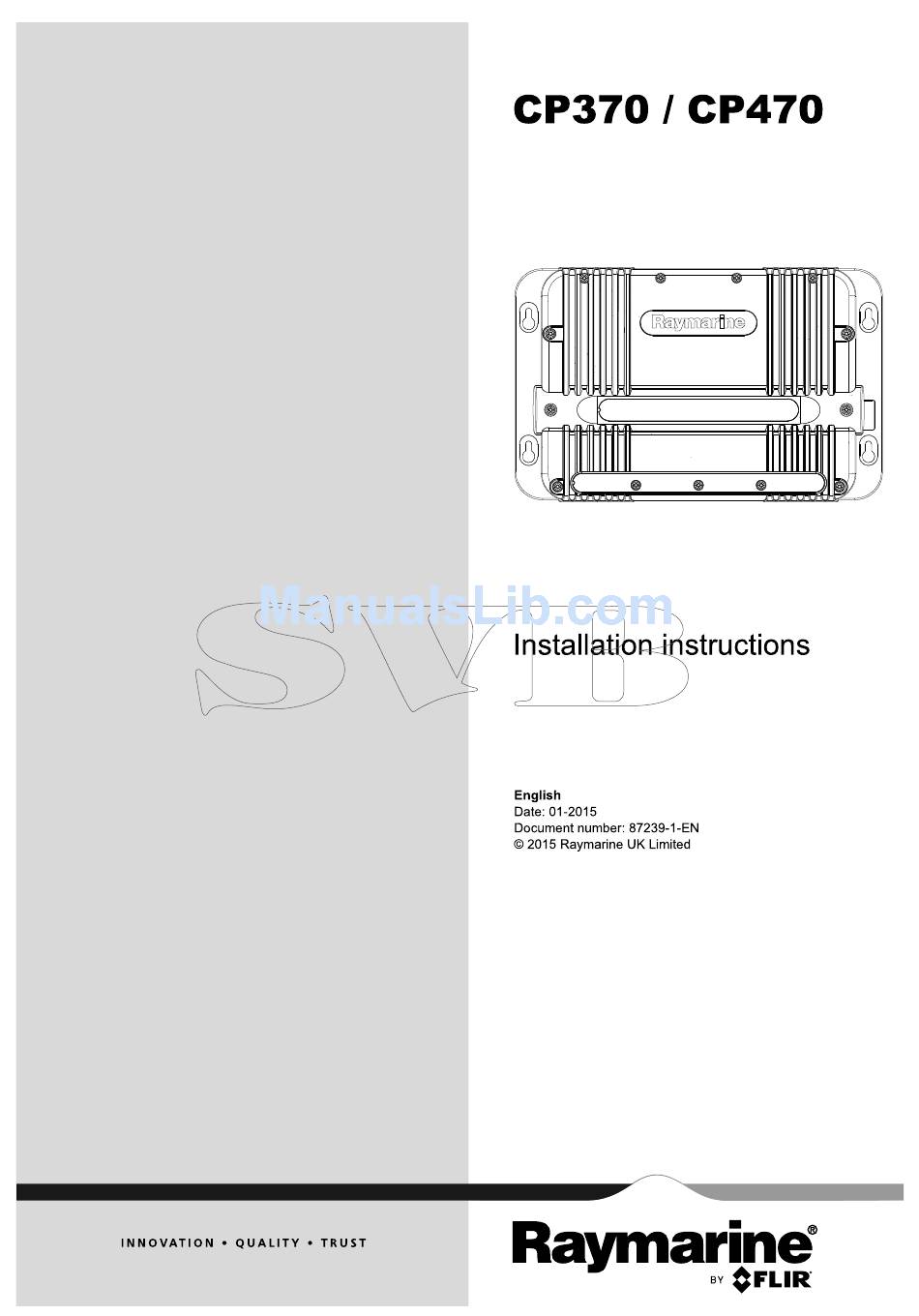

CP370 / CP470 Installation instructions Date: 01-2015 Document number: 87239-1-EN © 2015 Raymarine UK Limited... - Page 3 Trademark and patents notice Raymarine, Tacktick, Clear Pulse, Truzoom, HSB, SeaTalk, SeaTalk , SeaTalk , Micronet, Raytech, Gear Up, Marine Shield, Seahawk, Autohelm, Automagic, and Visionality are registered or claimed trademarks of Raymarine Belgium. FLIR, DownVision, SideVision, Dragonfly, Instalert, Infrared Everywhere, and The World’s Sixth Sense are registered or claimed trademarks of FLIR Systems, Inc.
-
Page 5: Table Of Contents
4.5 Network connection..........28 Chapter 5 Location and mounting ..... 31 5.1 Selecting a location ..........32 5.2 Product dimensions — CP370 ......33 5.3 Product dimensions — CP470 ......33 5.4 Mounting ............. 34 Chapter 6 System checks and troubleshooting ........... - Page 6 CP370 / CP470...
-
Page 7: Chapter 1 Important Information
Raymarine approved installer. A certified installation likely to be within 7.6 m (25 ft) of the qualifies for enhanced product warranty benefits. transducer. Contact your Raymarine dealer for further details, and refer to the separate warranty document packed Warning: Transducer cables with your product. - Page 8 20 degrees above and below the electrical and electronic equipment. Whilst the radiating element. WEEE Directive does not apply to some Raymarine products, we support its policy and ask you to be • The product is supplied from a separate battery aware of how to dispose of this product.
-
Page 9: Chapter 2 Document And Product Information
Chapter 2: Document and product information Chapter contents • 2.1 Handbook information on page 10 • 2.2 Product overview on page 11 • 2.3 Sonar technology on page 12 • 2.4 Raymarine sonar modules on page 13 Document and product information... -
Page 10: Handbook Information
Handbooks The following documentation is applicable to your product: CP370 and CP470 Installation instructions 87239-1 / Installation of a CP370 \ CP470 unit and 88046 connection to a wider system of marine electronics. CP370 and CP470 Mounting template 87240... -
Page 11: Product Overview
The CP370 is a ClearPulse traditional sonar CP370 — Parts supplied module. In conjunction with a compatible multifunction display, the CP370 provides a detailed view of the water beneath your vessel including the bottom, enabling you to identify fish and other objects. -
Page 12: Sonar Technology
Benefits of CHIRP include improvements to target resolution, bottom detection even through bait balls and thermoclines and detection sensitivity. D12601-2 CP370 / CP470... -
Page 13: Raymarine Sonar Modules
2.4 Raymarine sonar modules The table below lists Raymarine’s current range of sonar modules. CP100 DownVision CHIRP sonar CP200 SideVision CHIRP sonar CP370 ClearPulse traditional sonar CP470 ClearPulse CHIRP broadband sonar Dragonfly (internal sonar) DownVision CHIRP sonar a68 / a78 MFD (internal... - Page 14 CP370 / CP470...
-
Page 15: Chapter 3 Planning The Installation
3.2 Required additional components on page 16 • 3.3 Compatible multifunction displays on page 17 • 3.4 CP370 compatible transducers on page 18 • 3.5 CP470 compatible CHIRP broadband transducers on page 19 • 3.6 System examples on page 21 •... -
Page 16: Installation Checklist
This product forms part of a system of electronics and requires the following additional components for Installation Task full operation. Plan your system. • CP370: For a list of compatible traditional Obtain all required equipment and tools. transducers refer to 3.4 CP370 compatible transducers. -
Page 17: Compatible Multifunction Displays
3.3 Compatible multifunction displays The following Raymarine multifunction displays are compatible with your sonar module. Multifunction display CP370 CP470 ● ● gS Series ● ● New e Series ● ● New c Series ● ● New a Series ● E-Series... -
Page 18: Cp370 Compatible Transducers
The following transducers can be used with CP370 sonar modules: Important: To ensure EMC Compliance, transducers marked in the table below with a * symbol are NOT certified to be used with the CP370 in the following regions: • Australia;... -
Page 19: Cp470 Compatible Chirp Broadband Transducers
3.5 CP470 compatible CHIRP broadband transducers The following transducers can be used with Raymarine CP470 sonar modules: Rated Part number Description Features Frequency (kHz) Power A80012 M265LH, Plastic Urethane, In-hull, dual element, • Low = 40 to 75 kHz 1 kW CHIRP •... - Page 20 • Low = 28 to 60 kHz 2 to 3 kW element, CHIRP • Medium = 80 to 130 • D = Depth • S = Speed • T = Temperature Note: *Transducers only available in pairs. CP370 / CP470...
-
Page 21: System Examples
3.6 System examples The system examples below apply to your sonar module. Example: Basic system D13252-1 Item Description Compatible Raymarine multifunction display Sonar module Transducer Planning the installation... -
Page 22: Tools
SeaT alk D13253-1 Item Description Sonar module Raymarine network switch Digital radome Compatible Raymarine multifunction display Transducer Actuator Control Unit (ACU) EV unit SeaTalk Pilot controller Note: For detailed information on sonar module connections refer to Chapter 4 Cables and connections. -
Page 23: Chapter 4 Cables And Connections
Chapter 4: Cables and connections Chapter contents • 4.1 General cabling guidance on page 24 • 4.2 Connections overview on page 25 • 4.3 Power connection on page 25 • 4.4 Transducer connections on page 27 • 4.5 Network connection on page 28 Cables and connections... -
Page 24: General Cabling Guidance
Ensure that all data cables are properly shielded that the cable shielding is intact (e.g. hasn’t been • Ensure that any non-Raymarine cables are of the scraped off by being squeezed through a tight area). correct quality and gauge. For example, longer power cable runs may require larger wire gauges to minimize voltage drop along the run. -
Page 25: Connections Overview
The unit is intended for use on dc 'negative' or 'floating' ground power systems rated from 10.2V to 32V. Raymarine recommends that all power connections are made via a distribution panel. All equipment must be either: • powered from a circuit breaker or switch, with 5A circuit protection, or •... - Page 26 (drain) wire for connection to a distribution panel. vessel's RF ground point. • Raymarine recommends a minimum wire gauge It is important that an effective RF ground is of 18AWG (0.82 mm ) for any length of cable connected to the system.
-
Page 27: Transducer Connections
Cable to transducer connection European CE mark. Compatible depth transducer CP370 Transducer connections Compatible speed / temperature transducer The CP370 is a ClearPulse traditional sonar For a list of compatible transducers refer to module designed for use with traditional transducers. Traditional transducers. -
Page 28: Network Connection
Item Description • Raymarine recommends a maximum of one cable extension for any single transducer cable. Sonar module. • For best performance, keep all cable lengths to Connector panel for compatible Raymarine a minimum. - Page 29 Multiple multifunction display configuration A Raymarine network switch can be used to connect the unit to more than 1 multifunction display. Note: Ensure network cables and connections are tight and secure using any cable ties provided with your network hardware.
- Page 30 CP370 / CP470...
-
Page 31: Chapter 5 Location And Mounting
Chapter 5: Location and mounting Chapter contents • 5.1 Selecting a location on page 32 • 5.2 Product dimensions — CP370 on page 33 • 5.3 Product dimensions — CP470 on page 33 • 5.4 Mounting on page 34 Location and mounting... -
Page 32: Selecting A Location
Do NOT mount units or cut holes in places which may damage the structure of the vessel. Cable routing requirements Consider the following before installing the system cables: • You will need to attach power, transducer and network cables to the unit. CP370 / CP470... -
Page 33: Product Dimensions - Cp370
5.2 Product dimensions — CP370 5.3 Product dimensions — CP470 D13247-1 D13247-1 Item Dimension Item Dimension 299.4 mm (11.79 in) 299.4 mm (11.79 in) 188.0 mm (7.4 in) 188.0 mm (7.4 in) 201.5 mm (7.9 in) 205.6 mm (8.1 in) 84.4 mm (3.3 in) -
Page 34: Mounting
Mounting the unit the unit is to be mounted on. Having chosen a suitable location, install the unit as follows: Note: Raymarine recommends mounting the unit vertically. 1. Secure the mounting template in the required location using adhesive tape. ri n... -
Page 35: Chapter 6 System Checks And Troubleshooting
Chapter 6: System checks and troubleshooting Chapter contents • 6.1 Initial power on test on page 36 • 6.2 Software updates on page 37 • 6.3 Troubleshooting on page 37 • 6.4 Sonar troubleshooting on page 38 • 6.5 LED Diagnostics on page 39 •... -
Page 36: Initial Power On Test
Sounder Set-up > Internal Sounder. • External sonar modules should be turned off at the power supply. 2. Wait for the No Sounder Source Available message to be displayed in the Fishfinder application. 3. Power on the new sonar module. CP370 / CP470... -
Page 37: Software Updates
All Raymarine products are, prior to packing and • You can update the software for your product using shipping, subjected to comprehensive test and a connected and compatible multifunction display. -
Page 38: Sonar Troubleshooting
Other unit fault. Refer to the instructions supplied with the unit. SeaTalk / RayNet network Check that the unit is correctly connected to a Raymarine problem. network SeaTalk switch or crossover coupler (as applicable). Check the status of the Raymarine network switch (if applicable). -
Page 39: Led Diagnostics
6.5 LED Diagnostics D13249-1 The LED on the front panel of the unit provides information on the status of the sonar module and notifies users of any problems within the unit. The LED blinks the following colors: • Green — shows the unit is operating normally. •... - Page 40 • Ensure transducer cable and connections are blink disconnected secure and free from damage. • Power cycle unit to recover transducer information. • If problem persists contact Raymarine technical support. Amber 2 No network • Ensure network is powered. blinks detected •...
- Page 41 Ambient • Ensure installation environment is within blinks temperature too recommendations. • Unit will recover when temperature falls within specifications. • If problem persists contact Raymarine technical support. Red 4 Problems • Power cycle unit to recover. blinks with internal •...
-
Page 42: Resetting The Sonar
Note: Performing a factory reset will clear speed and temperature calibration settings and the depth offset. 1. Using a compatible Raymarine multifunction display go to the Fishfinder application page. 2. Select Menu from the side menu. 3. Select Set-up. -
Page 43: Chapter 7 Maintenance
Chapter 7: Maintenance Chapter contents • 7.1 Routine checks on page 44 • 7.2 Unit cleaning instructions on page 44 • 7.3 Transducer cleaning on page 45 Maintenance... -
Page 44: Routine Checks
This product contains high voltage. Adjustments require specialized service procedures and tools only available to qualified service technicians. There are no user serviceable parts or adjustments. The operator should never remove the cover or attempt to service the product. CP370 / CP470... -
Page 45: Transducer Cleaning
7.3 Transducer cleaning Growth can collect on the bottom of the transducer, this can reduce performance. To prevent the build up of sea growth, coat the transducer with a thin layer of water based antifouling paint, available from your local marine dealer. Reapply paint every 6 months or at the beginning of each boating season. - Page 46 CP370 / CP470...
-
Page 47: Chapter 8 Technical Support
Chapter 8: Technical support Chapter contents • 8.1 Raymarine customer support on page 48 • 8.2 Viewing product information on page 48 Technical support... -
Page 48: Raymarine Customer Support
You can view information about your unit from the support service. You can contact customer support Diagnostics menu on a compatible multifunction through the Raymarine website, telephone and display. This option displays information such as e-mail. If you are unable to resolve a problem, please product serial number and software version. -
Page 49: Chapter 9 Technical Specification
Chapter 9: Technical specification Chapter contents • 9.1 CP370 on page 50 • 9.2 CP470 on page 50 Technical specification... -
Page 50: Cp370
(158°F) (158°F) Relative humidity Relative humidity IPX6 Waterproof rating IPX6 Waterproof rating CHIRP Sonar specification CP370 — Sonar specification Channels Frequency 25 kHz to 255 kHz Frequency 50 kHz and 200 kHz Pulse length 80 ms maximum Maximum Power output... -
Page 51: Chapter 10 Spares And Accessories
Chapter 10: Spares and accessories Chapter contents • 10.1 Spares and accessories on page 52 • 10.2 Transducers on page 52 • 10.3 Network hardware on page 53 • 10.4 Network cable connector types on page 53 • 10.5 RayNet to RayNet cables and connectors on page 54 •... -
Page 52: Spares And Accessories
10.1 Spares and accessories 10.2 Transducers The following accessories and spare parts are For a list of compatible transducers for the CP370 available: refer to 3.4 ClearPulse transducers. For a list of compatible transducers for the CP470 CP370 Part CP470 Part refer to 3.5 CHIRP... -
Page 53: Network Hardware
— used for HS5 RayNet A80007 5–port switch for network connecting SeaTalk devices to network switch connection of multiple a Raymarine network switch via devices featuring RayNet SeaTalk cables. connectors. Equipment with RayNet connector — used for RJ45 SeaTalk... -
Page 54: Raynet To Raynet Cables And Connectors
This adapter features a RayNet (female) socket at one end, and a RayNet (male) plug at the other end. Adapter cable with a RayNet (male) Suitable for joining (female) RayNet cables together for plug on both ends. longer cable runs. CP370 / CP470... -
Page 55: Raynet To Rj45 Adapter Cables
• E55051 (10 m). • A62135 (15 m). • E55052 (20 m). Adapter cable with a RayNet (female) Directly connect a Raymarine radar scanner with an RJ45 socket on one end, and a waterproof SeaTalk (male) cable to a RayNet network switch (e.g. - Page 56 CP370 / CP470...
