Summary of Contents for Raymarine CP450C

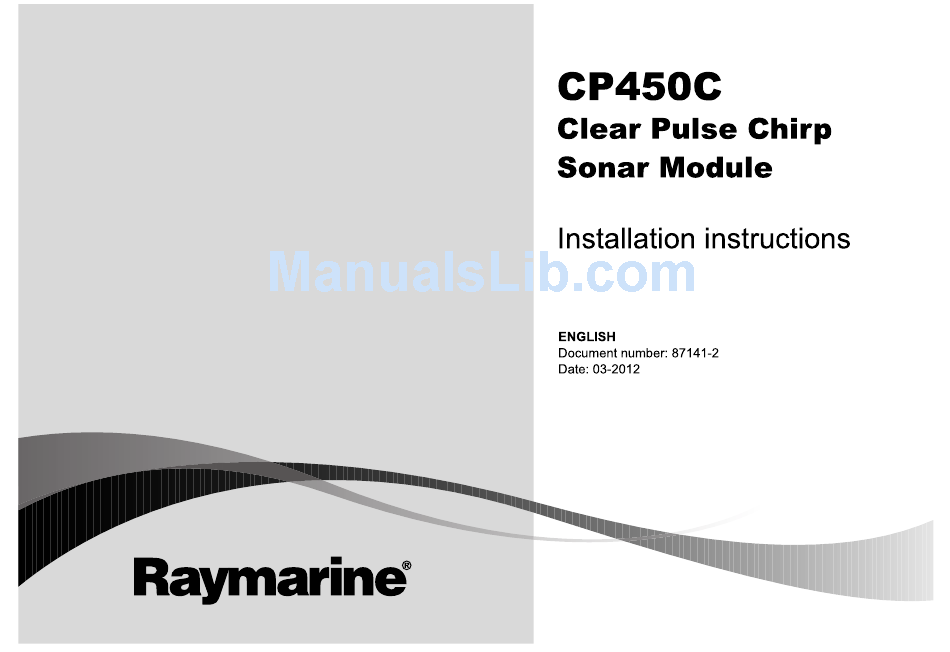

- Page 1 C P 4 5 0 C C le a r P u ls e C h ir p S o n a r Mo d u le Ins ta lla tion ins tructions Docume nt numbe r: 87141-2 Da te : 03-2012...
- Page 3 Product handbooks The latest versions of all English and translated handbooks are available to download in PDF format from the website www.raymarine.com. Please check the website to ensure you have the latest handbooks.
-
Page 5: Table Of Contents
2.1 Handbook information ..........12 6.2 Unit cleaning instructions ........... 42 2.2 Installation checklist ..........12 6.3 Transducer cleaning ..........43 2.3 CP450C system examples......... 13 2.4 Tools ................ 17 Chapter 7 Technical support ........45 2.5 Pack contents ............17 7.1 Raymarine customer support ........ - Page 6 CP450C...
-
Page 7: Chapter 1 Important Information
Chapter 1: Important information Warning: Switch off power supply Ensure the vessel’s power supply is switched OFF before starting to install this product. Do NOT connect Safety notices or disconnect equipment with the power switched on, unless instructed in this document. Warning: Positive ground systems Warning: Product installation and Do not connect this unit to a system which has positive... -
Page 8: General Information
For optimum EMC performance we recommend that wherever possible: Caution: Power supply protection • Raymarine equipment and cables connected to it are: When installing this product ensure the power source is adequately protected by means of a suitably-rated – At least 1 m (3 ft) from any equipment transmitting or cables fuse or automatic circuit breaker. -
Page 9: Declaration Of Conformity
Directive requires the recycling of waste electrical and electronic equipment. Whilst the WEEE Directive does not apply to some Raymarine products, we support its policy and ask you to be aware of how to dispose of this product. Important information... -
Page 10: Broadband Sonar Technology
Broadband sonar technology The CP450C uses broadband sonar technology. Traditional sounders use a single carrier frequency or carrier wave for the sonar ping. These sounders work by measuring the time it takes the ping echo to return to the transducer to determine target depth. -
Page 11: Chapter 2 Planning The Installation
Chapter contents • 2.1 Handbook information on page 12 • 2.2 Installation checklist on page 12 • 2.3 CP450C system examples on page 13 • 2.4 Tools on page 17 • 2.5 Pack contents on page 17 Planning the installation... -
Page 12: Handbook Information
2.2 Installation checklist 2.1 Handbook information The Raymarine CP450C provides echo sounder data that can be Installation includes the following activities: displayed on compatible Raymarine multifunction displays. Installation Task This handbook contains important information for installing your Plan your system CP450C. -
Page 13: Cp450C System Examples
2.3 CP450C system examples Example: Basic sonar set up featuring multifunction display D12225-1 Item Description Compatible Raymarine multifunction display CP450C Broadband transducer Planning the installation... - Page 14 SeaT alk / RayNet SMART SeaT alk D12226-1 Item Description CP450C Raymarine network switch SeaTalk Crossover coupler (required to connect to Raymarine HS5 Network switch.) Digital radome Compatible Raymarine multifunction display Broadband transducer SeaTalk Pilot controller SPX course computer CP450C...
- Page 15 Example: Extended sonar system featuring multiple multifunction displays and SeaTalk network SeaT alk SeaT alk / RayNet D12227-1 Planning the installation...
- Page 16 Description CP450C Digital open array radar SeaTalk Pilot controller SeaTalk Instrument display SeaTalk AIS receiver Broadband transducer Raymarine network switch SeaTalk Crossover coupler (required to connect to Raymarine HS5 Network switch.) Compatible Raymarine multifunction displays Raymarine thermal imaging camera CP450C...
-
Page 17: Tools
Check that the correct components are present: D12228-1 D12229-1 Item Description Item Description Drill CP450C Pozidrive screwdriver 1.5 m (5 ft.) power cable Drill bit of appropriate size* Document pack including: Adhesive tape • Installation instruction • Mounting template Note: *Drill bit size is dependent on the thickness and type of material that the unit is to be mounted on. - Page 18 CP450C...
-
Page 19: Chapter 3 Cables And Connections
Chapter 3: Cables and connections Chapter contents • 3.1 General cabling guidance on page 20 • 3.2 Connections overview on page 21 • 3.3 Transducer connection on page 22 • 3.4 Network connection on page 24 • 3.5 Power connection on page 26 Cables and connections... -
Page 20: General Cabling Guidance
• Unless otherwise stated use only standard cables of the correct type, supplied by Raymarine. • Ensure that any non-Raymarine cables are of the correct quality and gauge. For example, longer power cable runs may require larger wire gauges to minimize voltage drop along the run. -
Page 21: Connections Overview
3.2 Connections overview 3. Ensuring correct orientation push the cable connector fully onto the corresponding connector on the unit. Cable connectors are located on the bottom of the CP450C. 4. Turn the locking collar clockwise to secure the cables. D12230-1... -
Page 22: Transducer Connection
Transducers must be installed in accordance with the instructions provided with the transducer. Broadband transducer connection D12233-1 Item Description CP450C Combined dual broadband transducer cable Channel B of combined cable Channel A of combined cable D12231-1 Broadband transducer Item... - Page 23 Transducer pair connections Item Description Transducer Pair CP450C Frequencies Cable Channel A Cable Channel B Legacy Adaptor cable Low & High Low frequency High frequency Traditional transducer transducer transducer Low & Medium Low frequency Medium frequency Warning: Transducer cables transducer...
-
Page 24: Network Connection
Item Description CP450C Multiple multifunction display configuration Compatible Raymarine multifunction A Raymarine network switch can be used to connect the unit to display more than 1 multifunction display. RayNet to RayNet network cable Multifunction display configuration (extended cables) A Raymarine crossover coupler and RayNet to SeaTalk... - Page 25 *RayNet to RayNet network cable RayNet to RJ45 cable). Raymarine network switch RayNet connector network cables Note: *To connect the CP450C to a Raymarine network switch with SeaTalk connectors a RayNet to SeaTalk (RJ45) cable Cable Part number is required.
-
Page 26: Power Connection
There are 2 types of network cable connector — SeaTalk RayNet. SeaTalk connector — used for connecting SeaTalk devices to a Raymarine network switch via SeaTalk cables. RayNet connector — used for connecting Raymarine network switches and SeaTalk devices to the multifunction display via RayNet cables. - Page 27 The unit is intended for use on dc ’negative’ or ’floating’ ground power systems rated from 10.2V to 32V. Raymarine recommend that all power connections are made via a distribution panel. All equipment must be either • powered from a circuit breaker or switch, with 5A circuit protection, •...
- Page 28 Where this not possible, use individual in-line fuses to provide the necessary protection. • Floating, with neither battery terminal connected to the vessel’s ground Circuit breaker Warning: Positive ground systems Do not connect this unit to a system which has positive grounding. Fuse Fuse CP450C...
-
Page 29: Chapter 4 Location And Mounting
Chapter 4: Location and mounting Chapter contents • 4.1 Selecting a location on page 30 • 4.2 Mounting on page 31 Location and mounting... -
Page 30: Selecting A Location
• Magnetic compass — mount the unit at least 1 m (3 ft.) away from a magnetic compass. • Power — The unit must be located near a dc power source. The power cable supplied is 1.5 m (5 ft.) in length. CP450C... -
Page 31: Mounting
4.2 Mounting Unit dimensions Mounting the unit Having chosen a suitable location, install the unit as follows: Note: Raymarine recommends mounting the unit vertically. 1. Secure the mounting template in the required location using adhesive tape. ri n ig it... - Page 32 3. Remove the mounting template. 4. Screw in the supplied fixing screws about half way into the holes. 5. Place the unit onto the fixing screws. 6. Push the unit down to engage the key slots in the unit. CP450C...
-
Page 33: Chapter 5: System Checks And Troubleshooting
Chapter 5: System checks and troubleshooting Chapter contents • 5.1 Initial power on test on page 34 • 5.2 Troubleshooting on page 34 • 5.3 Sonar troubleshooting on page 35 • 5.4 LED Diagnostics on page 37 • 5.5 Resetting the sonar on page 40 System checks and troubleshooting... -
Page 34: Initial Power On Test
After powering on, the unit will take approximately 50 seconds to bootup, from powering on through to normal operation LED status All Raymarine products are, prior to packing and shipping, subjected indicator should be GREEN. If the LED status indicator is not green to comprehensive test and quality assurance programs. -
Page 35: Sonar Troubleshooting
Refer to the instructions supplied with the unit. SeaTalk / RayNet network problem. Check that the unit is correctly connected to a Raymarine network SeaTalk switch or crossover coupler (as applicable). Check the status of the Raymarine network switch (if applicable). - Page 36 Problem Possible causes Possible solutions Incorrect speed reading Paddle wheel fault Check that the paddle wheel is clean. No speed offset set Add speed offset. Incorrect calibration Re-calibrate equipment CP450C...
-
Page 37: Led Diagnostics
5.4 LED Diagnostics DXXXXX-1 The LED on the front panel of the unit provides information on the status of the sonar module and notifies users of any problems within the unit. The LED blinks the following colors: • Green — shows the unit is operating normally. •... - Page 38 • Ensure transducer cable and connections are secure and free disconnected from damage. • Power cycle unit to recover transducer information. • If problem persists contact Raymarine technical support. Amber 2 No network detected • Ensure network is powered. blinks •...
- Page 39 Note: During a software upgrade process the LED will be solid Red and change to solid Amber on successful completion. A power cycle will be necessary to install the changes. Note: If any other LED sequence other than described above is seen and persists please contact Raymarine technical support. System checks and troubleshooting...
-
Page 40: Resetting The Sonar
The reset function restores the unit to its factory default values. Note: Performing a factory reset will clear speed and temperature calibration settings and the depth offset. 1. Using a compatible Raymarine multifunction display go to the Fishfinder application page. 2. Select Menu from the side menu. -
Page 41: Chapter 6 Maintenance
Chapter 6: Maintenance Chapter contents • 6.1 Routine checks on page 42 • 6.2 Unit cleaning instructions on page 42 • 6.3 Transducer cleaning on page 43 Maintenance... -
Page 42: Routine Checks
This product contains high voltage. Adjustments require specialized service procedures and tools only available to qualified service technicians. There are no user serviceable parts or adjustments. The operator should never remove the cover or attempt to service the product. CP450C... -
Page 43: Transducer Cleaning
6.3 Transducer cleaning Sea growth can collect on the bottom of the transducer, this can reduce performance. To prevent the build up of sea growth, coat the transducer with a thin layer of water based antifouling paint, available from your local marine dealer. Reapply paint every 6 months or at the beginning of each boating season. - Page 44 CP450C...
-
Page 45: Chapter 7 Technical Support
Chapter 7: Technical support Chapter contents • 7.1 Raymarine customer support on page 46 • 7.2 Viewing product information on page 46 Technical support... -
Page 46: Raymarine Customer Support
Raymarine provides a comprehensive customer support service. You can view information about your unit from the Diagnostics menu You can contact customer support through the Raymarine website, on a compatible multifunction display, this will return information telephone and email. If you are unable to resolve a problem, please such as product serial number and software version. -
Page 47: Chapter 8 Technical Specification
Chapter 8: Technical specification Chapter contents • 8.1 Technical specification on page 48 Technical specification... -
Page 48: Technical Specification
Pulse length 80ms maximum Maximum transmit rate 80p/s Power output 1KW RMS Depth 0.6m (2ft) (to 3048m (10,000ft) (Dependant upon connected transducer) Transducer Transom-mount, in-hull, thru-hull Conformance • EN 60945:2002 • EMC Directive 2004/108/EC • Australia and New Zealand C-Tick CP450C... -
Page 49: Chapter 9 Options And Accessories
Chapter 9: Options and accessories Chapter contents • 9.1 Network hardware on page 50 • 9.2 RayNet connector network cables on page 50 • 9.3 Spares and accessories on page 51 Options and accessories... -
Page 50: Network Hardware
E55060 Enables direct coupler connection of SeaTalk devices to smaller systems where a switch is not required. Also enables the connection of SeaTalk devices to an HS5 SeaTalk network switch (in conjunction with a RayNet to RJ45 cable). CP450C... -
Page 51: Spares And Accessories
9.3 Spares and accessories The following accessories and spare parts are available for the CP450C: Spares Item Part number 1.5 m (5 ft.) power cable A80025 Transducer adaptor cables Below is a list of transducer adaptor cables which may be required:... - Page 52 CP450C...
- Page 53 Owner notes:...
- Page 54 Owner notes:...
- Page 56 www.ra ym a rin e .c o m...
