  • Page 1 CP370 / CP470 / CP570 INSTALLATION INSTRUCTIONS...
  • Page 2 Trademark and patents notice Raymarine, Tacktick, Clear Pulse, Truzoom, HSB, SeaTalk, SeaTalk , SeaTalk , Micronet, Raytech, Gear Up, Marine Shield, Seahawk, Autohelm, Automagic, and Visionality are registered or claimed trademarks of Raymarine Belgium. FLIR, DownVision, SideVision, Dragonfly, Instalert, Infrared Everywhere, and The World’s Sixth Sense are registered or claimed trademarks of FLIR Systems, Inc.
  • Page 3 The operator should never remove the qualifies for enhanced product warranty benefits. cover or attempt to service the product. Contact your Raymarine dealer for further details, and refer to the separate warranty document packed with your product. Warning: Transducer cables...
  • Page 4 Disclaimer correct EMC performance. If ferrites are supplied separately to the cables (i.e. not pre-fitted), you Raymarine does not warrant that this product is must fit the supplied ferrites, using the supplied error-free or that it is compatible with products instructions.
  • Page 5 Chapter 2: Document and product information Chapter contents • 2.1 Document information • 2.2 Parts supplied • 2.3 Product overview • 2.4 Sonar technology • 2.5 Raymarine sonar modules Document and product information...
  • Page 6 2.1 Document information Document conventions The following conventions are used throughout this This document contains important information document when referring to: related to the installation of your Raymarine product. Type Example Convention The document includes information to help you: Procedures for Select Set-Up.

  • Page 7: Parts Supplied

    Description Quantity 81360 LightHouse ™ Operation instructions Sonar module Details the operation of the CP370 / CP470 / 1.5 m (5 ft) power CP570 and the Fishfinder application for the cable following multifunction displays: No.8 fixing screws • a Series Documentation •...

  • Page 8: Product Overview

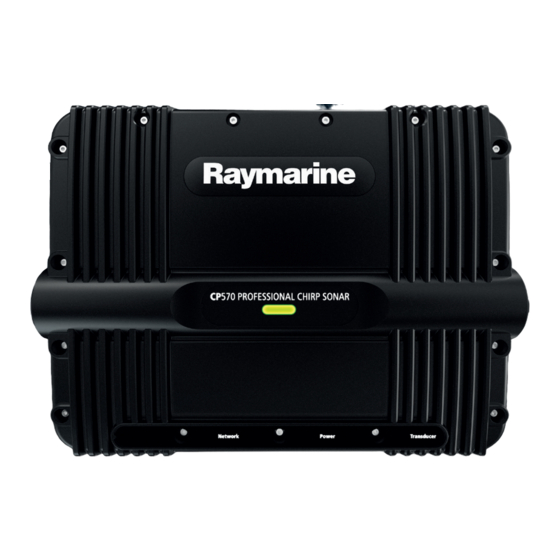

    CP370 product overview The CP370 is a ClearPulse traditional sonar module. In conjunction with a compatible multifunction display, the CP370 provides a detailed view of the water beneath your vessel including the bottom, enabling you to identify fish and other objects.
  • Page 9 2.4 Sonar technology • Support for transom, through-hull and in-hull transducers. Traditional sonar technology • Support for Wide Beam transducers. Traditional sonar uses a single carrier frequency or • 12 V or 24 V dc operation. carrier wave for the sonar ping. The sonar works by •...
  • Page 10 2.5 Raymarine sonar modules The table below lists Raymarine’s current range of sonar modules. Sonar module Technology / Description CP100 CHIRP DownVision ™ / Sonar external CP200 SideVision ™ external CP300 / CP370 Traditional (1 kW) external CP450C / CP470...
  • Page 11 Chapter 3: Planning the installation Chapter contents • 3.1 Installation checklist • 3.2 Required additional components • 3.3 Compatible multifunction displays • 3.4 Software updates • 3.5 Tools required • 3.6 System examples • 3.7 Warnings and cautions • 3.8 General location requirements •...
  • Page 12 The Important: To ensure EMC Compliance, the diagram should include: transducers listed below are NOT certified to be used with the CP370 in the following regions: • Location of all components. • Australia; • Connectors, cable types, routes and lengths.

  • Page 13: Software Updates

    3.3 Compatible multifunction displays 3.4 Software updates The following Raymarine multifunction displays are The software running on the product can be updated. compatible with your sonar module. • Raymarine periodically releases software updates to improve product performance and add new Multifunc- features.
  • Page 14 Drill bit of appropriate size* 1 D13252-2 Item Description Adhesive tape Compatible Raymarine multifunction display Sonar module (CP470 illustrated) Transducer Note: * The appropriate drill bit size is dependent on the thickness and material of the mounting surface. CP370 / CP470 / CP570...
  • Page 15 SeaT alk D13253-2 Item Description Sonar module (CP470 illustrated) Raymarine network switch Digital radome Compatible Raymarine multifunction display Transducer Actuator Control Unit (ACU) EV unit SeaTalk Pilot controller Note: For detailed information on sonar module connections refer to Chapter 4 Cables and connections.
  • Page 16 • All cables should be adequately secured, protected from physical damage, and protected from exposure to heat. • Avoid sharp bends in cables. CP370 / CP470 / CP570...
  • Page 17 3.9 Product dimensions CP570 dimensions CP370 dimensions D13312-1 Item Dimension D13247-2 352.5 mm (13.9 in) Item Dimension 235 mm (9.3 in) 299.4 mm (11.79 in) 248.1 mm (9.8 in) 188.0 mm (7.4 in) 109.9 mm (4.3 in) 201.5 mm (7.9 in) 80.0 mm (3.1 in)
  • Page 18 Chapter 4: Cables and connections Chapter contents • 4.1 General cabling guidance • 4.2 Connections overview • 4.3 Power connection • 4.4 Transducer connections • 4.5 Network connection Cables and connections...

  • Page 19: General Cabling Guidance

    Ensure that all data cables are properly shielded that the cable shielding is intact (e.g. hasn’t been • Ensure that any non-Raymarine cables are of the scraped off by being squeezed through a tight area). correct quality and gauge. For example, longer...

  • Page 20: Connections Overview

    32 V. installation instructions supplied with that device. Raymarine recommends that all power connections 3. Ensuring correct orientation, push the cable are made via a distribution panel. All equipment connector fully onto the corresponding connector must be either: on the unit.
  • Page 21 • The power cable for each unit in your system should be run as a separate, single length of 2-wire cable from the unit to the vessel's battery or distribution panel. • Raymarine recommends a minimum wire gauge of 18AWG (0.82 mm ) for any length of cable D13018-1 extension.
  • Page 22 Sharing a breaker Grounding — additional dedicated drain wire required (CP470 only) Where more than 1 piece of equipment shares a breaker you must provide protection for the individual The CP470 requires an additional dedicated drain circuits. E.g. by connecting an in-line fuse for each wire.

  • Page 23: Transducer Connections

    • Cutting the transducer cable will void the warranty and invalidate the European CE mark. CP370 Transducer connections The CP370 is a ClearPulse sonar module designed for use with traditional transducers. Transducers must be installed in accordance with the instructions provided with the transducer.
  • Page 24 Dual transducer connections Broadband transducer connections D13257-2 Item Description D13258-2 CP370 Item Description Dual Speed and Temperature traditional CP470 transducer cable (part number E66022) Extension cable (optional) Cable to transducer connection Broadband transducer Cable to transducer connection Traditional transducer (e.g. Depth)
  • Page 25 High frequency transducer transducer Speed and Temperature transducer Note: When fitting transducer pairs ensure that channel A and channel B of the transducer cable are connected to the relevant transducer as shown in the table above. CP370 / CP470 / CP570...

  • Page 26: Network Connection

    • Refer to Chapter 10 Spares and accessories for a list of suitable transducer extension cables. • Raymarine recommends a maximum of one cable extension for any single transducer cable. • For best performance, keep all cable lengths to a minimum.
  • Page 27 Multiple multifunction display configuration A Raymarine network switch can be used to connect the unit to more than 1 multifunction display. Note: Ensure network cables and connections are tight and secure using any cable ties provided with your network hardware.
  • Page 28 Chapter 5: Mounting Chapter contents • 5.1 Mounting Mounting...
  • Page 29 5.1 Mounting 7. Tighten the screws (CP370 illustrated). Important: The fixing screws supplied with your product may not be suitable for the mounting surface. Please check the security and integrity of the mounted product before finalizing your installation. If necessary, obtain replacement or additional mounting screws to ensure a secure installation.
  • Page 30 Chapter 6: System checks and troubleshooting Chapter contents • 6.1 Initial power on test • 6.2 Troubleshooting System checks and troubleshooting...
  • Page 31 Operation instructions For detailed operation instructions for your product, refer to the documentation that accompanies your display. CP370 — Legacy multifunction display transducer set up To set up the sonar module / transducer on an E Classic, C-Series Widescreen, E-Series...

  • Page 32: Troubleshooting

    All Raymarine products are, prior to packing and shipping, subjected to comprehensive test and quality assurance programs. However, if you experience problems with the operation of your...

  • Page 33: Sonar Troubleshooting

    / RayNet network problem. • Check that the unit is correctly connected to the multifunction display or Raymarine network switch. If a crossover coupler or other coupler cable / adapter is used, check all connections ensuring connections are secure, clean and free from corrosion, replace if necessary.
  • Page 34 Possible causes Possible solutions With the product under load, using a multi-meter, check for high voltage drop across all connectors/fuses etc (this can cause the Fishfinder applications to stop scrolling or the unit to reset/turn off), replace if necessary. Vessel speed too high Slow vessel speed and recheck.
  • Page 35 Possible solutions Transducer does not have a speed element Install transducer with speed element to enable speed readings. Incorrect transducer selected (no speed Select a transducer that supports speed measurement from the Transducer displayed) Set-Up menu. CP370 / CP470 / CP570...
  • Page 36 LED Diagnostics CP370 / CP470 D13249-2 CP570 D13313-1 The LED on the front panel of the unit provides information on the status of the sonar module and notifies users of any problems within the unit. The LED blinks the following colors: •...
  • Page 37 • Ensure transducer cable and connections are blink disconnected secure and free from damage. • Power cycle unit to recover transducer information. • If problem persists contact Raymarine technical support. Amber 2 No network • Ensure network is powered. blinks detected •...
  • Page 38 Ambient • Ensure installation environment is within blinks temperature too recommendations. • Unit will recover when temperature falls within specifications. • If problem persists contact Raymarine technical support. Red 4 Problems • Power cycle unit to recover. blinks with internal •...
  • Page 39 Chapter 7: Maintenance Chapter contents • 7.1 Routine checks • 7.2 Unit cleaning instructions Maintenance...
  • Page 40 Be careful to avoid scratching the transducers face. If your transducer has a paddlewheel you can wet sand with fine grade wet/dry paper. Note: Harsh cleaning solvents such as acetone may damage the transducer. CP370 / CP470 / CP570...
  • Page 41 Chapter 8: Technical support Chapter contents • 8.1 Raymarine product support and servicing • 8.2 Viewing product information Technical support...

  • Page 42: Viewing Product Information

    8.1 Viewing product information You can view information about your unit from the Diagnostics menu on a compatible multifunction display. This option displays information such as product serial number and software version. With the Homescreen displayed: 1. Select Set-up. 2. Select Maintenance. 3.
  • Page 43 Chapter 9: Technical specification Chapter contents • 9.1 CP370 Technical specification • 9.2 CP470 Technical specification • 9.3 CP570 Technical specification Technical specification...
  • Page 44 Conformance specification Conformance • EN 60945:2002 Conformance • EN 60945:2002 • EMC Directive • EMC Directive 2004/108/EC 2004/108/EC • Australia and New • Australia and New Zealand: C-Tick, Zealand: C-Tick, Compliance Level 2 Compliance Level 2 CP370 / CP470 / CP570...
  • Page 45 9.3 CP570 Technical specification Physical specification Dimensions • Width: 352.5 mm (13.9 in). • Height: 248.1 mm (9.8 in). • Height (including connectors): 328.1 mm (12.9 in). • Depth: 109.9 mm (4.3 in). Weight 6.35 kg (14.0 lbs) Power specification Nominal supply voltage 12 V / 24 V dc Operating voltage range...
  • Page 46 Chapter 10: Spares and accessories Chapter contents • 10.1 Spares and accessories • 10.2 Network hardware • 10.3 Network cable connector types • 10.4 RayNet to RayNet cables and connectors • 10.5 RayNet to RJ45 adapter cables • 10.6 RJ45 SeaTalk network and patch cables Spares and accessories...

  • Page 47: Spares And Accessories

    RJ45 SeaTalk devices to a HS5 RayNet network switch (in conjunction with suitable adapter cables). • Enables 2 RJ45 SeaTalk cables to be connected together to extend the length of the cabling. Recommended for external installations. CP370 / CP470 / CP570...
  • Page 48 10.3 Network cable connector types There are 2 types of network cable connector — RayNet, and RJ45 SeaTalk RJ45 SeaTalk connector. RayNet connector. Spares and accessories...
  • Page 49 This adapter features a RayNet (female) socket at one end, and a RayNet (male) plug at the other end. Adapter cable with a RayNet (male) Suitable for joining (female) RayNet cables together for plug on both ends. longer cable runs. CP370 / CP470 / CP570...
  • Page 50 • E55051 (10 m). • A62135 (15 m). • E55052 (20 m). Adapter cable with a RayNet (female) Directly connect a Raymarine radar scanner with an RJ45 socket on one end, and a waterproof SeaTalk (male) cable to a RayNet network switch (e.g.
  • Page 51 10.6 RJ45 SeaTalk network and patch cables 1.5 m (4.9 ft) 5 m (16.4 ft) 10 m (32.8 ft) 15 m (49.2 ft) 20 m (65.6 ft) E55049 E55050 E55051 A62135 E55052 1.5 m (4.9 ft) 5 m (16.4 ft) 10 m (32.8 ft) 15 m (49.2 ft) 20 m (65.6 ft)
