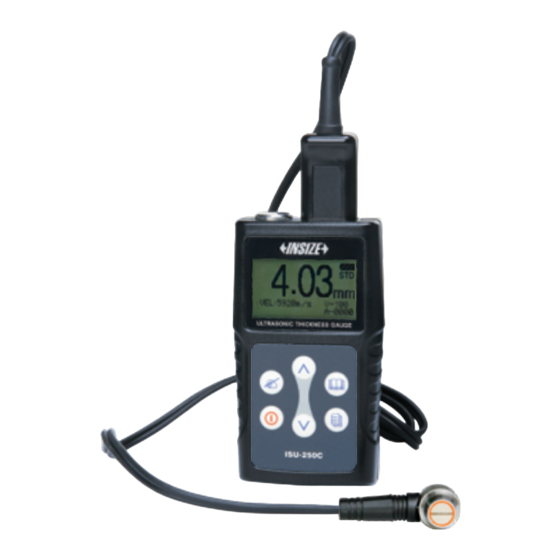

- Page 1 MN-ISU-250C-E www.insize.com ISU-250C ULTRASONIC THICKNESS GAUGE OPERATION MANUAL...
- Page 2 Technical Specification Attention In order to obtain good measurement precision, you need to clear Measurement range 0.8mm～300mm away the rusty, sundry, grease, etc. on the working surface. Resolution 0.01mm(0.001〞), 0.1mm (0.01〞) Please use the couplant on the working surface, measure Velocity range 1000m/s～9999m/s repeatedly around the target area and take average value.
- Page 3 Codel Measuring Range Frequency Temperature Function ISU-T12 2.0-400mm/0.08-16.00" 2.0MHZ <60℃/ 140°F --On/Off Key ISU-T06 0.7-50mm/0.03-2.00" 7.5MHZ <60℃/ 140°F --Esc. Menu ISU-T08 0.8-300mm/0.03-12.00" 5.0MHZ <60℃/ 140°F - - M e n u K e y --Confirm Key ISU-T13 3.0-100mm/0.08-4.00" 5.0MHZ <350℃/ 662°F --Up Arrow Key --Backlight Key Overview the display unit...
- Page 4 ① Battery indicator example, input value = 5.00mm and the real thickness is ② Current velocity 5.03mm, the display will show diff 0.03mm. If the real value ③ Current transducer model is 4.97 m, the gauge will display, -0.03mm. ④ Measurement value and measurement mode AVERAGE - The gauge will display the average thickness of ⑤...
- Page 5 Press key to enter/confirm. Press into the menu，press into “FUNCTION”, Calibration the screen will display: Press into menu. 1. Power off 2. Gain adjustment 3. Language 6. Information 4. Contrast 5. Default Press into “Calibration”. Press into the selected item, press to confirm.
- Page 6 Specification Of Transducers Glycerin 0.075 1900 Gold 0.130 3200 0.160 4000 Inconel 0.220 5700 Frequency Measuring range Code Diameter( Ød Iron 0.230 5900 Iron (cast) 0.180 4600 ISU-T08 5.0MHz 10.8mm 0.8-300mm Lead 0.085 2200 ISU-T06 7.5MHz 8.5mm 0.7-50mm Magnesium 0.230 5800 ISU-T12 2.0MHz...
