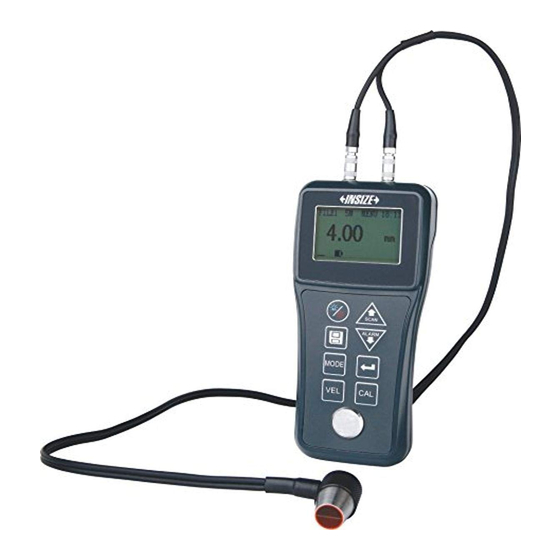

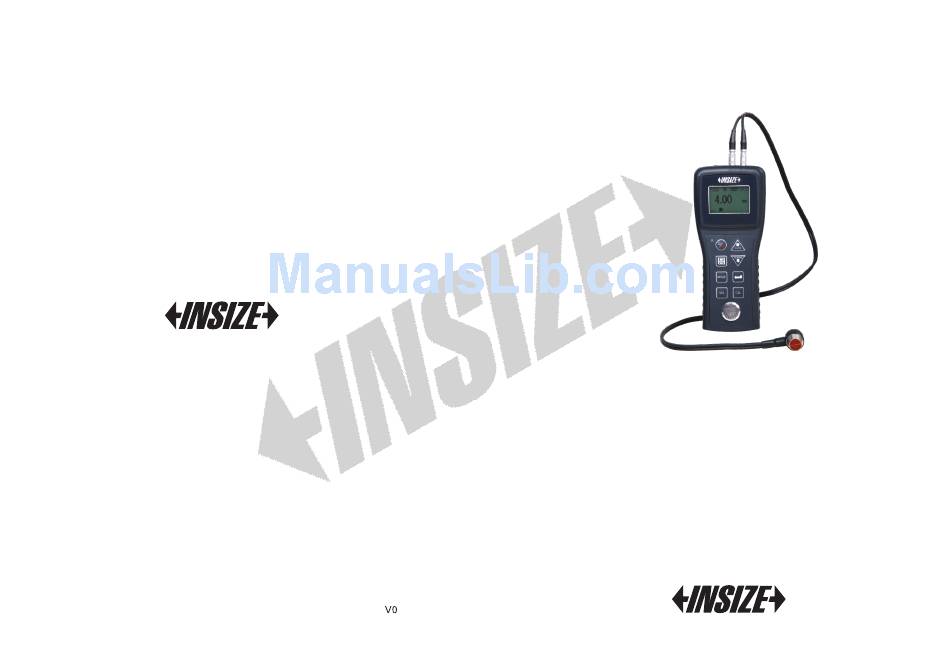

- Page 1 MN-ISU-200D-E www.insize.com ISU-200D ULTRASONIC THICKNESS GAUGE OPERATION MANUAL...
- Page 2 Attention Overview In order to obtain good measurement precision, you need to clear The Thickness Gauge is a digital ultrasonic thickness gauge. Base on the away the rusty, sundry, grease, etc. on the working surface. same operating principles as SONAR is capable of measuring the thickness of various materials with accuracy as high as 0.01mm or Please use the couplant on the working surface, measure 0.001inch.
-
Page 3: Key Functions
Key Functions 20:30: System time. : Sign of coupling. : Battery information(When it is , the battery should Function be charged). --Turn on/off the instrument (long press) : Sign of scan mode. --Turn on/off the backlight (short press) : Sign of difference mode. Data save: after get a new reading, press this key once and the screen appear “*”, then long press this key to save the reading. -
Page 4: System Setup
Zero setting: Calibration to a known velocity: Make measurement of the test block whose thickness is Plug the transducer into the instrument, make sure that the known(for example: 10mm) according to chapter “Thickness connector are fully engaged. Check that the wearface of the measurement”... - Page 5 Difference mode setting: Enter difference mode setting according to “ scan mode setting”. Press to turn on the difference mode and enter menu “TARGET MENU” as below: Press key to enter the main menu interface. Press key to change the target value and press to go back.
-
Page 6: Memory Management
Press key to “froze” the reading, then press key change the value to standard value and then press key confirm. At the same time the tester remind you to make thick calibration as below: Press key to view all data saved. Press key to exit. -
Page 7: Standard Delivery
Double click the “hypertrm” and input a name for the connection Enter the function menu and select the tab “Send data to PC”,then as following picture, then click “OK”. press key. The screen will display the data saved before, now you can edit, save, print the data. -
Page 8: Sound Velocity
Sound velocity Glycerin 0.075 1900 Gold 0.130 3200 0.160 4000 Material Sound Velocity Inconel 0.220 5700 Inch/µS Iron 0.230 5900 0.013 Iron (cast) 0.180 4600 Aluminum 0.250 6300 Lead 0.085 2200 Alumina Oxide 0.390 9900 Magnesium 0.230 5800 Beryllium 0.510 12900 Mercury 0.057...
