Summary of Contents for insize ISN-L70

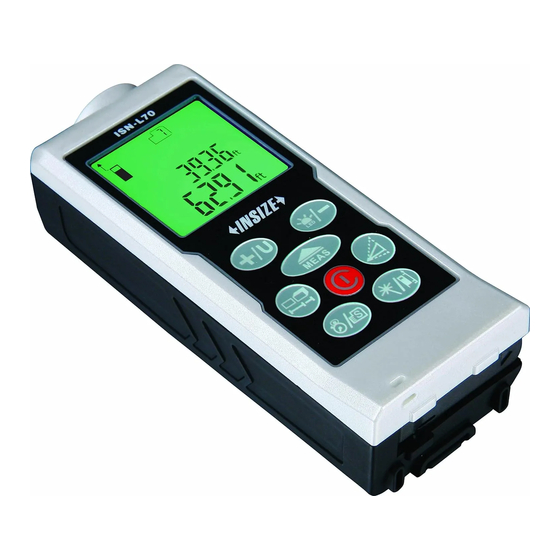

- Page 1 MN ISN-L70 www.insize.com ISN-L70 LASER DISTANCE METER OPERATION MANUAL...
- Page 2 With continuos measuring to track max and min value. Automatic power off: laser-30s, main unit-180s. Structure: ISN-L70 A. LCD B. Add/Unit switch C. Measure/Dyna-measure D. Measure Function(Distance/Area/Volume/Stake-out) E. Countdown measure/Memories F. Strap holder G. Laser emitting window H. Subtract/Back-light I. Pythagoras J.
- Page 3 Note: Keeping instrument stable when measuring. Inserting the batteries: ISN-L70 is powered by two AA batteries. Remove battery cover and observing correct polarity when install the batteries, then close the battery cover.
- Page 4 Short press to set time, then short press to measure. change the unit by long pressing Measuring reference: ISN-L70 has three reference: front, rear, pintail. Volume measuring: Short press to change reference. Short press twice to enable the volume measuring.
- Page 5 When in dyna-measuring mode, you can get every stakes you need follow the arrow. Standby screen Area measuring Short press to measure length, width and height follow the instruction on the screen, then the volume is showed. You can change the unit by long pressing Memory recall: Long press to recall the memory.
- Page 6 Specification Measuring range 0.05-70m Accuracy ±1.5mm Resolution 0.001m Measuring speed 0.5 sec. Dust/waterfproof IP52 Laser type 650 nm, Class II, <1mW Beam size 25mm@30m Memory Up to 20 results Power supply 2 x 1.5V AA batteries, for 10000 measures Dimension(L×W×H) 110x45x30mm Weight 130g...
