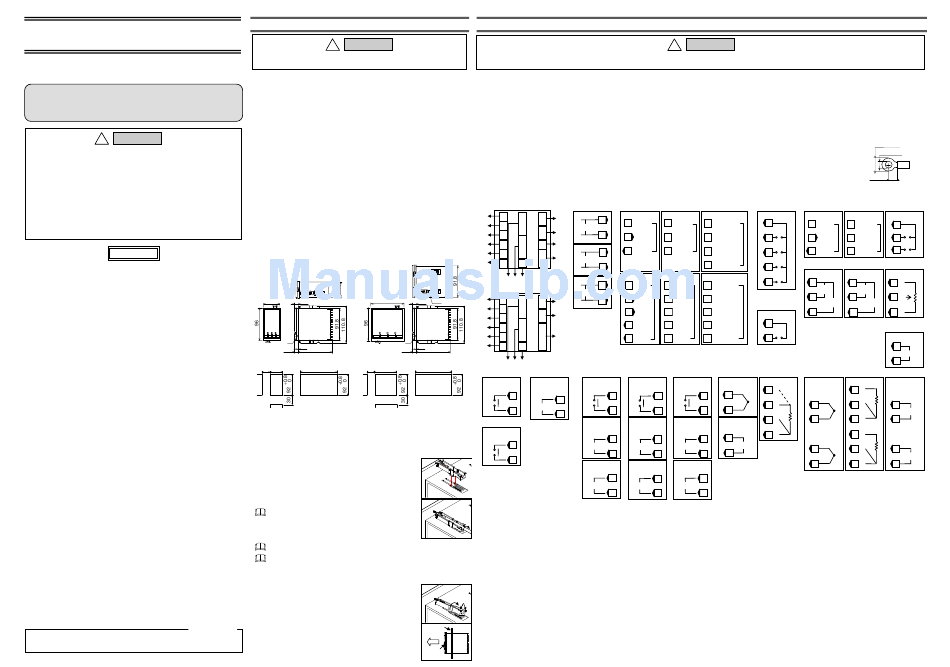

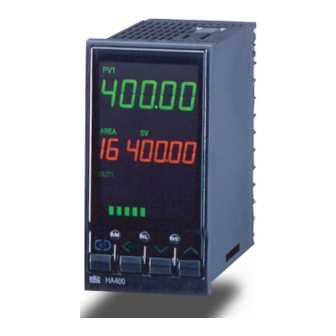

RKC INSTRUMENT HA400 Instruction Manual

Digital Controller
HA400/HA900 Instruction
High-speed AT type
HA401/HA901 Manual
Standard AT type
Thank you for purchasing this RKC product. In order to achieve maximum performance and ensure
proper operation of your new instrument, carefully read all the instructions in this manual. Please
place the manual in a convenient location for easy reference.
For detailed handling procedures and key operations, refer to separate
HA400/HA900/HA401/HA901 Operation Manual (IMR01N02-E).
The manual can be downloaded from the official RKC website:
http://www.rkcinst.com/english/manual_load.htm.
! WARNING
 To prevent injury to persons, damage to instrument and equipment, a
suitable external protection device shall be required.
 All wiring must be completed before power is turned on to prevent electric
shock, fire or damage to instrument and equipment.
 This instrument must be used in accordance with the specifications to
prevent fire or damage to instrument and equipment.
 This instrument is not intended for use in locations subject to flammable or
explosive gases.
 Do not touch high-voltage connections such as power supply terminals,
etc. to avoid electric shock.
 RKC is not responsible if this instrument is repaired, modified or
disassembled by other than factory-approved personnel. Malfunction can
occur and warranty is void under these conditions.
CAUTION
 This product is intended for use with industrial machines, test and measuring equipment. (It is not
designed for use with medical equipment and nuclear energy.)
 This is a Class A instrument. In a domestic environment, this instrument may cause radio
interference, in which case the user may be required to take additional measures.
 This instrument is protected from electric shock by reinforced insulation. Provide reinforced
insulation between the wire for the input signal and the wires for instrument power supply, source
of power and loads.
 Be sure to provide an appropriate surge control circuit respectively for the following:

If input/output or signal lines within the building are longer than 30 meters.

If input/output or signal lines leave the building, regardless the length.
 This instrument is designed for installation in an enclosed instrumentation panel. All high-voltage
connections such as power supply terminals must be enclosed in the instrumentation panel to
avoid electric shock by operating personnel.
 All precautions described in this manual should be taken to avoid damage to the instrument or
equipment.
 All wiring must be in accordance with local codes and regulations.
 All wiring must be completed before power is turned on to prevent electric shock, instrument
failure, or incorrect action. The power must be turned off before repairing work for input break
and output failure including replacement of sensor, contactor or SSR, and all wiring must be
completed before power is turned on again.
 To prevent instrument damage as a result of failure, protect the power line and the input/output
lines from high currents with a suitable overcurrent protection device with adequate breaking capacity
such as fuse, circuit breaker, etc.
 Prevent metal fragments or lead wire scraps from falling inside instrument case to avoid electric
shock, fire or malfunction.
 Tighten each terminal screw to the specified torque found in the manual to avoid electric shock,
fire or malfunction.
 For proper operation of this instrument, provide adequate ventilation for heat dispensation.
 Do not connect wires to unused terminals as this will interfere with proper operation of the
instrument.
 Turn off the power supply before cleaning the instrument.
 Do not use a volatile solvent such as paint thinner to clean the instrument. Deformation or
discoloration will occur. Use a soft, dry cloth to remove stains from the instrument.
 To avoid damage to instrument display, do not rub with an abrasive material or push front panel
with a hard object.
 Do not connect modular connectors to telephone line.
 When high alarm with hold action/re-hold action is used for Event function, alarm does not turn
on while hold action is in operation. Take measures to prevent overheating which may occur if
the control device fails.
NOTICE
 This manual assumes that the reader has a fundamental knowledge of the principles of
electricity, process control, computer technology and communications.
 The figures, diagrams and numeric values used in this manual are only for purpose of illustration.
 RKC is not responsible for any damage or injury that is caused as a result of using this
instrument, instrument failure or indirect damage.
 RKC is not responsible for any damage and/or injury resulting from the use of instruments made
by imitating this instrument.
 Periodic maintenance is required for safe and proper operation of this instrument. Some
components have a limited service life, or characteristics that change over time.
 Every effort has been made to ensure accuracy of all information contained herein. RKC makes
no warranty expressed or implied, with respect to the accuracy of the information. The
information in this manual is subject to change without prior notice.
 No portion of this document may be reprinted, modified, copied, transmitted, digitized, stored,
processed or retrieved through any mechanical, electronic, optical or other means without prior
written approval from RKC.
Product Check
Mounting brackets: 2 (Waterproof/Dustproof type: 4)
Instruction Manual: 1 (IMR01N01-E8)
1. MOUNTING
WARNING
!
To prevent electric shock or instrument failure, always turn off the power
IMR01N01-E8
before mounting or removing the instrument.
 Mounting Cautions
(1) This instrument is intended to be used under the following environmental conditions.
(IEC61010-1) [OVERVOLTAGE CATEGORY II, POLLUTION DEGREE 2]
(2) Use this instrument within the following environment conditions:
 Allowable ambient temperature: 10 to 50 C (14 to 122 F)
 Allowable ambient humidity:
5 to 95 %RH
(Absolute humidity: MAX. W. C 29 g/m
 Installation environment conditions: Indoor use, Altitude up to 2000 m
(3) Avoid the following conditions when selecting the mounting location:
 Rapid changes in ambient temperature
 Excessive dust, salt or iron particles.
 Excessive induction noise, static electricity,
which may cause condensation.
 Corrosive or inflammable gases.
magnetic fields or noise.
 Direct vibration or shock to the mainframe.  Direct air flow from an air conditioner.
 Water, oil, chemicals, vapor or steam  Exposure to direct sunlight.
 Excessive heat accumulation.
splashes.
(4) Mount this instrument in the panel considering the following conditions:

Provide adequate ventilation space so that heat does not build up.

Do not mount this instrument directly above equipment that generates large amount of heat
(heaters, transformers, semi-conductor functional devices, large-wattage resistors.)
 If the ambient temperature rises above 50 C (122 F), cool this instrument with a forced air fan,
cooler, etc. Cooled air should not blow directly on this instrument.

In order to improve safety and the immunity to withstand noise, mount this instrument as far
away as possible from high voltage equipment, power lines, and rotating machinery.
High voltage equipment: Do not mount within the same panel.
Power lines: Separate at least 200 mm.
Rotating machinery: Separate as far as possible.

For correct functioning mount this instrument in a horizontal position.
(5) In case this instrument is connected to a supply by means of a permanent connection, a switch or
circuit-breaker shall be included in the installation. This shall be in close proximity to the equipment
and within easy reach of the operator. It shall be marked as the disconnecting device for the
equipment.
 Dimensions
 HA400/HA401  HA900/HA901
(Unit: mm) (Unit: mm)
48 11.1
*1
(1)
10.1 100
*3, *4
Close mounting
Individual mounting Individual mounting
0.6
0.6
L
25 45  25 92

0
0
L = 48×n－3
n: Number of units (2 to 6)
*1 Rubber (Optional) *2 Up to 4 mounting brackets may be used.
*3 If the HA400/HA401s or HA900/HA901s have waterproof/dustproof (optional), protection will be compromised and
not meet IP65 by close mounting.
*4 When controllers are closely mounted, ambient temperature must not exceed 50 °C (122 F).
For mounting of the HA400/HA401 or HA900/HA901, panel thickness must be between 1 to 10 mm.
When mounting multiple HA400/HA401s or HA900/HA901s close together, the panel strength should be checked to
ensure proper support.
 Mounting Procedures
1. Prepare the panel cutout as specified in  Dimensions.
2. Insert the instrument through the panel cutout.
3. Insert the mounting bracket into the mounting groove of the instrument.
Do not push the mounting bracket forward. (Fig. 1)
4. Secure the bracket to the instrument by tightening the screw.
Take care to refrain from moving the bracket forward.
5. Only turn about one full revolution after the screw touches the panel. (Fig. 2)
If the screw has been rotated too tight, the screw may turn
idle. In such a case, loosen the screw once and tighten it
again until the instrument is firmly fixed.
6. The other mounting bracket should be installed in the same way
described in 3. to 5.
When the instrument is mounted, always secure with two mounting brackets so that upper
and lower mounting brackets are positioned diagonally.
The waterproof/dustproof (optional) on the front of the instrument conforms to IP65 when
mounted on the panel. For effective waterproof/dustproof, the gasket must be securely
placed between instrument and panel without any gap. If gasket is damaged, please contact
RKC sales office or the agent.
 Removal Procedures
1 . Turn the power OFF.
2. Remove the wiring.
3. Loosen the screw of the mounting bracket.
4. Hold the mounting bracket by the edge () and tilt it () to remove from
the case. (Fig. 3)
5. The other mounting bracket should be removed in the same way as
described in 3. and 4.
6. Pull out the instrument from the mounting cutout while holding the front
panel frame of this instrument. (Fig. 4)
2. WIRING
To prevent electric shock or instrument failure, do not turn on the power until all wiring is completed. Make sure that the wiring is correct before applying power
to the instrument.
 Wiring Cautions
 For thermocouple input, use the appropriate compensation wire.
 For RTD input, use low resistance lead wire with no difference in resistance between the three
or four lead wires.
 To avoid noise induction, keep input signal wire away from instrument power line, load lines
and power lines of other electric equipment.
3  Signal connected to Voltage input and Current input shall be low voltage defined as "SELV"
dry air at 101.3 kPa)
circuit per IEC 60950-1.
 If there is electrical noise in the vicinity of the instrument that could affect operation, use a noise
filter.
- Shorten the distance between the twisted power supply wire pitches to achieve
the most effective noise reduction.
- Always install the noise filter on a grounded panel. Minimize the wiring distance
between the noise filter output and the instrument power supply terminals to achieve
the most effective noise reduction.
- Do not connect fuses or switches to the noise filter output wiring as this will reduce
the effectiveness of the noise filter.
 Allow approximately 5 seconds for contact output when the instrument is turned on.
Use a delay relay when the output line is used for an external interlock circuit.
 Terminal Configuration
1-input controller
1 25 13
(1)
2 26 14 (10)
3 27 15
(2)
4 28 16
5 29 17 (11)
(3)
6 30 18
7 31 19
(4) (12)
8 32 20
9 33 21
(5)
10 34 22
(13)
(6) 11 35 23
12 36 24
(7) (8) (9)
2-input controller
1 25 13
(1)
96 11.1 *2 (10)
2 26 14
3 27 15
(2)
4 28 16
(11)
5 29 17
(3)
6 30 18
7 31 19
(4)
8 32 20
9 33 21
(5) (14)
10 34 22
*1
11 35 23
(6)
(1)
12 36 24
10.1 100 1
OUT1 and OUT2 are not isolated from each other except for relay or triac output.
2
Remote input, CT input, PFF input and FBR input are not isolated between measured input.
*3, *4
Close mounting
(7) (8) (9)
0.8 0.8
L
 
3 4
0 0
(4) Output 3
(2) Output 5
Sensor
Relay contact
power supply
OUT5
OUT3
3 
L = 96×n－4 7
NO
n: Number of units (2 to 6)
24V DC

4
8
3
(3) Output 4
(Optional)
Relay contact
OUT4
5
NO
6
Fig.1
3
When output 3 is used for a sensor
power supply (optional), outputs 4 and 5
are not available.
4
Output 3 can be used as a power supply
(optional) for the transmitter (pressure
sensor, temperature sensor, etc).
Fig.2
 Specifications
Power supply voltage:
90 to 264 V AC [Power supply voltage range], 50/60 Hz (Rating: 100 to 240 V AC)
21.6 to 26.4 V AC [Power supply voltage range], 50/60 Hz (Rating: 24 V AC)
21.6 to 26.4 V DC [Power supply voltage range] (Rating: 24 V DC)
Power consumption:
HA400/HA401: 16.5 VA max. (at 100 V AC)
15.0 VA max. (at 24 V AC)
HA900/HA901: 17.5 VA max. (at 100 V AC)
16.0 VA max. (at 24 V AC)
Measured input: TC input, RTD input, Voltage input, Current input
Fig. 3
Optional input: Remote input (Not isolation type), Feedback resistance input,


CT input, Event input, Power feed forward input
Output 1 to Output 3:
Relay contact output: 250 V AC, 3 A (Resistive load), 1a contact
Electrical life: 300,000 times or more (Rated load)
Panel Fig. 4
Voltage pulse output: 0/12 V DC (Allowable load resistance 600  or more)
Pull out
Current output: 0 to 20 mA DC, 4 to 20 mA DC
(Allowable load resistance 600  or less)
Front panel
frame
WARNING
!
 Power supply wiring must be twisted and have a low voltage drop.
 This instrument with 24 V power supply is not provided with an overcurrent protection device.
For safety install an overcurrent protection device (such as fuse) with adequate breaking capacity
close to the instrument.
- Fuse type: Time-lag fuse (Approved fuse according CSA C22.2 No.248.14 or UL248-14)
- Fuse rating: Rated current: 1.0 A
 For an instrument with 24 V power supply input, supply power from "SELV" circuit defined as IEC
60950-1.
 A suitable power supply should be considered in end-use equipment. The power supply must be
in compliance with a limited-energy circuits (maximum available current of 8 A).
 Use the solderless terminal appropriate to the screw size.
- Screw size:
- Recommended tightening torque: 0.4 N･m (4 kgf･cm)
- Specified solderless terminals:
- Applicable wire: Solid/twisted wire of 0.25 to 1.65 mm
 Make sure that during field wiring parts of conductors can not
come into contact with adjacent conductive parts.
(All the terminal configuration of HA400, HA401, HA900 and HA901 is the same.)
(1) Power supply (7) Communication 2 (Optional)
RS-232C
AC L RS-485 PROFIBUS
1
25 25 25
VP
SG SG
100-240 V
2
26 26 26
SD T/R (A)
N RxD/TxD-P
AC
L
27 27 27
1 RD T/R (B)
RxD/TxD-N
24 V
28
DGND
2
N

RS-422A DeviceNet CC-Link
DC
25 25 25
1
SG V DA
24 V
26 26 26
T (A) CAN-H DB
 2
27 27 27
T (B) Drain DG
28 28 28
R (A) CAN-L SLD
29 29 29
R (B)
V FG
1 1
(4) Output 3 (5) Output 2 (6) Output 1 (13) Measured input (1-input)
Relay contact TC
Relay contact Relay contact
OUT3
OUT2 OUT1 
11 23
7 9
NO NO NO TC

10 12 24
8
Voltage pulse/ Voltage pulse/ Voltage pulse/
Voltage/Current
Voltage/Current Voltage/Current
Voltage/Current
IN
OUT1 
 OUT3 OUT2 

23
11
7 9
  

12 24
8 10
Triac
Triac Triac
OUT3 OUT1
OUT2
11
7
9
12
10
8
Voltage output:
Triac output:
Sensor power supply output (Optional) [Only OUT3 is selectable]:
22.5 VA max. (at 240 V AC)
430 mA max. (at 24 V DC) Output 4 and Output 5:
24.0 VA max. (at 240 V AC) Relay contact output:
470 mA max. (at 24 V DC)
Control method:
Allowable ambient temperature:
Allowable ambient humidity: 5 to 95 %RH
Operating environment:
Weight:

5.5 MAX
M3×6 (With 5.8×8 square washer)

3.2 MIN
With isolation
2
4 mm
5
(8) Input (10) Communication 1/Input (Optional)
Contact RS-232C Contact
RS-485
30
13 13 13
SG SG
DI1 DI6
31 14 14 14
SD T/R (A)
DI7
DI2
15
15 15
32 RD T/R (B)
DI3
2
(11) Input
33
CT CT/PFF
FBR
DI4
34 16 16 16
O
CT1 CT1
(Optional)
17 17 17
W
5 CT2 PFF
(9) Input
18 18 18
C
Contact
35
CT: Current transformer input
2
(12) Input
PFF: Power feed forward input
DI5
FBR: Feedback resistance input
36 Remote

5 19
When the CC-Link communication
(Optional)
(optional) is specified, these
RS

terminals are not available.
20
(14) Measured input (2-input)
RTD
TC RTD Voltage/Current
19
21
A A
RTD2 IN2
 
20 20 20
22
A B
TC2
RTD
 
23 21 21 21
B B
24 22
B A
RTD1 IN1


23 23 23
B
TC1
 
24 24 24
B
In 2-input controller, input 1 and input 2 can be different
input types. Also, input 2 can be used as remote input
(Isolation type)
0 to 5 V DC, 1 to 5 V DC, 0 to 10 V DC
(Allowable load resistance 1 k or more)
Allowable load current: 0.4 A Minimum load current: 30 mA
Load voltage: 75 to 250 V AC
Rated voltage: 24 V DC  5 % Rated current: 24 mA max.
250 V AC, 1 A (Resistive load), 1a contact
Electrical life: 300,000 times or more (Rated load)
Brilliant PID control (Direct action, Reverse action,
Position proportioning or Cascade is available)
10 to 50 C (14 to 122 F)
3
Absolute humidity: 29 g/m dry air at 101.3 kPa
There should be neither corrosive gases nor much dust.
HA400/HA401: Approx. 360 g
HA900/HA901: Approx. 460 g
