Summary of Contents for SHOWTEC LED Dim Pro
- Page 1 MANUAL ENGLISH LED Dim Pro Ordercode: 50546 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
LED Dim Pro Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the mains............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Controller Front ................................... -
Page 3: Warning
LED Dim Pro Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 5: Return Procedure
LED Dim Pro Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device
Description of the device The LED Dim Pro is a very user friendly LED dimmer for RGB and RGBW strips. It can be used to control 12V or 24V constant voltage LED strips by DMX. Besides DMX control, it can also be used as stand-alone controller for one scene or chase. -
Page 7: Controller Front

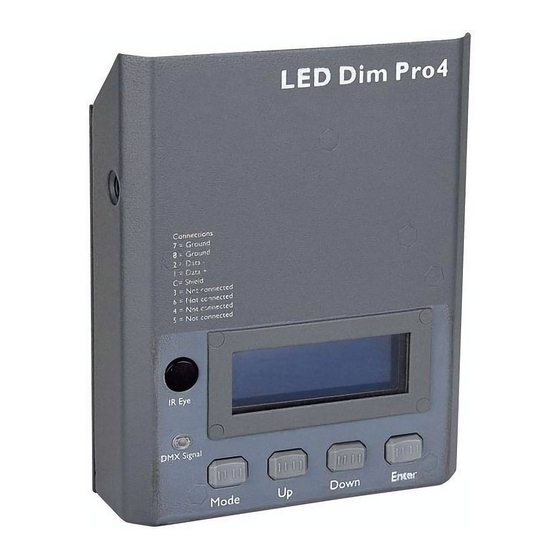

LED Dim Pro Controller Front IR Eye DMX Signal indicator Mode button Up button Down button Enter button Display 50546... -
Page 8: Controller Side
LED Dim Pro Controller Side Signal Out connector (RGBWV+) Power In connector Outgoing data signal Incoming data signal Extra IR connector 50546... -
Page 9: Installation
LED Dim Pro Installation Remove all packing materials from the LED Dim Pro. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 10: Chase Mode
LED Dim Pro Chase Mode Press the button to switch between the eight options. Use the buttons to set the values. Press the button to exit the Chase Mode. Menu Structure 50546... -
Page 11: Specifications
LED Dim Pro Specifications Power supply: DC 12-24V Load @ 12V: max 8A/Channel (20A Total/240W) Load @ 24V: max 8A/Channel (20A Total/480W) Selectable PWM frequencies: 100Hz, 2kHz, 8kHz, 16kHz Housing: Metal, grey powder coated DMX In: RJ45 DMX Out: RJ45...
