MKIV
•

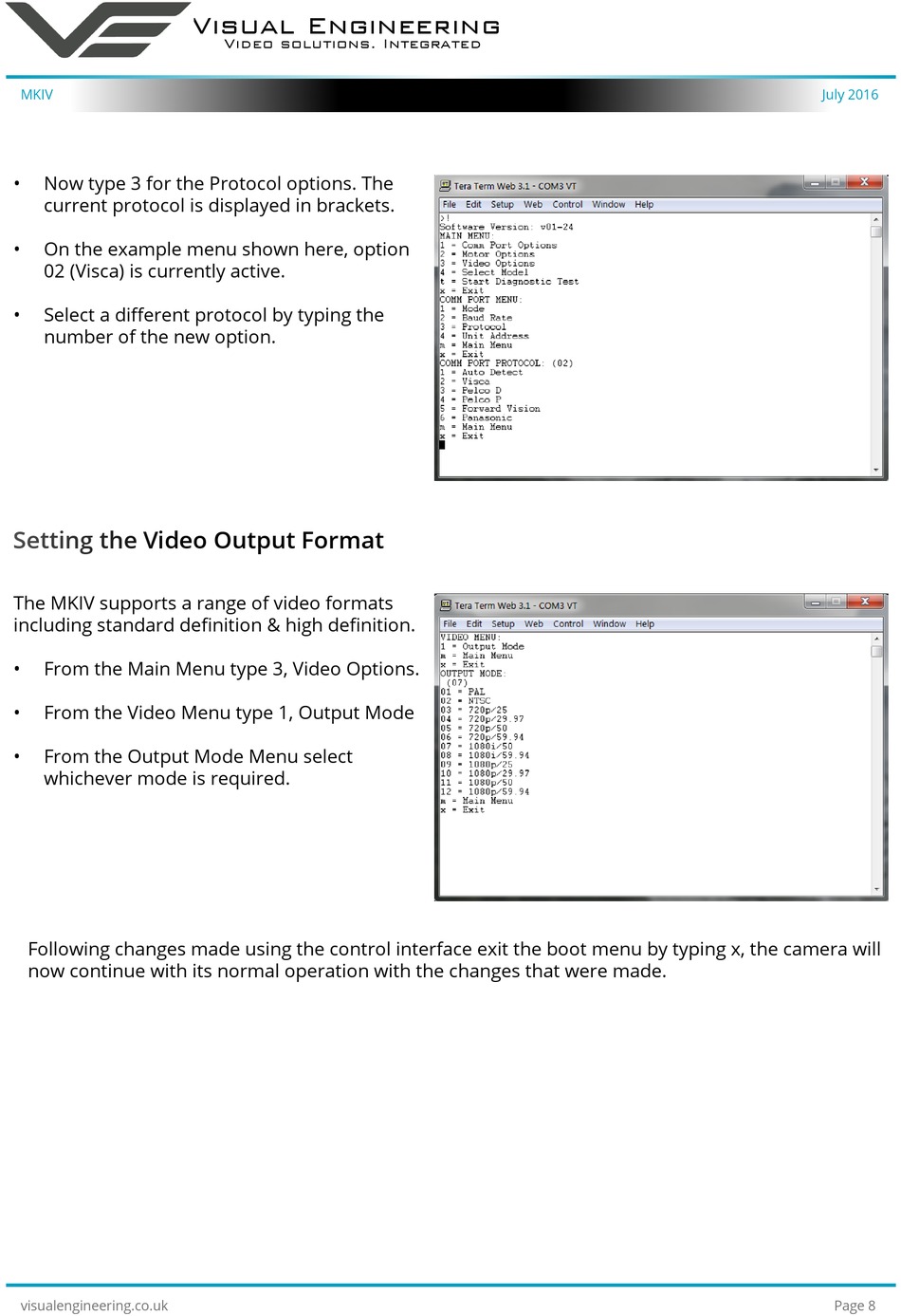

Now type 3 for the Protocol options. The
current protocol is displayed in brackets.
•
On the example menu shown here, option
02 (Visca) is currently active.
•
Select a different protocol by typing the
number of the new option.
Setting the Video Output Format
The MKIV supports a range of video formats
including standard definition & high definition.
•
From the Main Menu type 3, Video Options.
•
From the Video Menu type 1, Output Mode
•
From the Output Mode Menu select
whichever mode is required.
Following changes made using the control interface exit the boot menu by typing x, the camera will
now continue with its normal operation with the changes that were made.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
July 2016
Page 8
