Page 27
SECTION 8 - INSTALLATION
8.1 BASIC SYSTEM OVERVIEW
The Digital Nano/Nano+ is a salt chlorination system for pool or spa purification, and is designed to
operate in the following configurations:

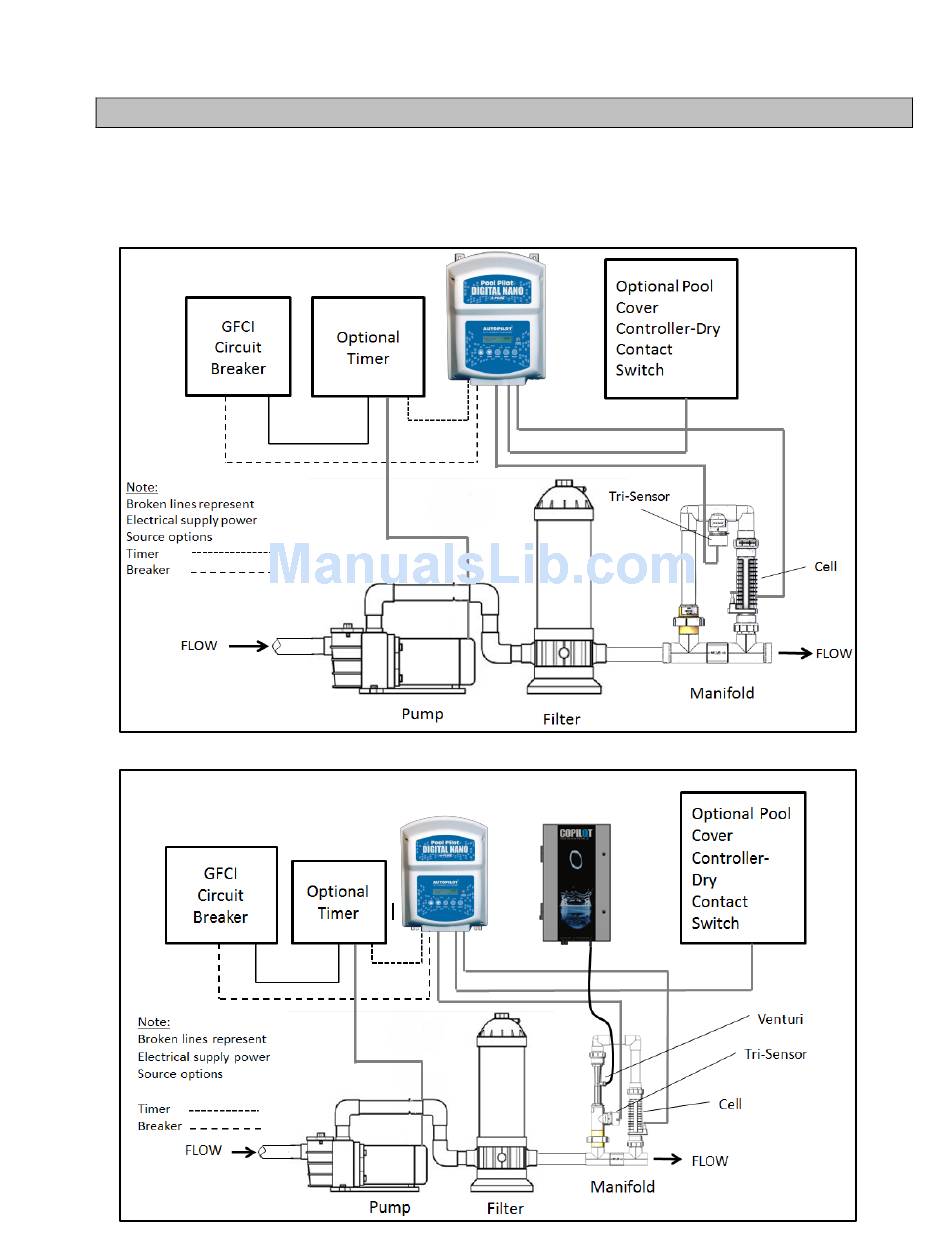

SHOWN WITH AUTOMATIC-FLOW BYPASS MANIFOLD ASSEMBLY (models PPM1 or PPM2):
Figure 10
®
®
SHOWN WITH OPTIONAL COPILOT
AND COPILOT
MANIFOLD ASSEMBLY:
Figure 11
