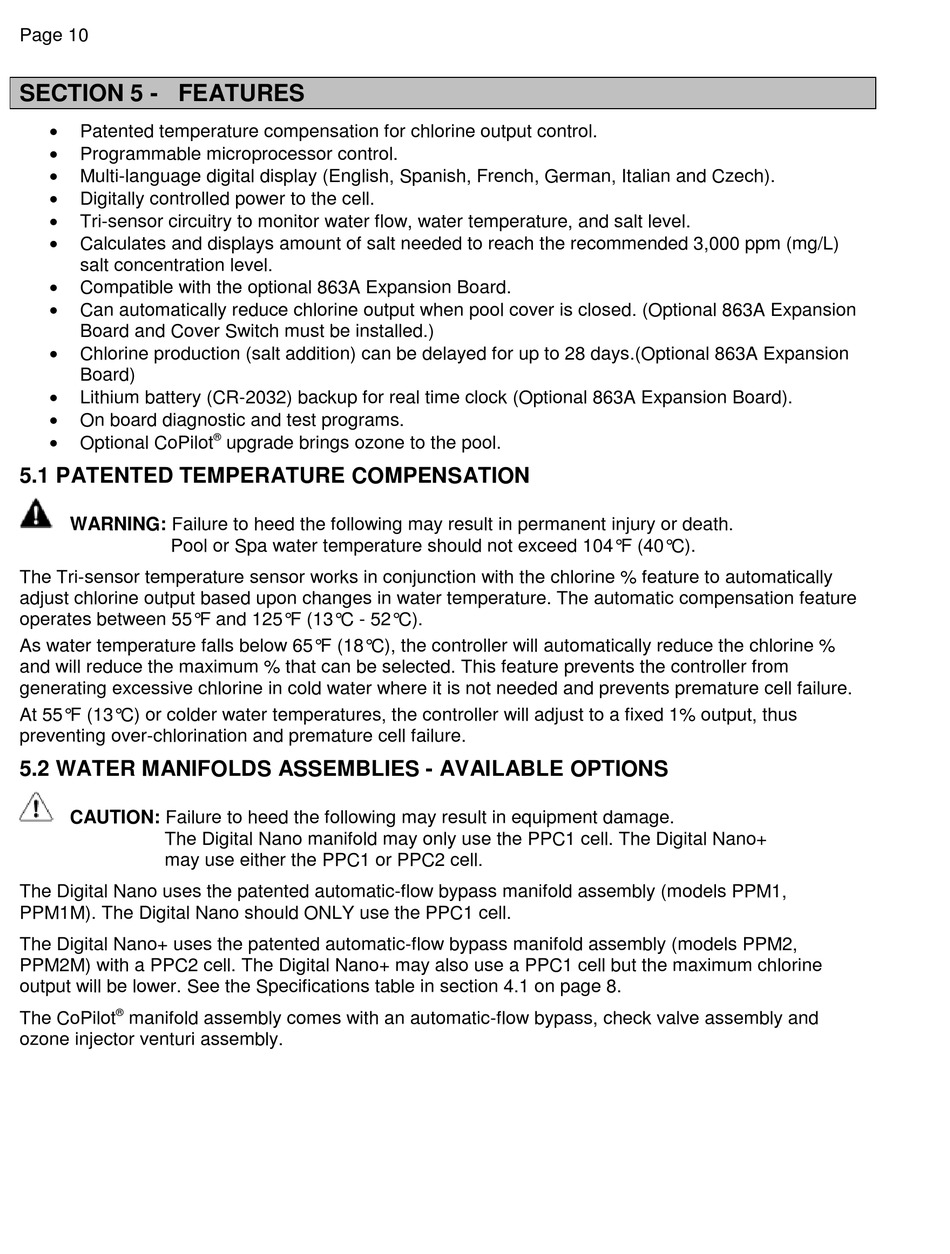

SECTION 5 - FEATURES


Patented temperature compensation for chlorine output control.

Programmable microprocessor control.

Multi-language digital display (English, Spanish, French, German, Italian and Czech).

Digitally controlled power to the cell.

Tri-sensor circuitry to monitor water flow, water temperature, and salt level.

Calculates and displays amount of salt needed to reach the recommended 3,000 ppm (mg/L)
salt concentration level.

Compatible with the optional 863A Expansion Board.

Can automatically reduce chlorine output when pool cover is closed. (Optional 863A Expansion
Board and Cover Switch must be installed.)

Chlorine production (salt addition) can be delayed for up to 28 days.(Optional 863A Expansion
Board)

Lithium battery (CR-2032) backup for real time clock (Optional 863A Expansion Board).

On board diagnostic and test programs.

Optional CoPilot

5.1 PATENTED TEMPERATURE COMPENSATION

WARNING: Failure to heed the following may result in permanent injury or death.
Pool or Spa water temperature should not exceed 104°F (40°C).
The Tri-sensor temperature sensor works in conjunction with the chlorine % feature to automatically
adjust chlorine output based upon changes in water temperature. The automatic compensation feature
operates between 55°F and 125°F (13°C - 52°C).
As water temperature falls below 65°F (18°C), the controller will automatically reduce the chlorine %
and will reduce the maximum % that can be selected. This feature prevents the controller from
generating excessive chlorine in cold water where it is not needed and prevents premature cell failure.
At 55°F (13°C) or colder water temperatures, the controller will adjust to a fixed 1% output, thus
preventing over-chlorination and premature cell failure.

5.2 WATER MANIFOLDS ASSEMBLIES - AVAILABLE OPTIONS

CAUTION: Failure to heed the following may result in equipment damage.
The Digital Nano manifold may only use the PPC1 cell. The Digital Nano+
may use either the PPC1 or PPC2 cell.
The Digital Nano uses the patented automatic-flow bypass manifold assembly (models PPM1,
PPM1M). The Digital Nano should ONLY use the PPC1 cell.
The Digital Nano+ uses the patented automatic-flow bypass manifold assembly (models PPM2,
PPM2M) with a PPC2 cell. The Digital Nano+ may also use a PPC1 cell but the maximum chlorine
output will be lower. See the Specifications table in section 4.1 on page 8.
®
The CoPilot manifold assembly comes with an automatic-flow bypass, check valve assembly and
ozone injector venturi assembly.
®
upgrade brings ozone to the pool.
