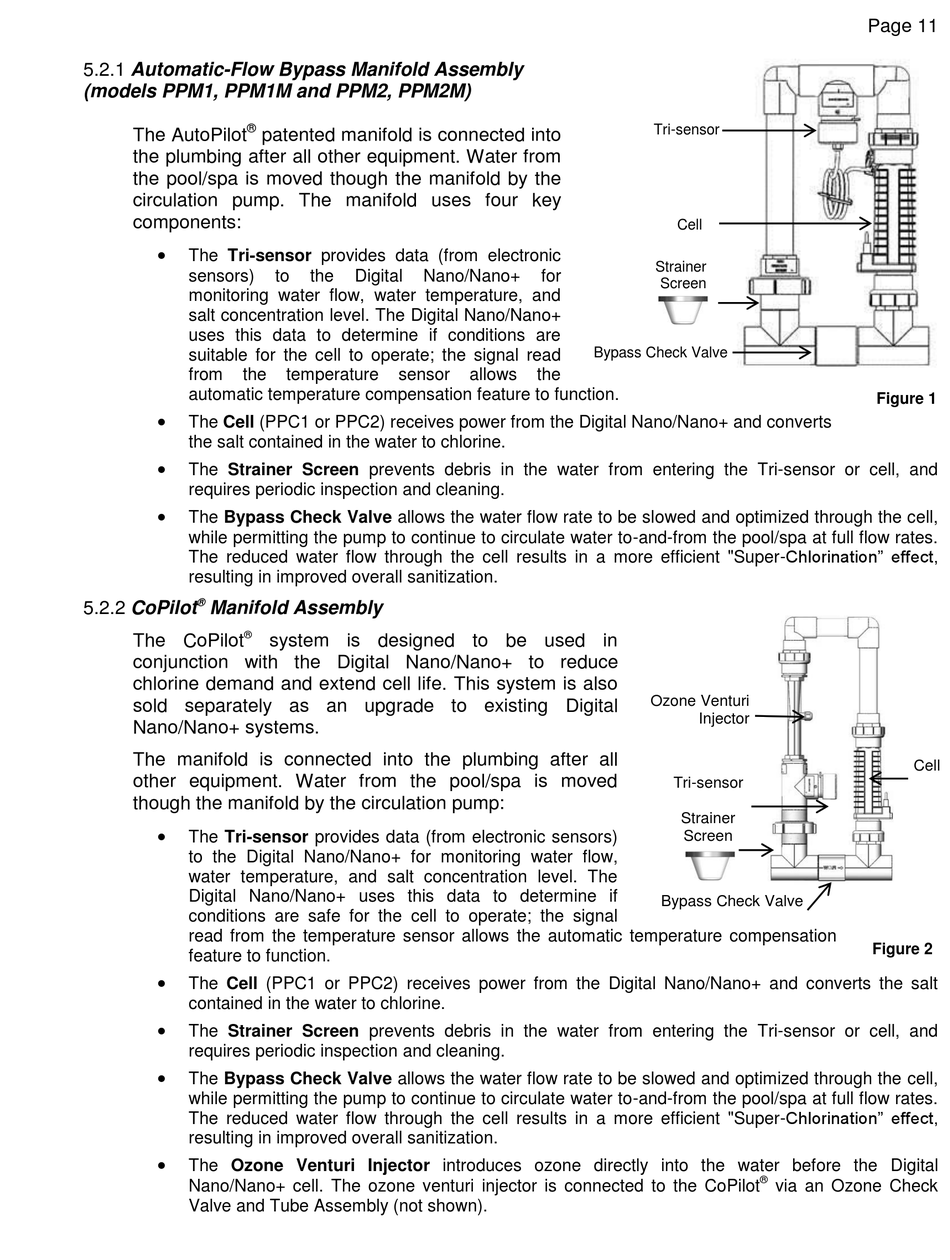

Automatic-Flow Bypass Manifold Assembly (Models Ppm1, Ppm1M And Ppm2, Ppm2M); Copilot Manifold Assembly - Autopilot Pool Pilot Digital Nano+ Owner's Manual

5.2.1 Automatic-Flow Bypass Manifold Assembly
(models PPM1, PPM1M and PPM2, PPM2M)
®
The AutoPilot patented manifold is connected into
the plumbing after all other equipment. Water from
the pool/spa is moved though the manifold by the
circulation pump. The manifold uses four key
components:

The Tri-sensor provides data (from electronic
sensors)
monitoring water flow, water temperature, and
salt concentration level. The Digital Nano/Nano+
uses this data to determine if conditions are
suitable for the cell to operate; the signal read
from the
automatic temperature compensation feature to function.

The Cell (PPC1 or PPC2) receives power from the Digital Nano/Nano+ and converts
the salt contained in the water to chlorine.

The Strainer Screen prevents debris in the water from entering the Tri-sensor or cell, and
requires periodic inspection and cleaning.

The Bypass Check Valve allows the water flow rate to be slowed and optimized through the cell,
while permitting the pump to continue to circulate water to-and-from the pool/spa at full flow rates.
The reduced water flow through the cell results in a more efficient "Super-Chlorination" effect,
resulting in improved overall sanitization.
®
5.2.2 CoPilot Manifold Assembly
®
The CoPilot
conjunction with the Digital Nano/Nano+ to reduce
chlorine demand and extend cell life. This system is also
sold separately as an upgrade to existing Digital
Nano/Nano+ systems.
The manifold is connected into the plumbing after all
other equipment. Water from the pool/spa is moved
though the manifold by the circulation pump:

The Tri-sensor provides data (from electronic sensors)
to the Digital Nano/Nano+ for monitoring water flow,
water temperature, and salt concentration level. The
Digital Nano/Nano+ uses this data to determine if
conditions are safe for the cell to operate; the signal
read from the temperature sensor allows the automatic temperature compensation
feature to function.

The Cell (PPC1 or PPC2) receives power from the Digital Nano/Nano+ and converts the salt
contained in the water to chlorine.

The Strainer Screen prevents debris in the water from entering the Tri-sensor or cell, and
requires periodic inspection and cleaning.

The Bypass Check Valve allows the water flow rate to be slowed and optimized through the cell,
while permitting the pump to continue to circulate water to-and-from the pool/spa at full flow rates.
The reduced water flow through the cell results in a more efficient "Super-Chlorination" effect,
resulting in improved overall sanitization.

The Ozone Venturi Injector introduces ozone directly into the water before the Digital
Nano/Nano+ cell. The ozone venturi injector is connected to the CoPilot
Valve and Tube Assembly (not shown).
to the Digital Nano/Nano+
temperature sensor
system is designed to be used in
for
Bypass Check Valve
allows the
Tri-sensor
Cell
Strainer
Screen
Ozone Venturi
Injector
Tri-sensor
Strainer
Screen
Bypass Check Valve
®
via an Ozone Check
Page 11
Figure 1
Cell
Figure 2
