IMPRESSA F90
Instructions for use
11/2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Impressa F90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jura Impressa F90

Summary of Contents for Jura Impressa F90

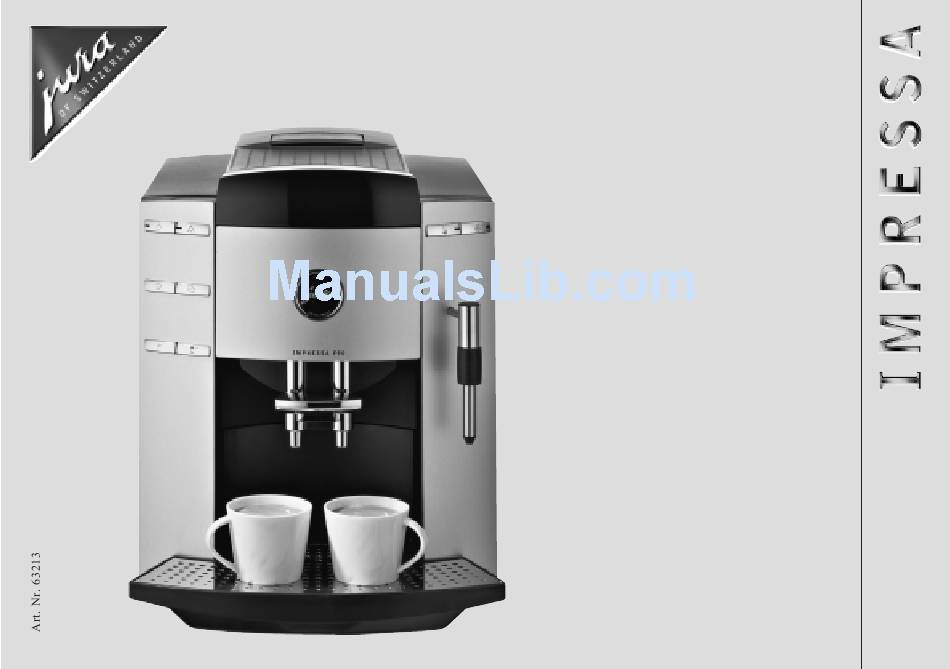

  • Page 1 IMPRESSA F90 Instructions for use 11/2001...

  • Page 2: Jura Impressa F90

    English......................6 – 123 Legend: DISPLAY: serves as information. DISPLAY: please follow the instructions shown. Jura Elektroapparate AG, CH-4626 Niederbuchsiten, = Note = Important = Tip Internet http://www.juraworld.com...
  • Page 3 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 7 Fig. 6 Fig. 8 Fig. 9 Fig. 10...
  • Page 4 Control elements A) Display dialog system B) Symbols (navigation in programming mode) C) Large cup D) Coffee E) Espresso F) Start (to start the draw-off operation) G) Coffee strength «mild» H) Coffee strength «Normal» Coffee strength «strong» 1 Programming key 2 Selection key for pre-ground coffee 3 Draw-off key 1 cup 4 Draw-off key 2 cups...

  • Page 5: Table Of Contents

    Contents 12.4 Programming the temperature ....page 13 12.5 Programming the water quantity ....page 13 Jura Impressa F90 12.6 Programming 1 cup......page 14 1. Description of control panel ......page 6 12.7 Programming the steam portion .....page 14 12.8 Programming the water portion .....page 14 2.

  • Page 6: Description Of Control Panel

    A gentle push on the control panel will do, and the sensors will The coffee machine is connected to mains supply via a mains read your wish from your fingertips. The Impressa F90 offers Café cable. Make sure nobody can trip over the mains cable. Make à...

  • Page 7: Check Electrical Fuse

    Open the cover of the bean tank (10). 3.2 Check electrical fuse To adjust the grinding degree turn the rotary switch (Fig. 2) to The coffee machine is designed for an electric current of 10 the required position. Ampères. Check if the electrical fuse has sufficient capacity. 4.

  • Page 8: Cup Illumination

    4.1 Cup illumination When the machine leaves the factory it is adjusted to WATER HARDNESS 3. You can adjust another hardness. To do this, The cup illumination puts your coffee in a good light, making it a proceed as follows: treat for the eyes.

  • Page 9: Installation Of Claris Filter Cartridges

    PLEASE SELECT 6. Installation of Claris filter cartridges If the Claris filter cartridge is installed properly, de-scaling Now you have activated the filter. In Programming Mode the of the coffee machine is no longer required. For more infor- water hardness selection function is no longer displayed. mation on the Claris filter cartridge refer to brochure «Claris».

  • Page 10: Drawing Off Coffee

    Use the key to switch on the coffee machine. 8.1 Drawing off espresso WWW. IMPRESSA-F-LINE.COM Use the key to switch on the coffee machine. HELLO, MACHINE HEATING UP WWW. IMPRESSA-F-LINE.COM PRESS MAINTENANCE HELLO, MACHINE HEATING UP MACHINE RINSING PRESS MAINTENANCE PLEASE SELECT MACHINE RINSING PLEASE SELECT...

  • Page 11: Drawing Off Pre-Ground Coffee

    LARGE CUP MILD LARGE CUP POWDER Your powder coffee is being prepared. Press symbol Display:PLEASE SELECT LARGE CUP MILD Your product is being prepared. PLEASE SELECT 9. Drawing off hot water You can adjust the water portion individually (see Chapter 8.3 Drawing off pre-ground coffee 12 Programming).

  • Page 12: Switching Off The Coffee Machine

    During frothing some water will escape the system before 12. Programming the actual steam draw-off. This does not affect the result, e.g. When your coffee machine leaves the factory it is adjusted such when frothing milk. that you can draw off coffee without having to change any settings. At the start of the water draw-off there can be splashing The However, you can programme various parameters individually.

  • Page 13: Programming The Aroma Intensive Or Standard

    12.3 Programming the aroma INTENSIVE or Press programming key until you hear an acoustic signal. STANDARD Touch symbol until the following message is displayed: TEMP. HIGH The aroma for the powder quantities ( ) was adjusted to Intensive in the factory. If requested it can also Press symbol , you will hear an acoustic signal and HIGH be set to Standard.

  • Page 14: Programming 1 Cup

    WATER QUANTITY 12.7 Programming the steam portion Use the symbols to reach the next programming stage The programmable steam portion time is between 3 and 60 or press programming key to quit Programming Mode. seconds. Use the key to switch on the coffee machine. 12.6 Programming 1 cup WWW.

  • Page 15: Programming The Time

    WATER PORTION Use symbols to adjust the minutes and confirm by pressing . The time is now programmed. Press symbol , you will hear an acoustic signal. Use the symbols to reach the next programming stage or PRESS KEY press programming key to quit Programming Mode.

  • Page 16: Programming The Automatic Switch-Off Time

    12.11 Programming the automatic switch-off time PRESS MAINTENANCE MACHINE RINSING You can programme your coffee machine such that it will switch off automatically after a certain time. You can PLEASE SELECT programme the switch-off time in a range between 0.5 and 9 Press programming key until you hear an acoustic signal.

  • Page 17: Connectivity

    12.14 Connectivity 13.3 No Drip tray With the Connectivity system it is possible for your IMPRESSA NO TRAY F90 to communicate with your PC and the Internet. To use this If this information is displayed, the drip tray is not installed feature, you will need a kit which you can order at www.impressa- properly or was not installed at all.

  • Page 18: Coffee Machine Calcified

    13.9 Regular service During normal use of the coffee lime scaling will occur. The Regular inspection carried out by the Jura Service will extend the degree of calcification depends on the hardness of the water you service life and reliability of your machine. Keep the original use.

  • Page 19: De-Scaling

    The procedure takes some 30 minutes. vals. After some intervals the de-scaling agent is discharged directly in the drip tray. Only use Jura de-scaling tablets. These are available at your authorized dealer. EMPTY TRAY. You will hear an acoustic signal.

  • Page 20: Disposal

    16. Disposal Please return the coffee machine to your local dealer, the service shop or to Jura for proper disposal (Fig. 3). 17. Tips for perfect coffee Adjustable coffee spout You can adjust the height of the coffee spout to the size of your...

  • Page 21: Messages

    Start de-scaling programme (Chapter 15) REPLACE FILTER Filter empty Change filter (Chapter 6.2) FAULT General fault 1) – switch off – disconnect from mains supply – connect machine to mains supply – switch on machine 2) Have machine checked by Jura Service...

  • Page 22: Problems

    Coffee only drips from Grinding degree too fine Coarser grinding gear adjustment the coffee spout Pre-ground coffee too fine Use a coarser pre-ground coffee If the messages or problems are still present, please contact your local authorized dealer or Jura Elektroapparate AG.

  • Page 23: Legal Information

    Any Pump pressure: static max. 15 bar obligations to be fulfilled by Jura Elektroapparate AG are stipu- Water tank: 1.9 litres lated in the corresponding purchase contract, which also contains the full and solely applicable warranty stipulations.
