Connecting With Lm3Sx00 Series - mikroElektronika mikroProg Manual

VCC-3.3V
1 2 TMS
3 4 TCK
5 6 TDO
7 8 TDI
9 10 SRSTn
VCC-CORE
C1
2u2
X1
8MHz
C2 C3
22pF 22pF

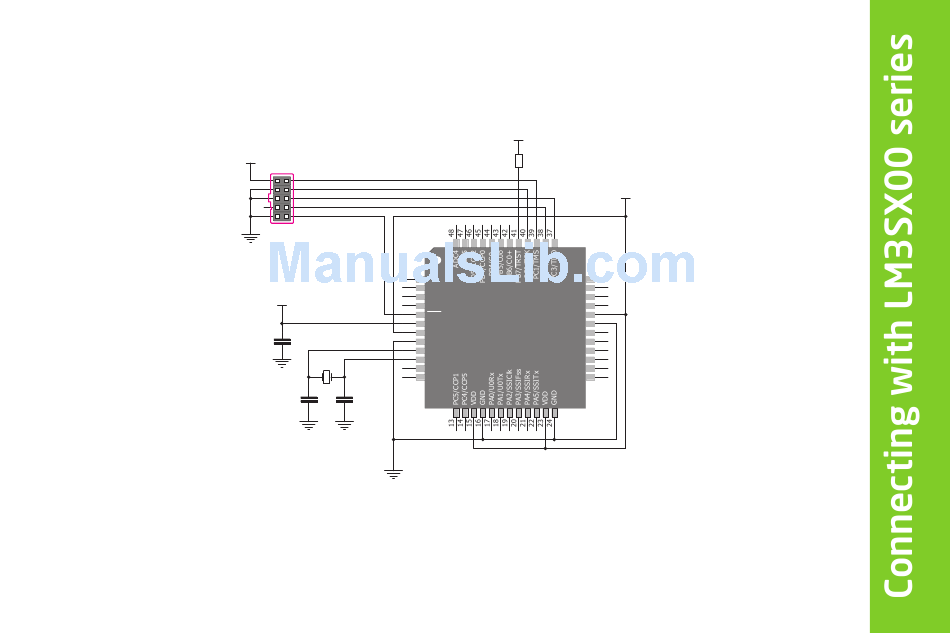

Figure 6-1: Connection schematics for 48-pin LM3S817 MCU via 2x5 male header
VCC-3.3V
R1
100K
PC1/TMS
1
PE1
ADC0
2
PE0
ADC1
3
PB3/Fault
ADC2
4
ADC3 PB2
5
RST VDD
6
LM3S817
LDO GND
7
VDD PB1/PWM3
8
GND PB0/PWM2
9
OSC0 PD3/U1Tx
10
OSC1
PD2/U1Rx
11
PC7/CCP4 PD1/PWM1
12
PC6 PD0/PWM0
Page 15
