Summary of Contents for ProBoat RAGAZZA PRB07003

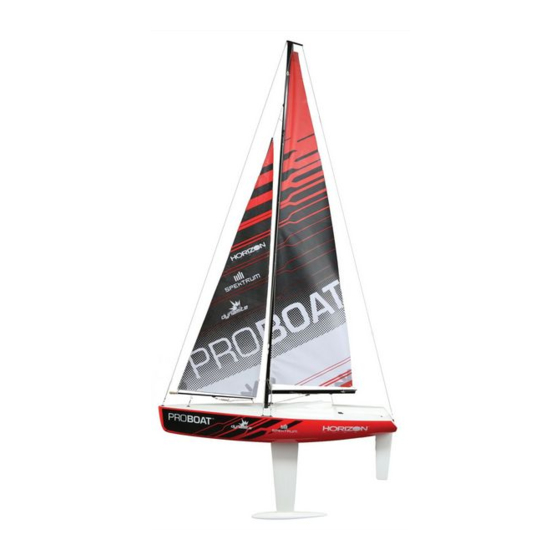

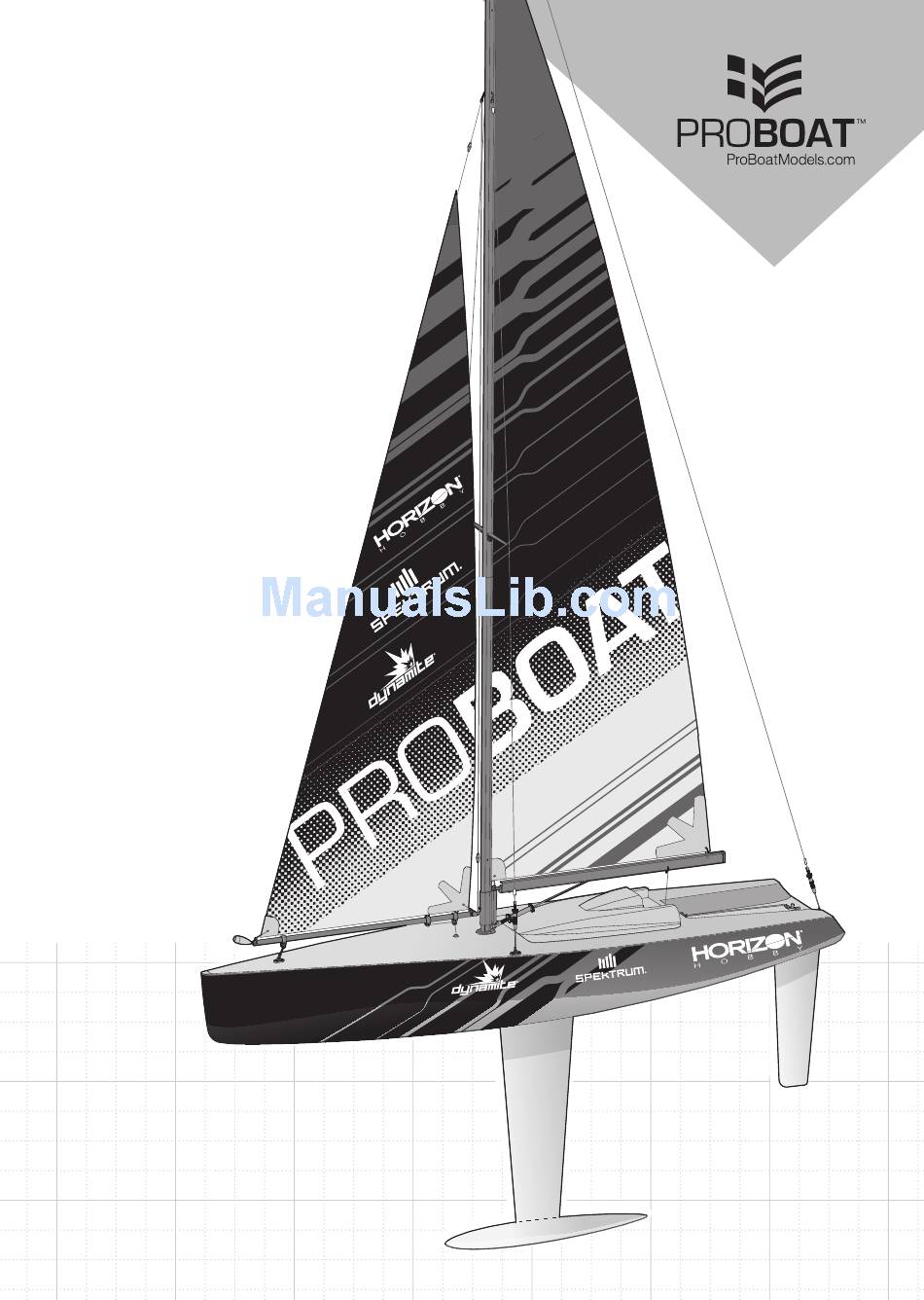

- Page 1 PRB07003 Ragazza ™ 1 - METER READY - TO - RUN SAILBOAT Owners Manual Bedienungsanleitung Manuel de l’utilisateur Manuale dell’utente...
-
Page 2: Water-Resistant Boat With Waterproof Electronics
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
Wet Conditions Maintenance NOTICE: Never use a pressure washer to clean your boat. • Drain any water that has collected in the hull by removing the • Use an air compressor or a can of compressed air to dry the drain plug or canopy and tilting the boat in the appropriate boat and help remove any water that may have gotten into small direction to drain the water. -
Page 4: Transmitter Controls
Transmitter Controls Antenna LEDs The transmitter antenna Transmitter battery level bends at the hinge (A) and indicators: Green (good) or red (replace). only bends to the left side of the transmitter. The antenna cannot point to the right or Steering Rate back of the transmitter. -
Page 5: Failsafe
Failsafe If the receiver is powered on before powering on the transmitter, the In the unlikely event that the radio link is lost during use, the receiver receiver will enter FAILSAFE mode. When the transmitter is powered will drive the servos to their pre-programmed failsafe positions on, normal control is resumed. -
Page 6: Mast And Sail Assembly
Mast and Sail Assembly 1. Slide the mast sections together on the wood block and secure the mast using 2 screws (Bag C). 2. Install the two spreaders on the right and left sides of the mast using a screw, nut (Bag B), Phillips screwdriver and 4mm nut driver. -
Page 7: Lines And Winch Operation
13. To connect the front boom to the hull, lightly mark the location of the front fitting on the boom. Remove the nuts and bolts from the front fitting and insert the upper ring of the front boom swivel. Carefully install and tighten the nuts and bolts in the fitting to secure the fitting on the boom at the previously marked location. -
Page 8: Getting Started
CAUTION: Never operate your boat in extreme temperatures or turbulent water. CAUTION: Never attempt to retrieve a downed boat by swimming. If you need to retrieve your boat from the water, use fishing equipment or another boat. NOTICE: Do not turn off the transmitter first or the receiver may pick up stray signals and run out of control. Getting Started 1. -
Page 9: Adjusting Sails
Adjusting Sails Adjust the winch lines so the lines are JUST taut when the sails are retracted and the sails do not pass a 60 degree angle to the hull After you have centered the sails and the rudder, adjust the sails for when the sails are extended. -
Page 10: Maintenance And Repair
Maintenance and Repair When parts are not repairable, see the Replacement Parts List to order by item number. Refer to the list at the end of this manual for all replacement and optional parts. Apply CA (cyanoacrylate adhesive) to the end of a line to prevent fraying. Troubleshooting Guide Problem Possible Cause... -
Page 11: Limited Warranty
LIMITED WARRANTY What This Warranty Covers please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the Warranty and Service Contact Information section to speak with a Product product purchased (the "Product") will be free from defects in materials Support representative. -
Page 12: Warranty And Service Contact Information
WARRANTY AND SERVICE CONTACT INFORMATION Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair RequestForm/ Requests) www.quickbase.com/db/ 4105 Fieldstone Rd bghj7ey8c?a= Horizon Product Support United States of America GenNewRecord Champaign, Illinois, 61822 USA (Product Technical Assistance) 888-959-2306 sales@horizonhobby.com Sales... -
Page 13: Compliance Information For The European Union
EU Compliance Statement: Horizon Hobby, LLC Instructions for Disposal of WEEE by hereby declares that this product is in compliance with the Users in the European Union essential requirements and other relevant provisions of the R&TTE, EMC Directive, and LVD Directive. This product must not be disposed of with other waste. - Page 14 47053 Created: 05/2015 ©2015 Horizon Hobby, LLC Pro Boat, the Pro Boat logo, Ragazza, Dynamite, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC The Spektrum trademark is used with permission of Bachmann Industries, Inc. Patents pending. PRB07003...
