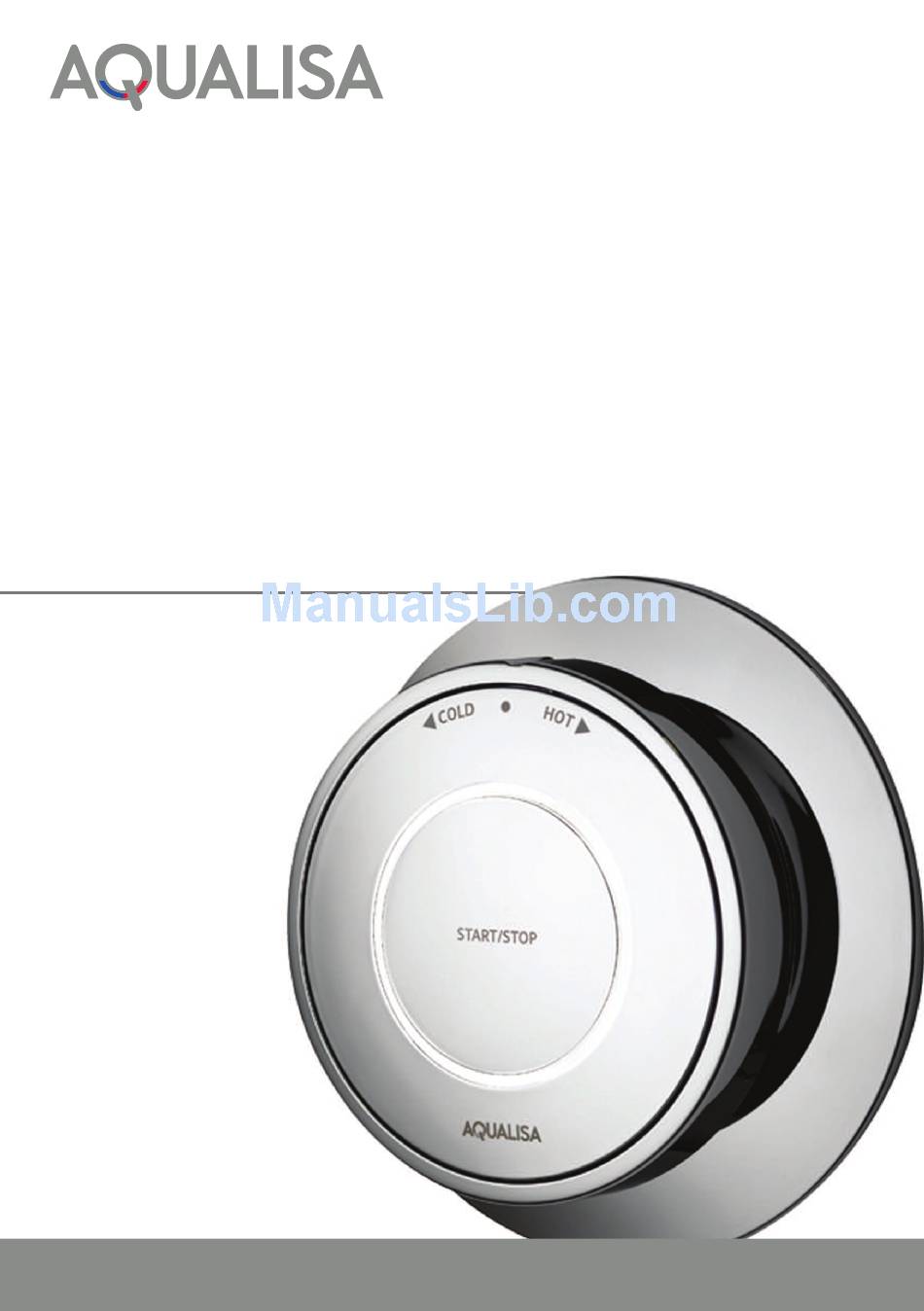

- Page 1 Rise Digital Concealed with adjustable height or fixed head Installation guide Rise Digital concealed with adjustable height or fixed head installation instructions Page 1...
- Page 2 Rise Digital concealed with adjustable height or fixed head Rise Digital concealed Rise Digital concealed Rise Digital concealed with adjustable head with ceiling fixed head with wall fixed head Rise Digital concealed with adjustable height or fixed head installation instructions Page 2...
- Page 3 Fixed head – Wall (Gravity pumped) Fixed head – Wall (HP/Combi) Literature not shown. Literature not shown. Components Components Adjustable (Gravity pumped) Adjustable (HP/Combi) Literature not shown. Literature not shown. Rise Digital concealed with adjustable height or fixed head installation instructions Page 3...
-
Page 4: Safety Information
The control must not be installed in situations where the ambient temperature is likely to fall below 5°C or rise above 40°C. We do not recommend the use of Rise Digital in steam therapy facilities. Rise Digital concealed with adjustable height or fixed head installation instructions Page 4... - Page 5 Installation of Digital Gravity Pumped processor (for gravity stored systems) The Rise Digital Gravity Pumped shower system is designed to operate up to a maximum static pressure of 100kPa ((1 bar)(10 metres head)(14.5psi)). Under no circumstances must the pumped processor be connected directly to the water main or in line with another booster pump.
-
Page 6: Pipe Sizing
Regulations prior to connection of the product. After installation Familiarise the end user with the Rise Digital operation and hand them this guide. Complete and post the guarantee card or register online at www.aqualisa.co.uk Rise Digital concealed with adjustable height or fixed head installation instructions Page 6... -
Page 7: Installation Instructions
Compression fittings should not be used on the inlet and outlet spigots and may affect the warranty if fitted. Rise Digital concealed with adjustable height or fixed head installation instructions Page 7... - Page 8 Flush out the hot and cold supply pipes. The maximum hot water inlet temperature must be no more than 65°C. Rise Digital concealed with adjustable height or fixed head installation instructions Page 8...
- Page 9 Contact our Customer Service Department to purchase a chrome (part no. 223121) retro-fit wall plate. Drill and prepare the four wall fixings for the controller using the fixings provided. Rise Digital concealed with adjustable height or fixed head installation instructions Page 9...
- Page 10 TO ENSURE OPTIMUM PERFORMANCE USE THE MINIMUM AMOUNT OF ELBOWS. TO MAXIMISE FLOW RATES WE RECOMMEND USING COPPER PIPE WITH THE MINIMUM AMOUNT OF ELBOWS. Rise Digital concealed with adjustable height or fixed head installation instructions Page 10...
-
Page 11: This Appliance Must Be Earthed
Digital remote control or Digital diverter. This can be accessed by carefully snapping and removing the entry pillar and connecting the cable as described above. Rise Digital concealed with adjustable height or fixed head installation instructions Page 11... - Page 12 WHEN MAKING ANY ADJUSTMENT TO THE PROCESSOR SETTINGS THE POWER MUST BE ISOLATED. Re-instate the electricity supply to the Digital processor. Press the ‘Start/stop’ button on the controller to turn the shower on. Rise Digital concealed with adjustable height or fixed head installation instructions Page 12...
- Page 13 Low flow as a factory default. To activate and programme these features please refer to the separate user guide for commissioning and user instructions on how to operate the shower. Rise Digital concealed with adjustable height or fixed head installation instructions Page 13...
- Page 14 Part No:701104 Issue 01 Mar 14 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
