Positioning
Your heater should be horizontally or vertically sited allowing sufficient
space for pipe connections and wiring, it should be screw fixed securely to
a firm base or wall.

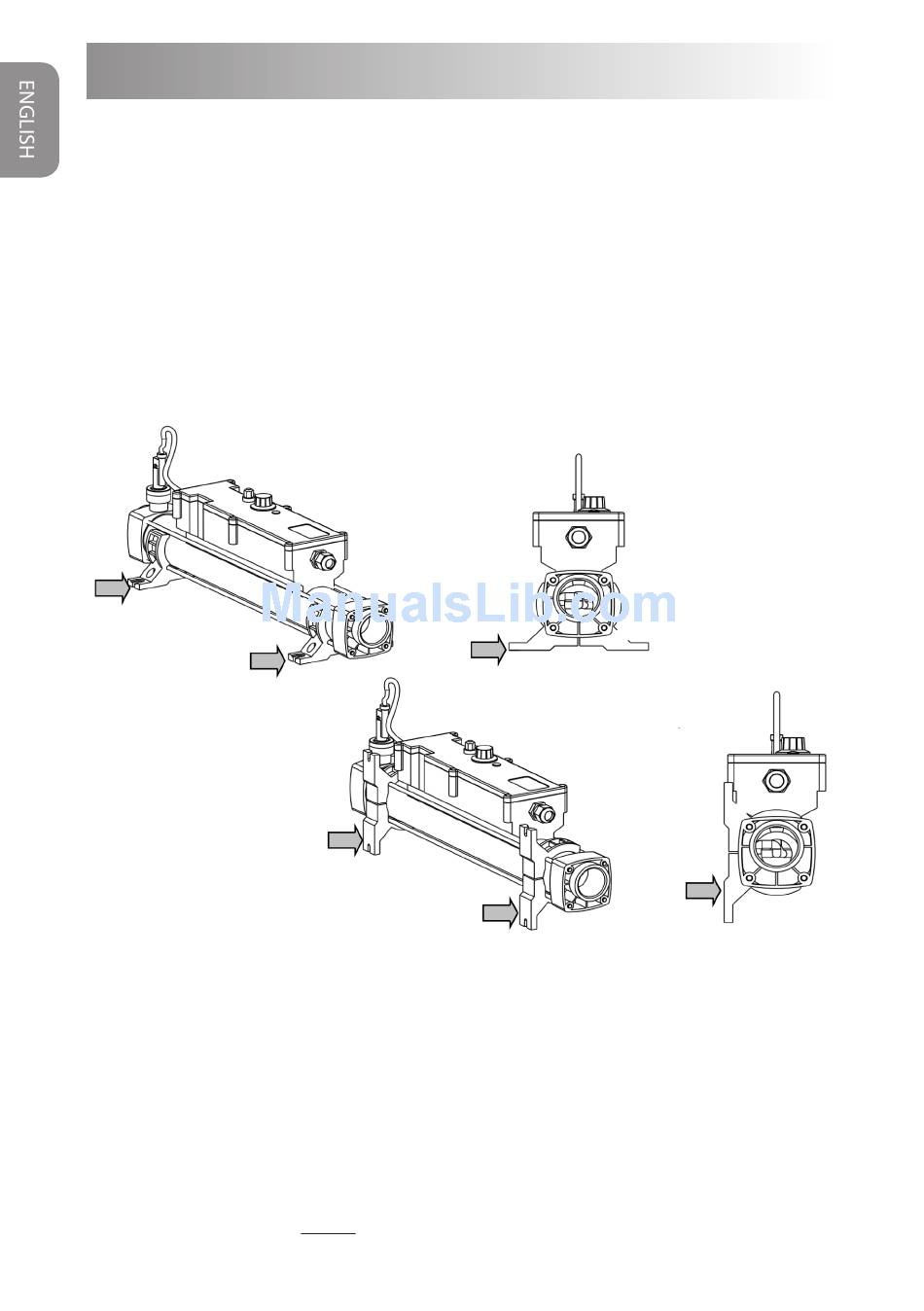

NOTE: See figure 2 for details of the foot arrangement when securing
to the wall or floor.
Floor mount 'Foot position'
Fig 2.
Factory set floor
mount 'Foot position'
To reset for wall
mount option,
undo the bolts and
re-assemble in the
vertical position as
shown.
Wall mount 'Foot position'
The heater should be installed at a low point in the filtration system.
It should be positioned downstream of (after) the filter and upstream of
(before) any dosing or other water treatment plant (see fig.3).
NOTE : If the flow direction is reversed (explained later in this
booklet) the heater must remain sited after the filter.
