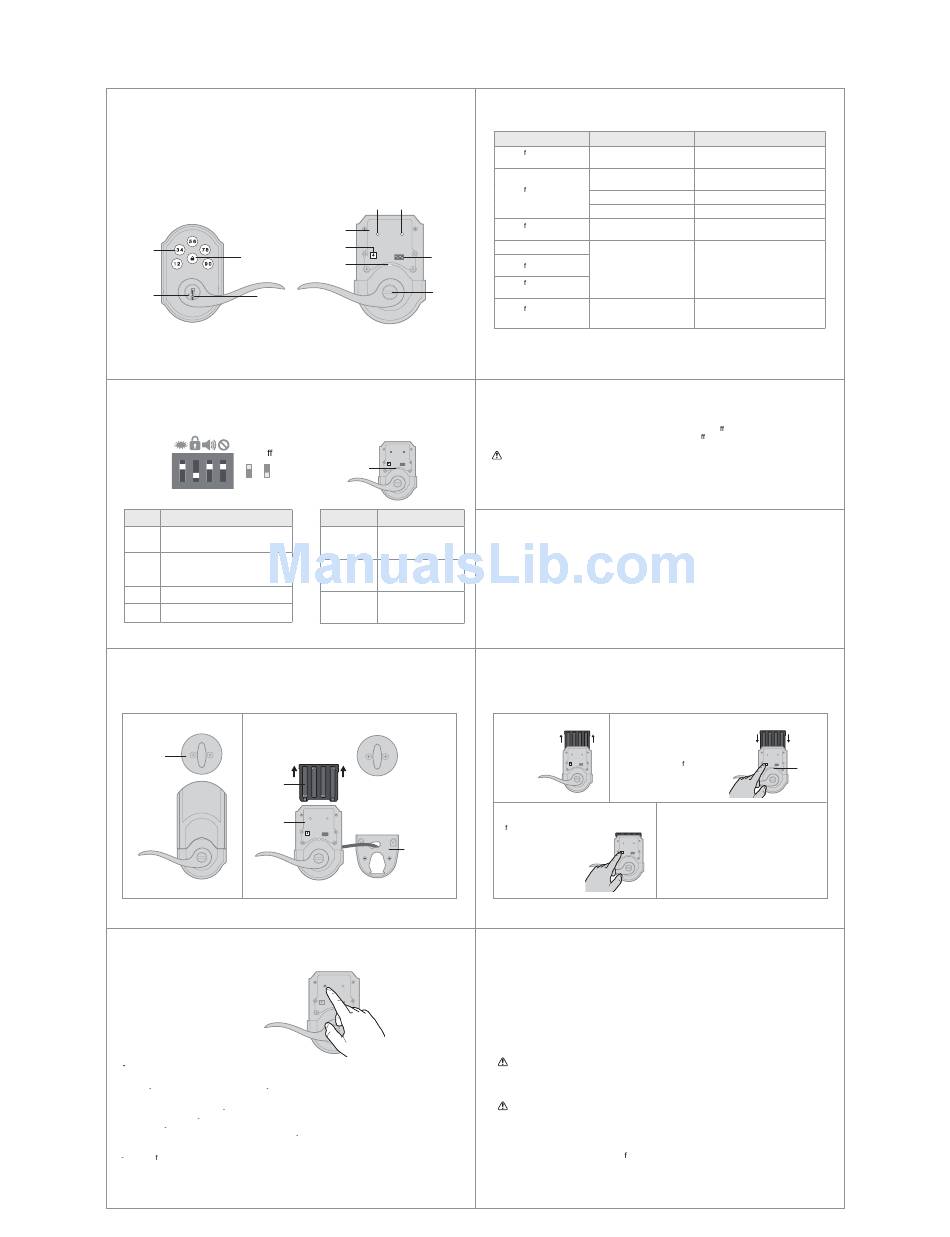

SmartCode at a Glance
Exterior
Keypad
Lock
button
SmartKey
Keyway
tool hole
Switches and Status LED Colours
Switches
On O
1 2 3 4
Switch Function
Door lock status LED blinks every 6
1
seconds
Lock automatically re-locks door 30
2 seconds after unlocking. Disabled if no
codes are programmed.
3 Audio
4 Not used.
Battery Replacement
If another lock is installed above the lever, remove the interior
assembly when battery replacement is required.
Lock
above
lever
Battery
pack
Interior
assembly
Network Information
Removing the lock from the network
Follow your smart home system's instructions
to remove the lock from the network. When
prompted by the system, press button A" on the
lock interior once.
Z Wave System Notes
This product is a security enabled Z-wave Plus product and must be used with a Security
Enabled Z Wave controller to be fully utilized. Z Wave is a "Wireless mesh network," and
results may vary based on building construction and communication path.
To assure interoperability, each Z Wave product must pass a stringent conformance test to
assure that it meets the Z Wave standard for complete compliance with all other devices and
controls. The Z Wave identity mark assures consumers, integrators, dealers and manufacturers
that their products will reliably perform with any other Z Wave device. And, regardless of the
vendor, always powered nodes may act as a repeater for Kwikset/Weiser/Baldwin products.
Z Wave Con iguration and Association Parameters are available on
the SmartCode 5 Lever page at www.kwikset.com.
Reference Guide
System Alerts
Interior (cover removed)
Button "A" Button "B"
Back
panel
Program
button
Switches
Status
LED
Turnpiece
Deleting a User Code
In order to delete a user code, you must override the code by adding a di erent user code in the same
position. For example, if you want to delete the third code, add a di erent user code in position three.
Status
LED
If you cannot remember the user code position, you may wish to perform a factory reset to delete all
codes associated with the lock.
Colour Lock Status

Troubleshooting

Green Unlocked
Amber Locked
Red Low battery
Factory Reset
A factory reset will delete all codes associated with the lock,
and it will remove it from your smart home system.
Mounting
plate
Important Safeguards
4 / 4
Alert Reason
Keypad lashes red 1 time Door jammed while
with 1 beep* attempting to lock.
Unsuccessful programming.
Keypad lashes red 3 times
with 3 beeps* One incorrect code entered.
No user code programmed.
Keypad lashes red 10
Low battery.
times with 10 beeps*
Lock beeps 2 times.
Keypad lashes red 3 times.
Programming timeout.
Keypad lashes red 6 times
with 6 beeps*.
Keypad lashes red 15 times Three incorrect codes entered
with 15 beeps* within one minute.
*Beeping sound will only be heard if switch #3 is on.
Test the old user code to make sure it can no longer unlock the door.
A complete Programming and Troubleshooting Guide is available on
the SmartCode 5 Lever page at www.weiserlock.com.
1 Remove 2 Press and HOLD the Program
battery pack. button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED lashes red.
3 Press the Program button 4 Pair the lock with your smart home
once more. When the LED system, and add user codes to your lock.
lashes green and you
hear one beep, the lock
has been reset.
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel
can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your system's settings.
WARNING: This Manufacturer advises that no lock can provide complete security
by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder's hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a quali ied locksmith or other security professional.
Solution
Manually re-lock door. If needed,
reposition strike.
Attempt programming procedure
again.
Re-enter code.
Program at least one user code.
Replace batteries.
Attempt programming procedure
again, making sure not to pause for
more than 5 seconds.
Re-enter code after 60-second keypad
lockout.
Status
LED
