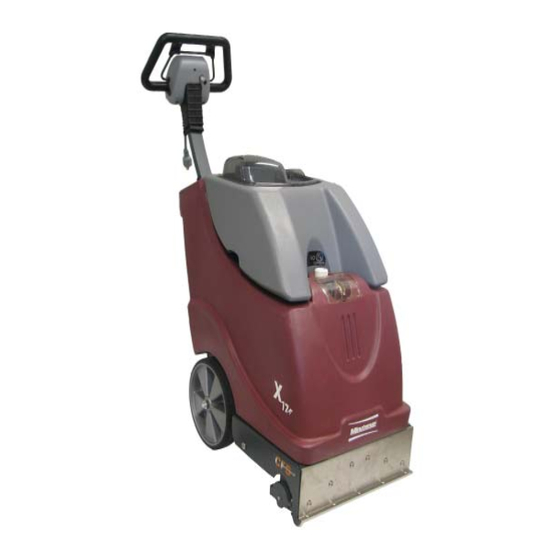

X17 ECO CFS Carpet Extractor
115V/230V with High Pressure
Minuteman®, Minuteman International, Inc.
A Member of the Hako Group
#988725UMCFS Rev. C 03/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X17 ECO CFS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minuteman X17 ECO CFS

Summary of Contents for Minuteman X17 ECO CFS

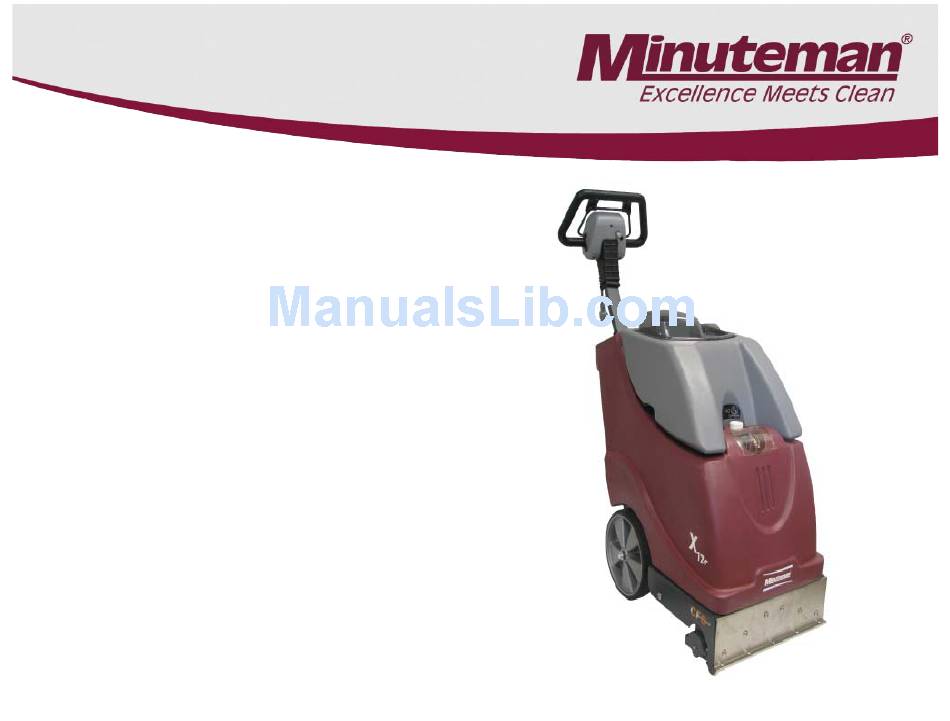

  • Page 1 User Manual X17 ECO CFS Carpet Extractor 115V/230V with High Pressure Minuteman®, Minuteman International, Inc. A Member of the Hako Group #988725UMCFS Rev. C 03/18...

  • Page 2: Technical Specifi Cations

    Technical Specifi cations Technical Specifi cations This manual is furnished with each new Minuteman X17 ECO CFS. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and effi ciency. For best results and minimal cost, please follow the general guidelines below: ·...
  • Page 3 Technical Specifi cations Model: X17 ECO CFS (Chemical Free Solution) with HP (High Pressure) Model No. X17115Z / X17115HPZ X17230Z/X17230HPZ Current Max. 12.5 Amps 7 Amps Voltage 115V 230V Vacuum motor power 1250W 1250W Brush motor power 100W 100W Pump motor power...

  • Page 4: Table Of Contents

    Brush Pressure Gauge ....................................20 Brush Pressure Adjustment Knob ................................20 Removable Recovery Tank ..................................21 High Pressure Spray System (HP) ................................21 Handle Adjustment ....................................22 Cord Relief ........................................22 Accessories ......................................23 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 5 Table of Contents Maintenance ....................................24 Operating Instructions ................................27 Chemical Free Solution Unit ..............................29 Troubleshooting CFS Unit ..................................30 Troubleshooting ..................................31 Warranty ....................................34 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 6: Safety Instructions

    • Do not put any object into openings. Do not use with any opening blocked; – X17230Z / X17230HPZ: Power Cord #748613CE keep free of dust, lint, hair, and anything that may reduce air fl ow. SAVE THESE INSTRUCTIONS X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 7: Unpacking Instructions

    Never connect this wire to other than the grounding pin of the attachment plug. Figure 1 Figure 2 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 8: Assembly

    A HANDLE ADJUSTMENT KNOB B SHOULDER BOLT C COVER D HANDLE ASSEMBLY E SCREW F CORD RELIEF X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 9 Assembly Handle Assembly Instructions X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 10 Assembly X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 11 Assembly X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 12 Assembly X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 13: Machine Overview

    K. VACUUM MOTOR INTAKE COVER L. VACUUM CONNECTION TUBE M. RECOVERY INLET N. RECOVERY TANK HANDLE P. VACUUM FLOAT SHUT-OFF Q. RECOVERY WINDOW EXTENSION HOSE R. VACUUM MOTOR GASKET X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 14: X17 Cfs Back & Bottom

    H. BRUSH PRESSURE ADJUSTMENT KNOB VAC SHOE K. BRUSH L. BRUSH END COVER M. SPRAY JETS (2) N. BRUSH MOTOR SOLUTION TANK DRAIN HOSE R. RECOVERY TANK DUMP HOSE X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 15: Handle/ Control Panel

    See page 20 for OAW connection details. Warning: When in Auxiliary Mode, confi rm Brush Switch is in the OFF position or damage to carpet may occur. X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 16: Circuit Breakers

    (X17115) 1.5 amp (X17230) 1.0 amp If any of the functions above are not operating, check if the circuit breaker buttons have tripped. Press to reset. X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 17: Solution Tank In-Line Filter

    5. Open the Shut-off Valve (C) by turning the handle 90 6. Insert fi lter back into original location. counterclockwise. Figure 2 Figure 3 Figure 1 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 18: Solution Tank Drain Hose

    fl oor drain. (See Figure 4) remaining in the solution tank can be seen through the clear drain hose. (See Figure 5) Figure 4 Figure 5 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 19: Brush Removal

    5. While holding the housing door closed, re-install fl at-head screw from the underside of the housing. Figure 2 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 20: Brush Pressure Gauge

    To INCREASE brush pressure: Turn the adjustment knob COUNTER-CLOCKWISE (in the ‘+’ direction) until the desired pressure range is achieved. Figure 3 Figure 4 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 21: Removable Recovery Tank

    The combination of the HP Spray System and ane the spray nozzles create the 100psi. 100psi Pump: 829757-1HP HP Spray Nozzle: 833143 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 22: Handle Adjustment

    Handle Adjustment Knob (A) and rotating the handle to the shown in fi gure 2. desired position. Figure 1 Figure 2 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 23: Accessories

    • 828924 or 830750 - Hose assemblies for non-motorized tools. Does not require QC coupler (Item G) • 831019 - Pump-Out Hose Figure 2 • 17603 - Vac Out Hose X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 24: Maintenance

    2. Removable recovery tank should be rinsed clean and drained using dump hose. Tank does not need to be removed. Wipe off any debris from O-ring under dump hose cap. X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 25 1. Have a qualifi ed service technician check the vacuum 4. Rinse off the Dome Lid Filter. motor carbon motor brushes once a year or after every 500 operating hours. X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 26: Cord Storage

    • Do not handle plug or appliance with wet hands. • This equipment should be stored indoors and not exposed to rain. Decal 715061 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 27: Operating Instructions

    fi lling the X17 CFS solution tank (Ref. A). See Decal 715474 below. Adding chemicals or detergents will prematurely reduce the life of the CFS system. Decal 715474 Decal 17262197 Figure 1 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 28 During the cleaning cycle, care should be taken not to allow foam to build up in the recovery tank. If this should happen, Figure 1 the machine should be turned off . Defoamer order #910543 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 29: Chemical Free Solution Unit

    The alignment marks on the head and cartridge should align when correctly installed. (See Fig. 12) 5. Restore power to the machine, and resume use. Fig. 10 Fig. 11 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 30: Troubleshooting Cfs Unit

    If error persists, contact manufacturer for Red (solid) incorrectly. support. Yellow (fl ashing) Ozone time-out. Fix leak and cycle power. Water leak. Device shuts off . Red (fl ashing) X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 31: Troubleshooting

    Do not clean out the hole in The spray jets may be clogged. the jet with a pin or wire. This may cause permanent damage. X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 32 Motor carbon brush may be warn. Contact a qualifi ed service technician. Switch is in OFF (O) posi on. Flip switch to ON (I) posi on. X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 33 X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.

  • Page 34: Warranty

    Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair stations.
  • Page 35 **Travel, 2 hours max Stand-alone Battery One year Chargers: Replacement Parts: Ninety days Batteries: 0-3 months full replacement, 4-12 months pro-rate Polypropylene 12yr warranty, no additional labor Plastic Tanks: X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18 © 2015 Minuteman International, Inc.
  • Page 36 Excellence Meets Clean Minuteman International, Inc. · 14N845 U.S. Route 20 · Pingree Grove, Illinois 60140 USA Phone 800-323-9420 www.minutemanintl.com A Member of the Hako Group 988725UMCFS Rev C 03/18...
